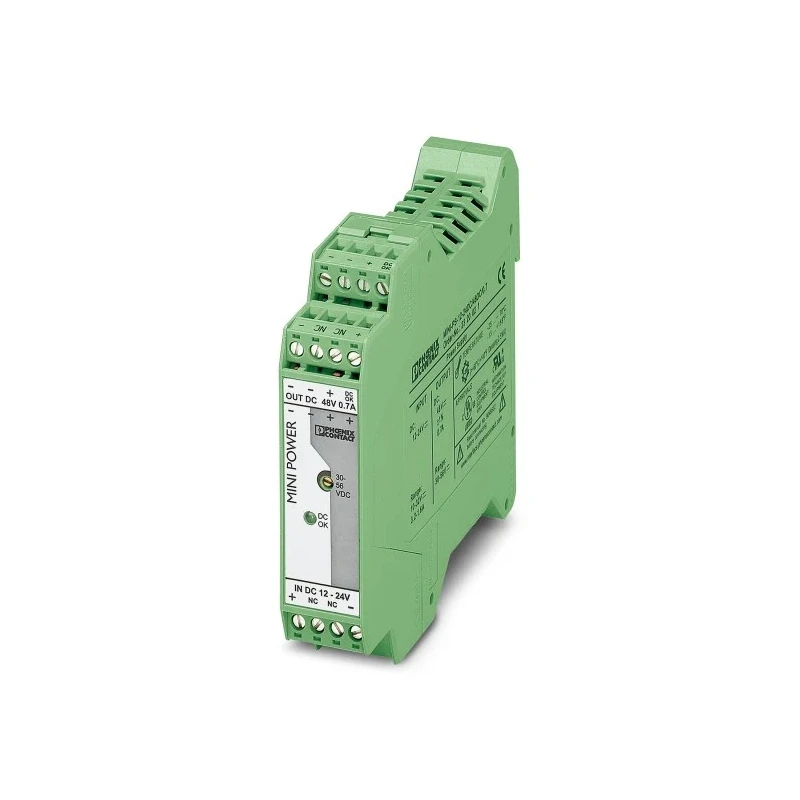

Phoenix Contact MINI-PS-12-24DC/48DC/0.7 DC/DC Converter DIN Rail Mount 12V-32V Input 48V Output 33.6W 2320021

Phoenix Contact 2320021 MINI-PS-12-24DC/48DC/0.7 DC/DC Converter is a high-performance isolated DC-DC converter designed for efficient voltage conversion in demanding industrial applications. It accepts a wide input voltage range from 12 V to 32 V DC and provides a regulated 48 V DC output at 700 mA current, delivering up to 33.6 W power.

The device is suitable for telecommunications, industrial control systems, and consumer electronics where safety and reliability are paramount. Electrical isolation of 1.5 kV DC between input and output ensures protection against electrical faults and interference.

This converter supports DIN rail mounting, enabling quick installation within electrical panels and control cabinets with limited space. Its robust operation across temperatures from -25°C to +70°C makes it suitable for harsh environments.

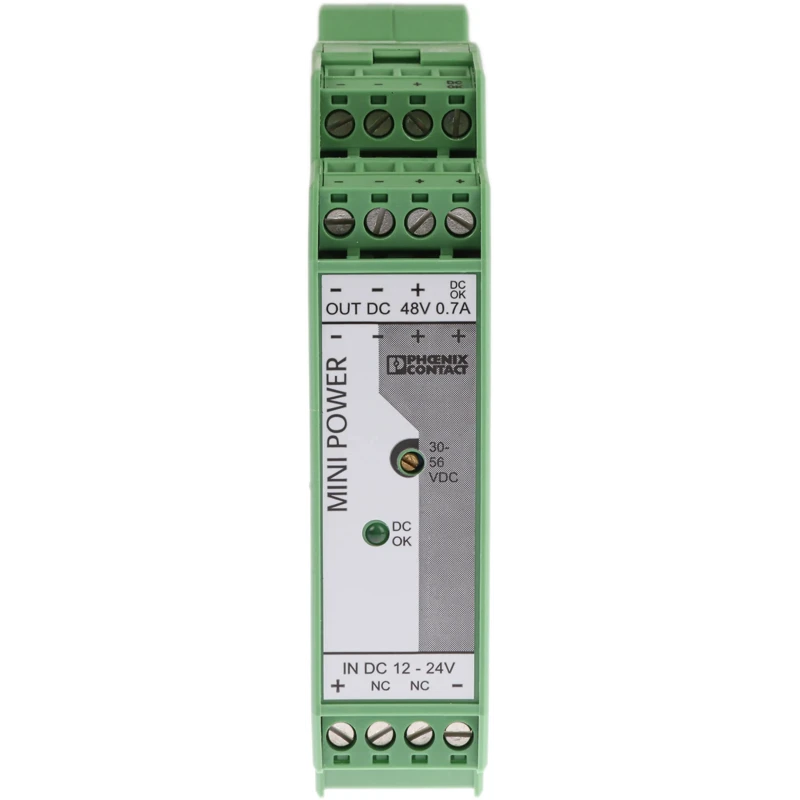

The output voltage adjustment range of 30 to 56 V allows fine-tuning for various industrial equipment. Ripple and noise are maintained at a low 40 mV peak-to-peak to safeguard sensitive electronics. The unit also includes an LED voltage indicator for easy status verification and troubleshooting.

Highly efficient at 87%, the MINI-PS series helps reduce energy consumption and heat generation. Its compliance with UL, cUL, EAC, and cULus standards guarantees a reliable and certified power solution.

Wide input voltage range of 12 - 32 V DC for versatility. Isolated output with 1.5 kV DC isolation voltage enhances safety. DIN rail mounting supports space-efficient installation. High conversion efficiency of 87% improves energy use.

Output voltage adjustable from 30 V to 56 V for application flexibility. Low ripple and noise at 40 mV Pk-Pk protects connected devices. Operating temperature range from -25°C to +70°C suits harsh conditions. LED voltage display for quick operational status monitoring.

UL, cUL, EAC, and cULus approved for industrial safety compliance.

This Phoenix Contact DC/DC converter is ideal for use in telecommunications, industrial automation, laboratory instruments, and other applications requiring stable and isolated DC power. It ensures secure and reliable power delivery even in safety-critical environments such as railway or medical equipment.
