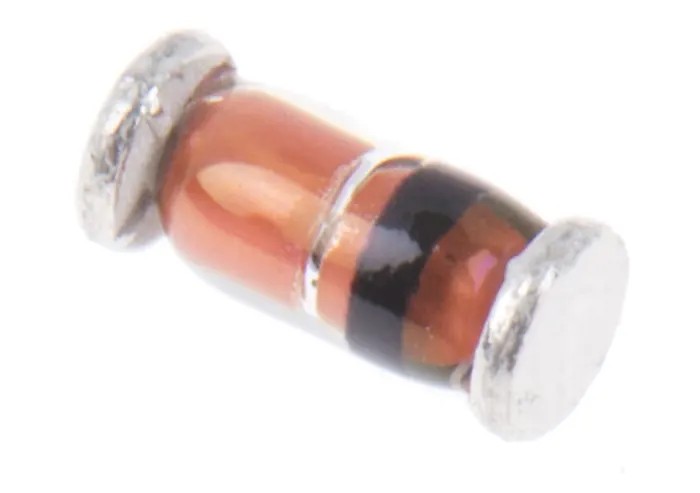

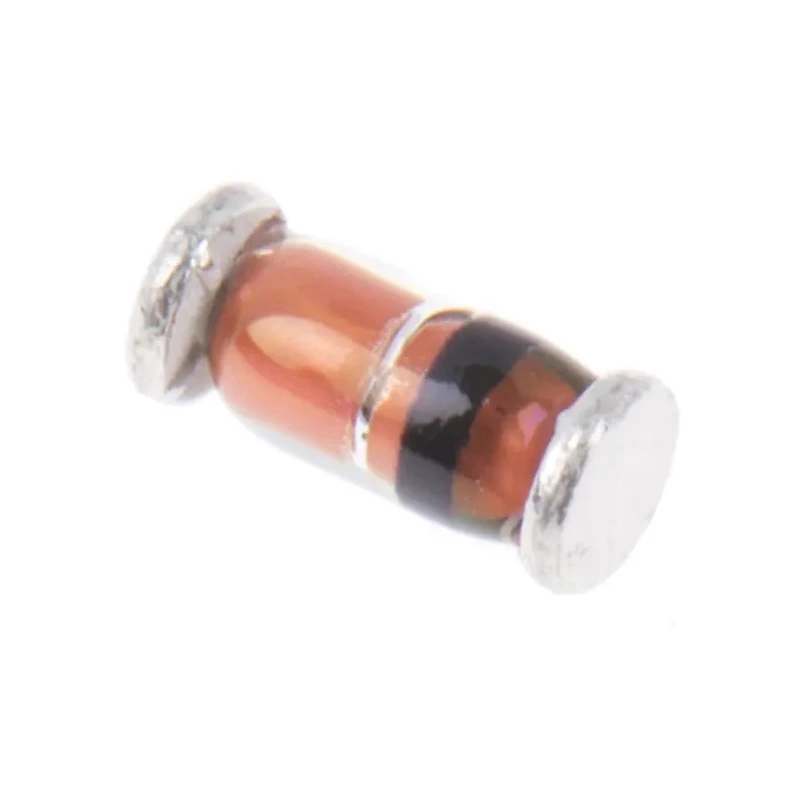

Nexperia Zener Diode Single 15 V 500 mW 5% Tolerance Surface Mount 2-Pin MiniMELF BZV55-C15,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Zener Diode Single 15 V 500 mW 5% Tolerance Surface Mount 2-Pin MiniMELF BZV55-C15,115

Name: Nexperia Zener Diode Single 15 V 500 mW 5% Tolerance Surface Mount 2-Pin MiniMELF BZV55-C15,115
Brand: Nexperia
SKU: 123501
Price: 0.09 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.6mm
Length	3.7mm
Model	BZV55-C15,115
Mount Type	Surface
Series	BZV55
Maximum Operating Temperature	200°C
Package Type	MiniMELF
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	50nA
Nominal Zener Voltage Vz	15V
Zener Type	Voltage Regulator
Maximum Zener Impedance	30Ω
Typical Voltage Temperature Coefficient	11.4mV/°C
15V Zener diode,BZV55C15 400mWBrand	NXP

Key Features

The diode is surface mount type with a 2-pin MiniMELF package.
It has a Zener voltage tolerance of ±5%, suitable for voltage regulation applications.
Rated for a maximum power dissipation of 500 mW and test current of 5 mA.
Operates reliably between temperatures of -65°C to 200°C.
The device features a maximum Zener impedance of 30 Ω and a maximum reverse leakage current of 50 nA.
Compact dimensions with a length of 3.7 mm and height of 1.6 mm.
Typical voltage temperature coefficient is 11.4 mV/°C.
Manufactured in China to the BZV55 series standard.

Product Description

The Nexperia BZV55-C15,115 Zener diode is a high-performance component specifically designed for precise voltage regulation and protection in electronic circuits.

This single Zener diode features a nominal Zener voltage of 15 V with a 5% tolerance, making it ideal for applications requiring stable voltage reference under fluctuating conditions.

Its surface mount MiniMELF package with 2 pins facilitates easy and compact PCB assembly, suitable for automated manufacturing processes.

The device manages a maximum power dissipation of 500 mW and is tested at a current of 5 mA to ensure performance stability. It also offers a low maximum reverse leakage and impedance, supporting efficient regulation and minimal power loss.

Operating temperature range from -65°C to 200°C allows its use in demanding industrial, automotive, and consumer electronics applications where thermal reliability is critical. The diode installation supports surface mount technology with MiniMELF packaging.

Provides stable voltage regulation with ±5% tolerance on the 15 V nominal voltage. Compact form factor, measuring 3.7 mm in length and 1.6 mm in height. Low reverse leakage current preserves circuit efficiency. Typical temperature coefficient of 11.4 mV per degree Celsius ensures minimal voltage variation with temperature changes.

Max impedance of 30 Ω maintains circuit integrity and signal stability. This component is widely used in industrial electronics, power supplies, voltage regulators, and automotive electronics, where voltage stabilization is essential.
