Murata Power Solutions DC/DC Converter Dual Output 15 V dc, -15 V dc, 2W, 67mA Output Current, 4.5-5.5 V dc Input NMH0515DC

Murata Power Solutions NMH0515DC is a high-efficiency, dual output DC/DC converter delivering 2 watts of unregulated power. Designed for industrial and electronic component applications, it offers dual outputs of +15 V dc and -15 V dc with a maximum output current of 67 mA. Its input voltage range spans from 4.5 V dc to 5.5 V dc, making it compatible with various power supplies. The converter boasts high input/output isolation of 1 kV dc, enhancing safety and reducing electrical noise interference.

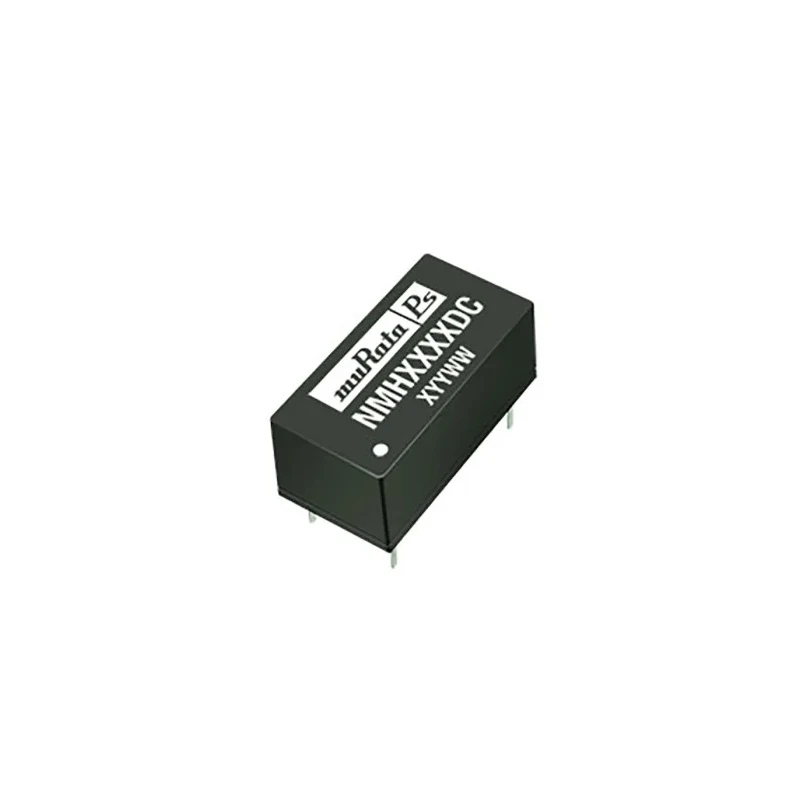

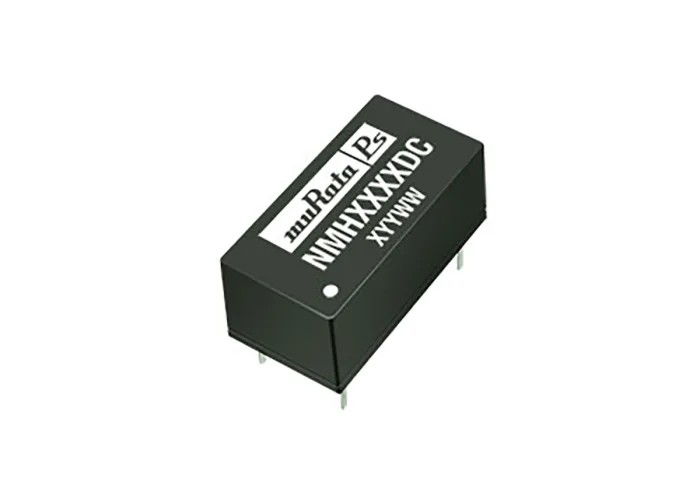

The NMH0515DC is constructed with an internal surface-mount technology (SMT) assembly housed in a 14-pin DIP plastic package suitable for through-hole mounting. It features no need for external components, simplifying design implementation. With a high efficiency of approximately 84%, this converter operates without output derating across the full specified temperature range.

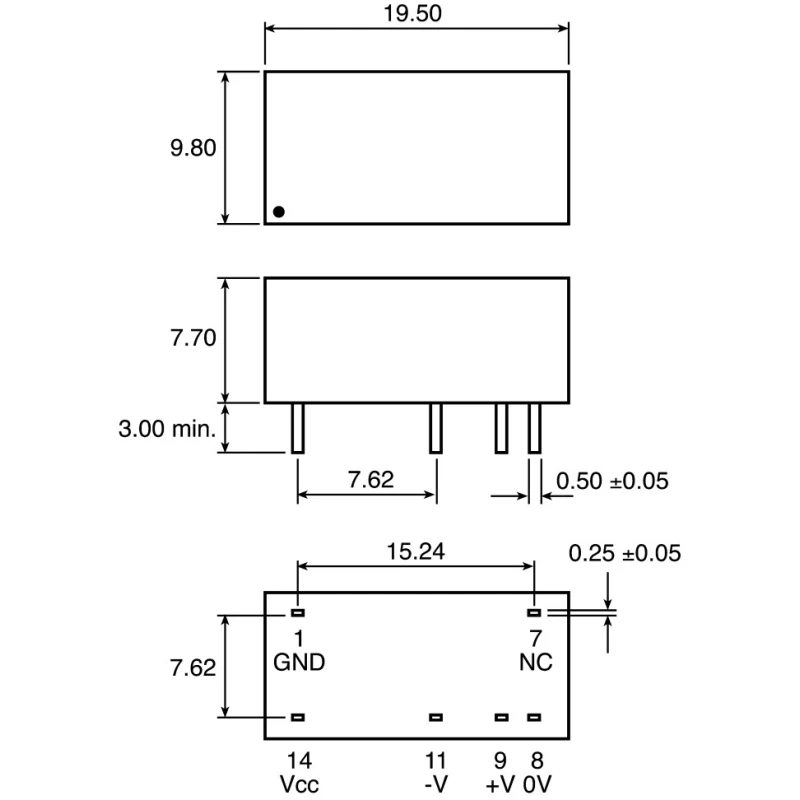

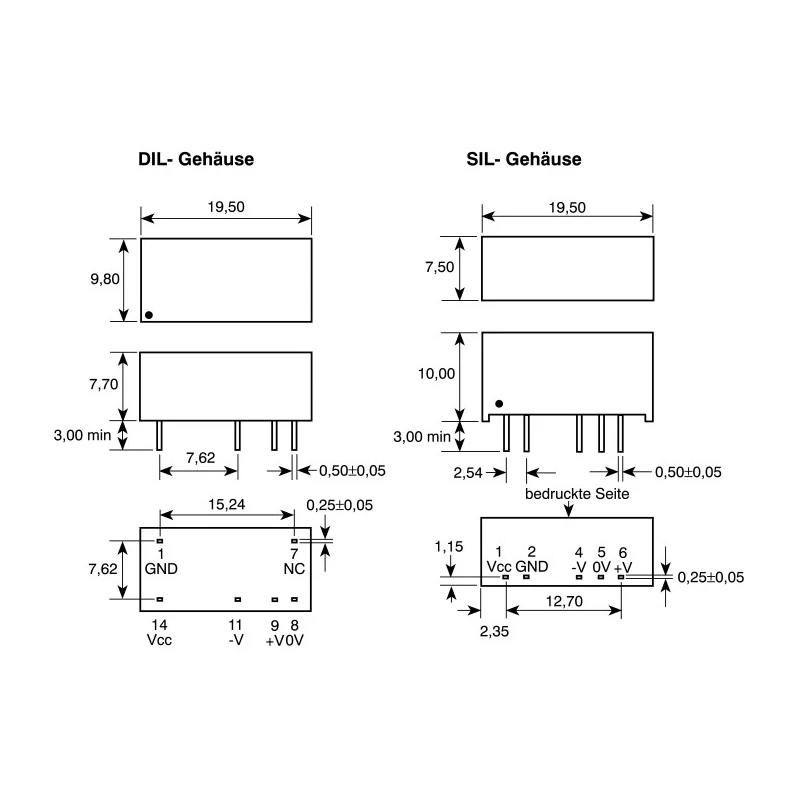

Its compact size, measuring 19.5 mm in length and width, and 7.7 mm in depth, allows efficient PCB space utilization. The package material complies with UL 94V-0 flammability rating, further ensuring safety in electrical equipment. The module meets UL 60950 and RoHS standards, certifying compliance with safety and environmental regulations.

Designed to operate reliably between -40°C and 85°C, this converter suits diverse industrial, manufacturing, laboratory, and electronic equipment applications. It efficiently converts low DC input voltages to isolated dual outputs, supporting signal isolation and noise reduction needs.

The NMH0515DC DC/DC converter is ideal for embedded systems, communication equipment, instrumentation, and other environments where stable dual voltage power is critical. Its through-hole DIP format facilitates easy prototyping and assembly in industrial electronic designs.

Provides dual outputs of 15 V dc and -15 V dc for versatile power needs. Operates with input voltage range from 4.5 V dc to 5.5 V dc for flexible supply use. Delivers a maximum output current of 67 mA suitable for low-power electronics.

Features through-hole mounting with 14-pin DIP plastic package. Offers high isolation voltage of 1kV dc ensuring safety and noise immunity. Runs efficiently at approximately 84% with no output derating needed. Compact dimensions of 19.5mm length, 19.5mm width, and 7.7mm depth optimize PCB space.

Compliance to UL 60950 and RoHS standards guarantees safety and environmental compliance. Wide operating temperature range from -40°C to 85°C for industrial reliability.
