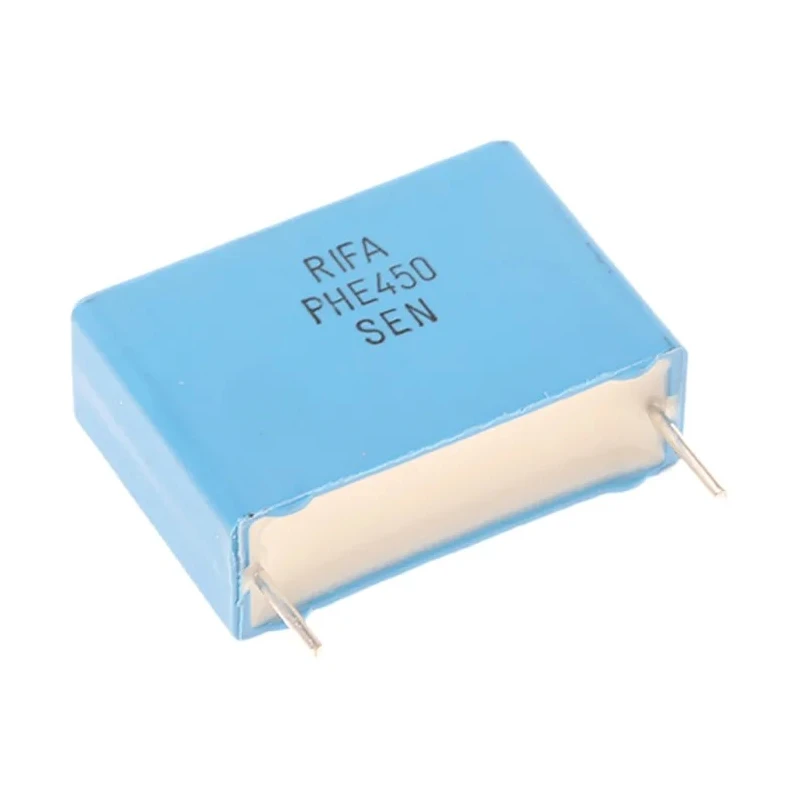

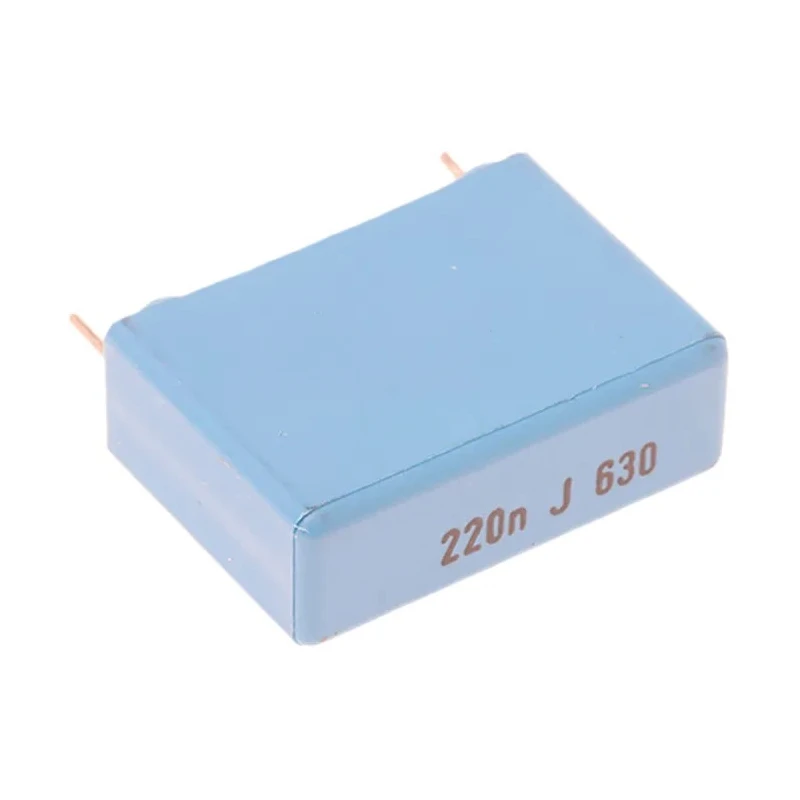

KEMET PHE450 Film Capacitor 220nF ±5% 630V dc 180V ac Radial Through Hole PHE450
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 18.5mm |
| Length | 26mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
| KEMET PHE450 Film Capacitor, ±5 %, 220 nF 400 V dc 180V ac, Through HoleBrand | KEMET |
Key Features
- Rated DC voltage of 630V with AC voltage rating of 180V ac.
- Capacitance tolerance of ±5% ensuring precise circuit performance.
- Encapsulated in self-extinguishing resin material meeting UL 94 V-0 standards.
- Lead pitch of 22.5mm with radially oriented leads for easy through hole mounting.
- Operating temperature range from -55°C to 105°C suitable for industrial environments.
- Constructed from double metallized polypropylene films for high reliability and pulse handling.
- Typical applications include snubber and pulse circuits in power supplies and televisions.
- Compliant with RoHS environmental standards.
Product Description
KEMET PHE450 Film Capacitor model PHE450 is a high-quality metallized polypropylene film capacitor with a nominal capacitance of 220nF, ±5% tolerance, and rated for 630V dc and 180V ac operation. It features a radial lead, through hole mount type designed to withstand high current stresses typically found in snubber, pulse, and protection circuits in electronic equipment such as switch mode power supplies and television deflection circuits.
This capacitor is encapsulated in a self-extinguishing resin housing complying with UL 94 V-0 fire safety standards, providing enhanced protection and durability in demanding industrial and commercial applications. The lead pitch is 22.5mm with radial leads of 0.8mm diameter and 6mm length enabling reliable PCB mounting using tape and reel packaging.
It operates reliably within a temperature range of -55°C to 105°C, making it suitable for harsh environmental conditions. The dissipation factor of 0.0003% ensures minimal energy loss during operation. The design and materials used ensure excellent pulse handling for snubber circuits and other high-stress applications.
Rated DC voltage is 630V dc with 180V ac voltage rating. Capacitance value is 220nF with ±5% tolerance. Encapsulated in self-extinguishing UL94 V0 resin for safety. Radial through hole lead type with 22.5mm lead spacing.
Operating temperature from -55°C to +105°C. Suitable for snubber and pulse circuits in industrial electronics. RoHS compliant for environmental safety.
This capacitor is ideal for industrial, commercial, and electronics manufacturing applications requiring reliable, high-performance Film Capacitors. Explore the comprehensive KEMET range on EnvMart for quality components that meet stringent safety and performance standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 220nF with a tolerance of ±5%.
It has a rated DC voltage of 630V.
The rated AC voltage for this capacitor is 180V.
This capacitor operates reliably within a temperature range of -55°C to 105°C.
It features a through hole mount type with radial leads.
The dimensions are 26mm in length, 9mm in width, and 18.5mm in height.
The lead pitch for this model is 22.5mm.
It is constructed from double metallized polypropylene films and encapsulated in a self-extinguishing resin material.
The dissipation factor is 0.0003%, ensuring minimal energy loss during operation.
This capacitor is suitable for snubber and pulse circuits in power supplies and televisions.
Yes, it is compliant with RoHS environmental standards.
The terminal type is radial, with a lead diameter of 0.8mm and a lead length of 6mm.
