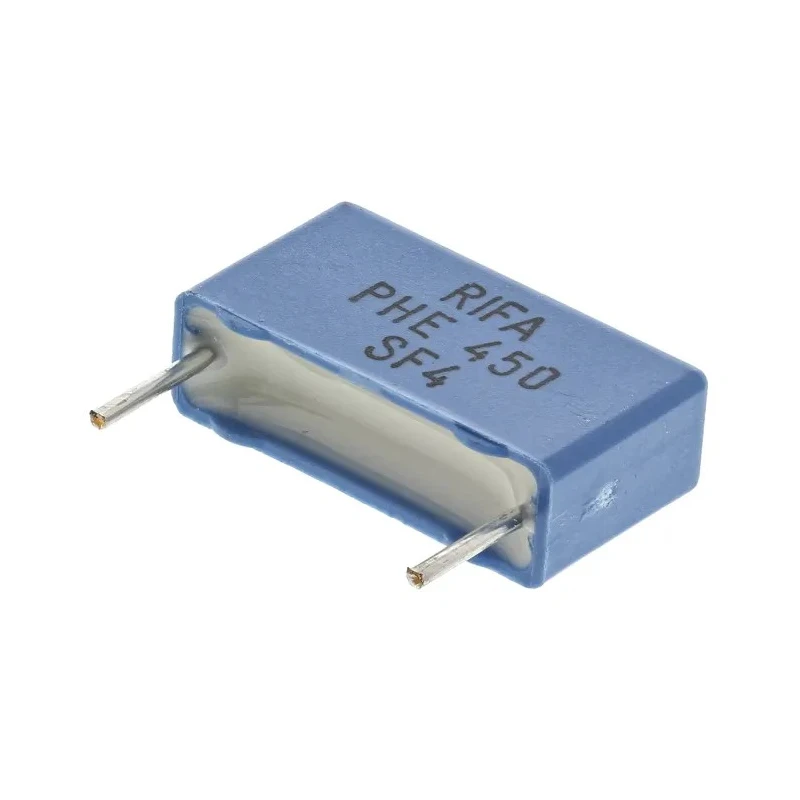

KEMET PHE450 Film Capacitor, ±5 % Tolerance, 22 nF, 630 V DC, 180 V AC, Through Hole Mount PHE450

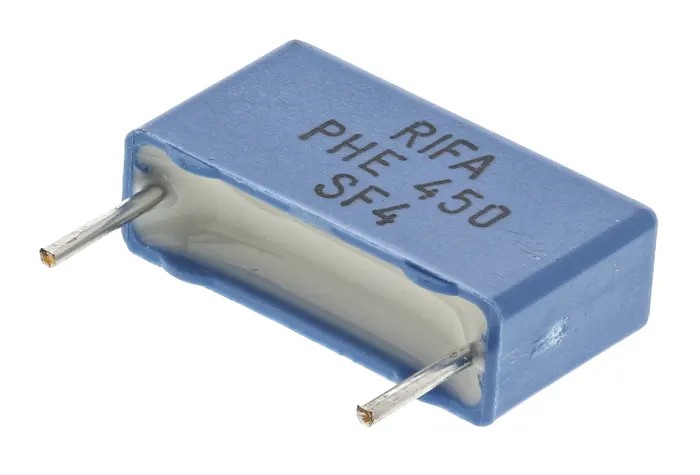

KEMET PHE450 Film Capacitor PHE450 is a high-performance metallized polypropylene film capacitor designed for through hole mounting applications requiring high reliability and pulse stress endurance.

This capacitor features a 22 nF capacitance with a precise ±5 % tolerance and is rated for a maximum DC voltage of 630 V and AC voltage of 180 V. It is encapsulated in a self-extinguishing resin that meets UL 94 V-0 requirements to ensure safety and durability in harsh environments.

With a lead pitch of 15 mm and radial terminal type, the capacitor provides easy integration into printed circuit boards, supported by radial leads measuring 6 mm in length and 0.8 mm in diameter.

Its operational temperature range from -55°C to 105°C makes it suitable for various industrial and consumer electronics applications, including protection circuits in switch mode power supplies, deflection circuits in televisions, and pulse/snubber circuits.

The capacitor's low dissipation factor of 0.0003% ensures energy-efficient operation, minimizing power losses. Its compact physical dimensions of 18 mm length, 5.5 mm width, and 10.5 mm height optimize space utilization in designs.

Employs double metallized polypropylene film for superior electrical characteristics. Encapsulated in fire-retardant resin compliant with UL 94 V-0 for enhanced safety. Ideal for high current stress applications such as power electronics and TV deflection circuits.

Radial lead design with 15 mm lead pitch and 6 mm lead length for standard through hole mounting. Wide operating temperature range from -55°C to 105°C for versatile use. RoHS compliant, ensuring environmental and regulatory standards compliance.

These capacitors are packaged in tape and reel to facilitate automated PCB assembly lines and ensure component protection during transportation.

Suitable for industrial, laboratory, automotive (non-automotive standard compliant), electronics manufacturing, and repair applications. This product supports designers and engineers in creating reliable and efficient electrical circuits.
