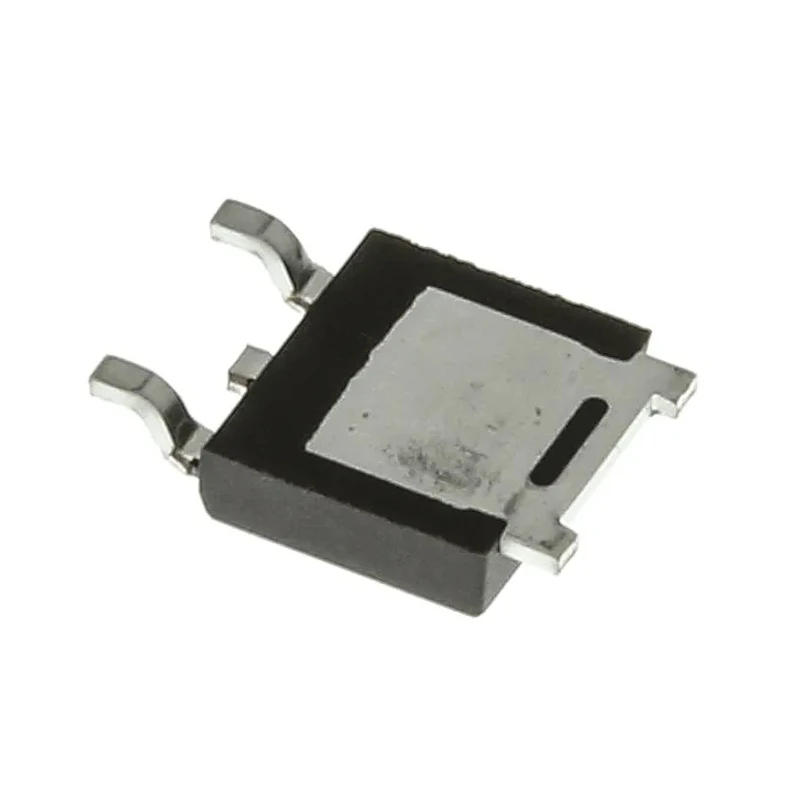

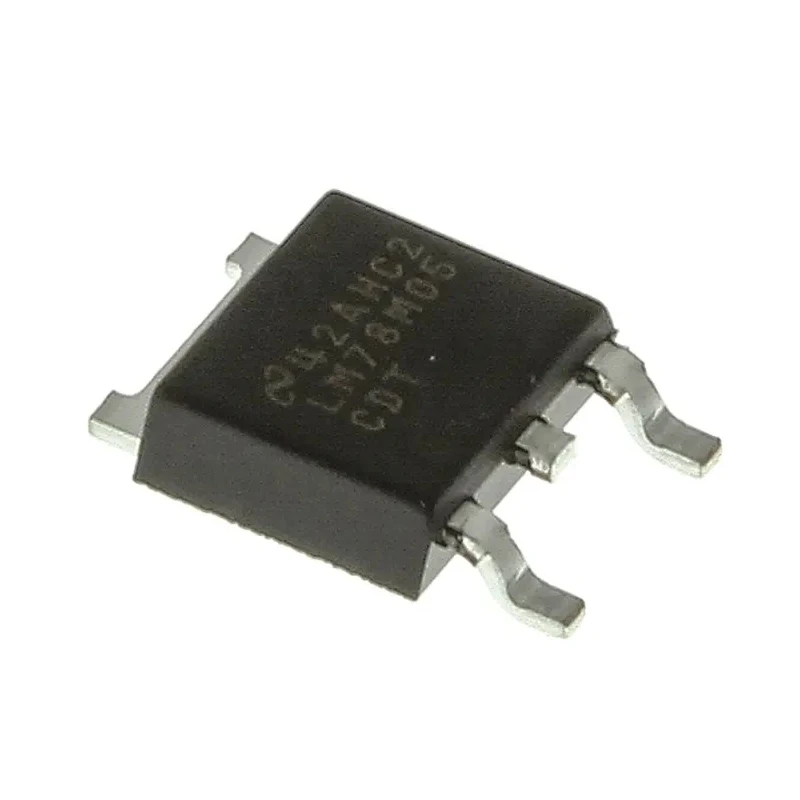

Texas Instruments Voltage Regulator LM78M05CDT/NOPB, 35V Maximum Input, 3-Pin TO-252 Surface Mount LM78Mxx Series
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments LM78M05CDT/NOPB, Voltage Regulator 35V TO-252 3-Pin |
| Brand | Texas Instruments |
| Height | 2.3mm |
| Length | 6.58mm |
| Model | LM78M05CDT/NOPB |
| Width | 6.1mm |
| Mount Type | Surface |
| Series | LM78Mxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-252 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 4mA |
| Minimum Input Voltage | 7.2V |
| Pin Count | 3 |
| Output current 1A | LM78xx Series |
| Output current 0.1A | LM78Lxx Series |
| Output current 0.5A | LM78Mxx Series |
Key Features
- Utilizes LM78Mxx series linear voltage regulation technology providing up to 0.5A current output.
- Includes internal thermal shutdown, current limiting, and output transistor safe-area compensation for device protection.
- Operates within a temperature range up to 125°C ensuring reliability in demanding environments.
- Positive polarity regulator in a compact TO-252 package suitable for surface mounting.
- Widely used in electronic industries for local on-card regulation, power supplies, and power distribution systems.
- No external components are required for standard fixed voltage operation.
- Supports input voltages from 7.2V to 35V, making it versatile for various power sources.
- Automatic internal protections enhance device robustness and longevity.
Product Description
Texas Instruments LM78M05CDT/NOPB is a high-performance positive voltage regulator designed for fixed voltage applications with a maximum input voltage of 35V.
Housed in a TO-252 package with 3 pins, this surface mount device offers a stable 5V output voltage with quiescent current of only 4mA, making it efficient for power-sensitive electronics.
The device belongs to the LM78Mxx series, which provides up to 0.5A of output current. It features internal protections such as thermal shutdown and current limiting along with output transistor safe-area compensation, ensuring reliable operation even in overload or fault conditions.
Typical applications include local on-card voltage regulation, power supplies, and power distribution in electronic devices used in industrial, laboratory, and commercial settings.
Its robust design supports operating temperatures up to 125°C and input voltages ranging from 7.2V minimum to a maximum of 35V, making it suitable for a wide range of power system environments.
Utilizes LM78Mxx series linear voltage regulation technology providing up to 0.5A current output. Includes internal thermal shutdown, current limiting, and output transistor safe-area compensation for device protection. Operates within a temperature range up to 125°C ensuring reliability in demanding environments.
Positive polarity regulator in a compact TO-252 package suitable for surface mounting. Widely used in electronic industries for local on-card regulation, power supplies, and power distribution systems. No external components are required for standard fixed voltage operation.
Supports input voltages from 7.2V to 35V, making it versatile for various power sources. Automatic internal protections enhance device robustness and longevity.
This Voltage Regulator is vital for ensuring consistent and safe voltage supply in various electronic circuits and systems. Explore more power management ICs and related semiconductor products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this voltage regulator is 35V.
This model provides up to 0.5A of output current.
It operates within a temperature range up to 125°C.
The LM78M05CDT/NOPB is housed in a TO-252 package suitable for surface mounting.
The quiescent current for this model is only 4mA.
No, it does not require external components for standard fixed voltage operation.
It is a positive polarity regulator.
It is widely used for local on-card regulation, power supplies, and power distribution systems in electronic devices.
The height of this voltage regulator is 2.3mm.
The minimum input voltage is 7.2V.
This voltage regulator has 3 pins.
It includes internal thermal shutdown, current limiting, and output transistor safe-area compensation for device protection.
