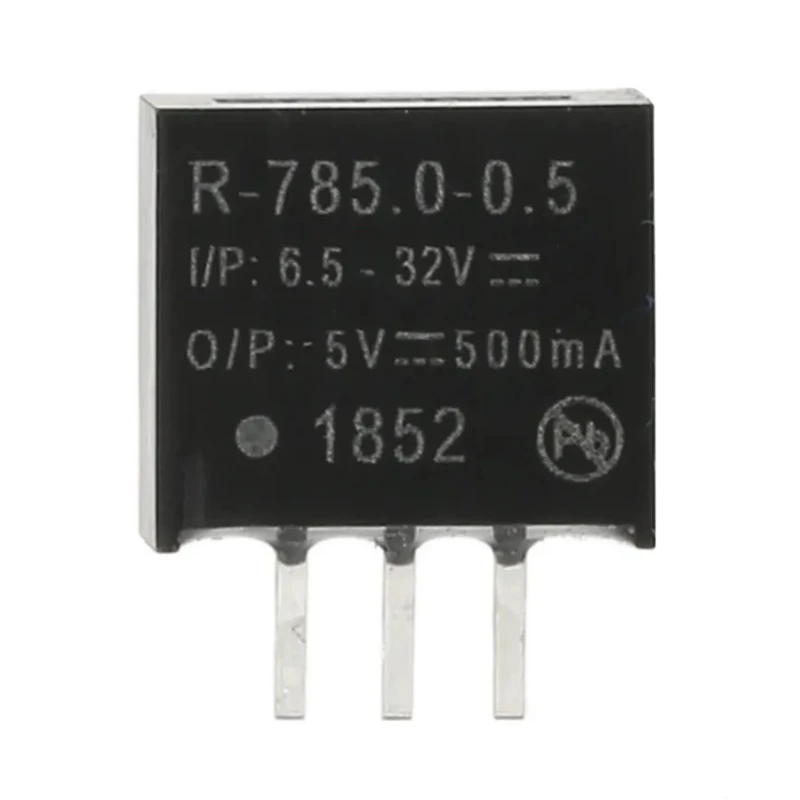

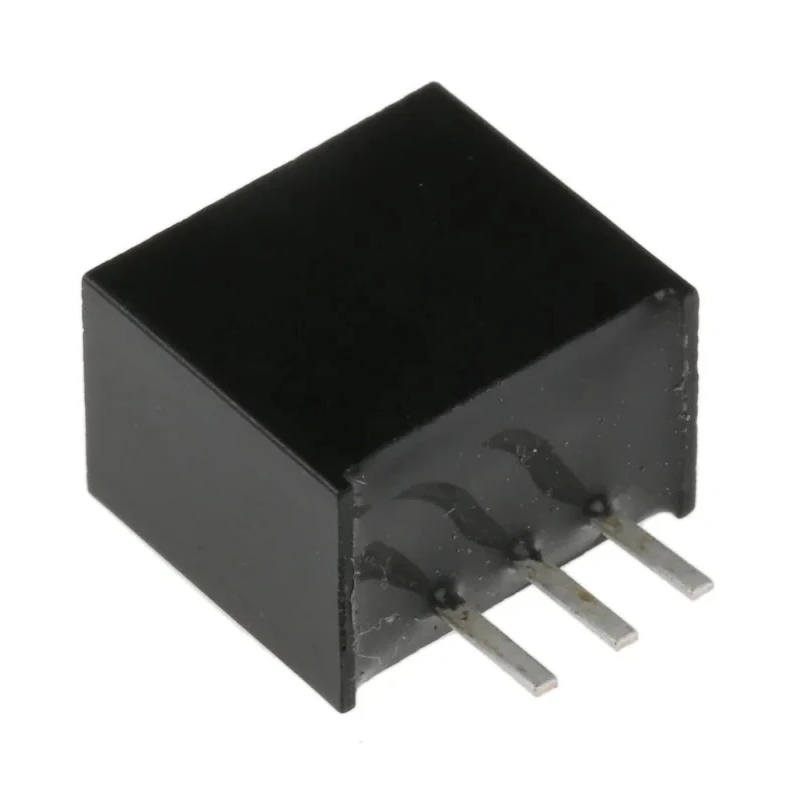

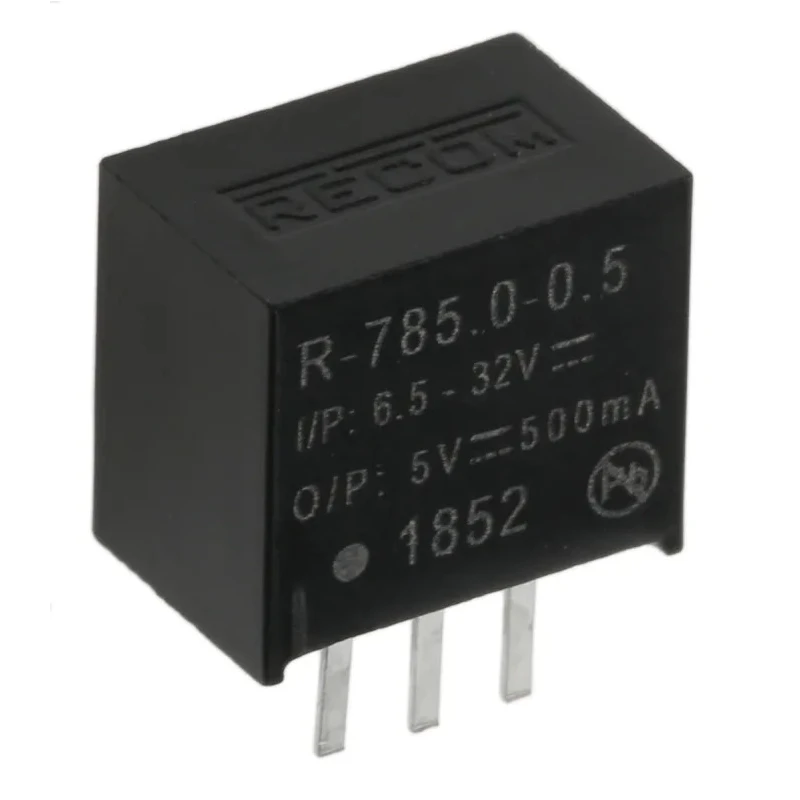

Recom Switching Regulator Through Hole 5V DC Output Voltage 500mA Output Current 2.5W Power R-785.0-0.5
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / Switching Regulators Recom Switching Regulator, Through Hole, 5V dc |
| Brand | Recom |
| Power | 2.5W |
| Efficiency | 94% |
| Length | 11.5mm |
| Model | R-785.0-0.5 |
| Depth | 10.2mm |
| Gross Weight | 1.9g |
| Width | 10.2mm |
| Mount Type | Through Hole |
| Series | R-78-0.5 |
| Output Current | 500mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | ±0.6 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 21098000h |
| Number of outputs | 1 |
| Ripple and Noise | 20mV Pk-Pk |
| Maximum Input Voltage | 32V dc |
| Line Regulation | ±0.4 % |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 6.5V |
| Output Voltage 1 | 5V dc |
Key Features
- Supports wide input voltage range from 6.5 to 32V DC.
- Provides 5V DC output voltage with 500mA output current.
- High efficiency rating of 94% for energy-saving operation.
- Includes short-circuit and thermal protection for device safety.
- Operates reliably from -40°C to +85°C temperature range.

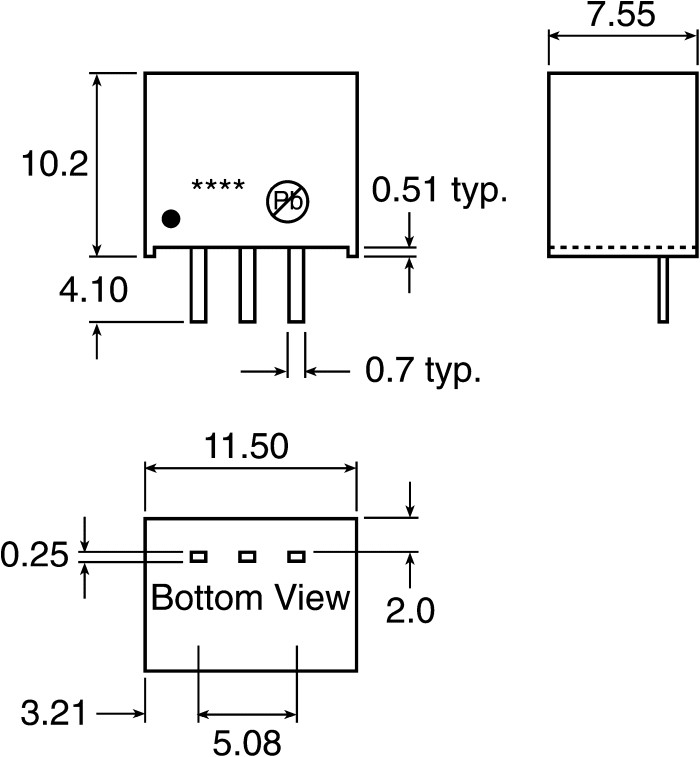

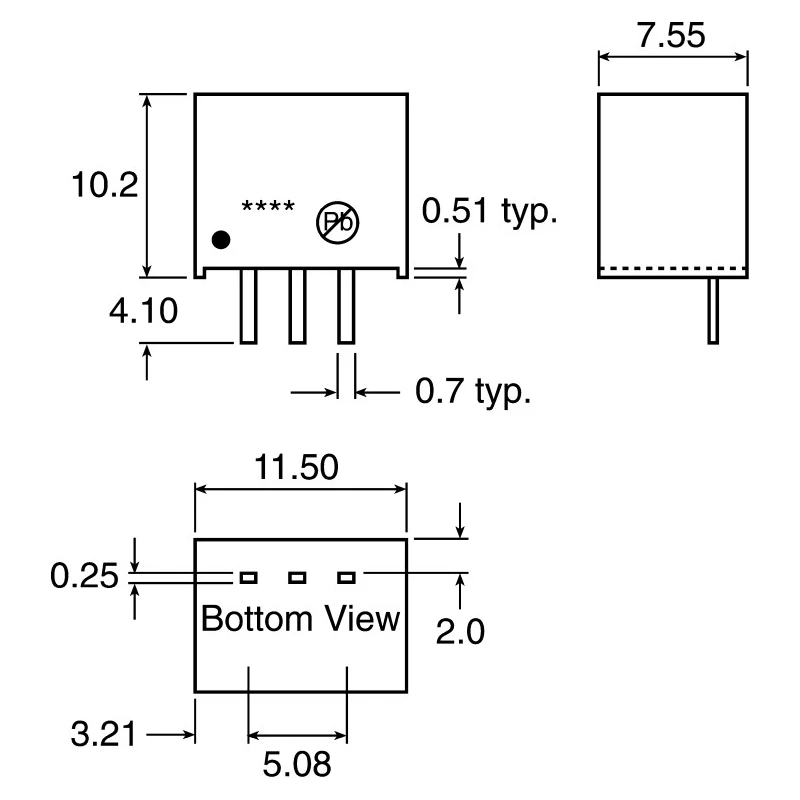

- Compact SIP package measuring 11.5 x 10.2 x 10.2 mm.
- Pin-compatible with LM78xx linear regulators for easy upgrades.
- Low ripple and noise output at 20mV peak-to-peak.
Product Description
Recom R-785.0-0.5 is a switching regulator designed for industrial and electronic voltage conversion applications. Featuring a through-hole mount type, it supports input voltages from 6.5V to 32V DC and provides a stable 5V DC output at 500mA with 2.5W power capacity. Suitable for automotive, digital camera electronics, construction machinery, and electric motor systems, it protects equipment from under-voltage and over-voltage conditions.
The compact size and SIP package make it easy to integrate into various low-profile machines. It offers high efficiency of 94%, considerably reducing power dissipation compared to linear regulators and saving energy.
Additional protections include short-circuit and thermal shutdown features, enhancing safety during operation. The regulator maintains performance over a wide temperature range of -40°C to 85°C, making it reliable even in challenging environments. Low ripple and noise of 20mV peak-to-peak ensure clean voltage delivery critical in sensitive electronic applications.
Its pin compatibility with popular LM78xx series linear regulators allows for easy upgrades. The high MTBF rating of 21,098,000 hours attests to its superior durability and long life span in continuous-use settings.
This regulator is an excellent choice for industrial automation, power management, and electronic component design requiring regulated 5V output. Its through-hole mounting facilitates easy soldering and mechanical stability in PCB assemblies.
The product complies with RoHS standards, ensuring it meets environmental safety requirements. Dimensions: 11.5mm (length) x 10.2mm (width) x 10.2mm (depth), weight approximately 1.9 grams. Package includes one Switching Regulator: model R-785.0-0.5.
Explore more voltage regulation solutions in our Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a wide input voltage range from 6.5V to 32V DC.
This model provides a stable output voltage of 5V DC with an output current of 500mA.
It has a high efficiency rating of 94%, which helps in energy-saving operation.
The compact SIP package measures 11.5mm in length, 10.2mm in width, and 10.2mm in depth.
It operates reliably within a temperature range of -40°C to +85°C.
It includes short-circuit and thermal protection features to enhance safety during operation.
It maintains low ripple and noise output at 20mV peak-to-peak, ensuring clean voltage delivery.
Yes, it is pin-compatible with LM78xx series linear regulators, allowing for easy upgrades.
The maximum power capacity is 2.5W.
The weight of this switching regulator is approximately 1.9 grams.
It complies with RoHS standards, ensuring it meets environmental safety requirements.
It is suitable for applications in automotive, digital camera electronics, construction machinery, and electric motor systems.
