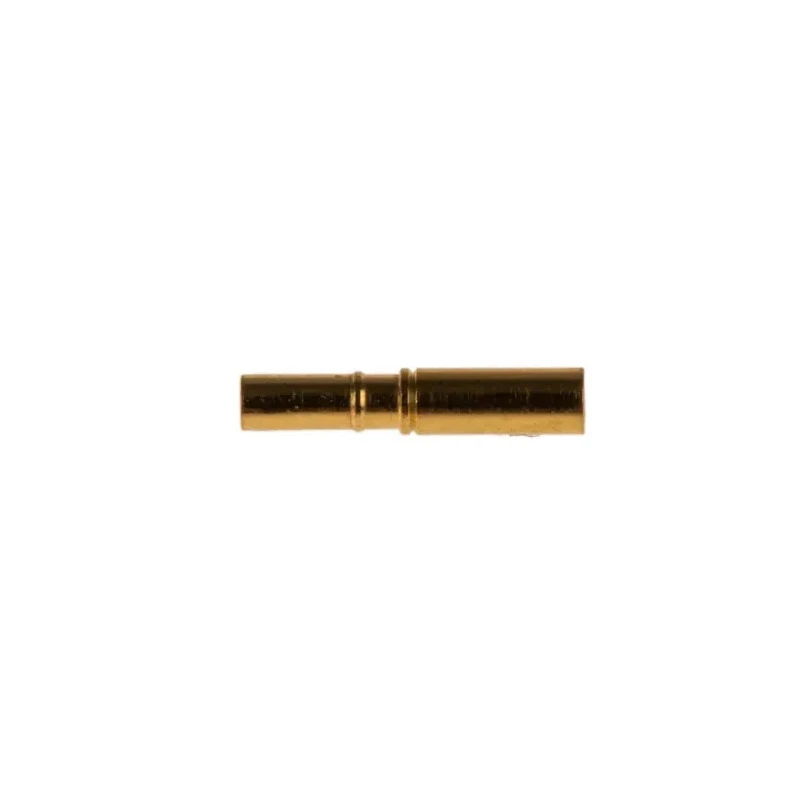

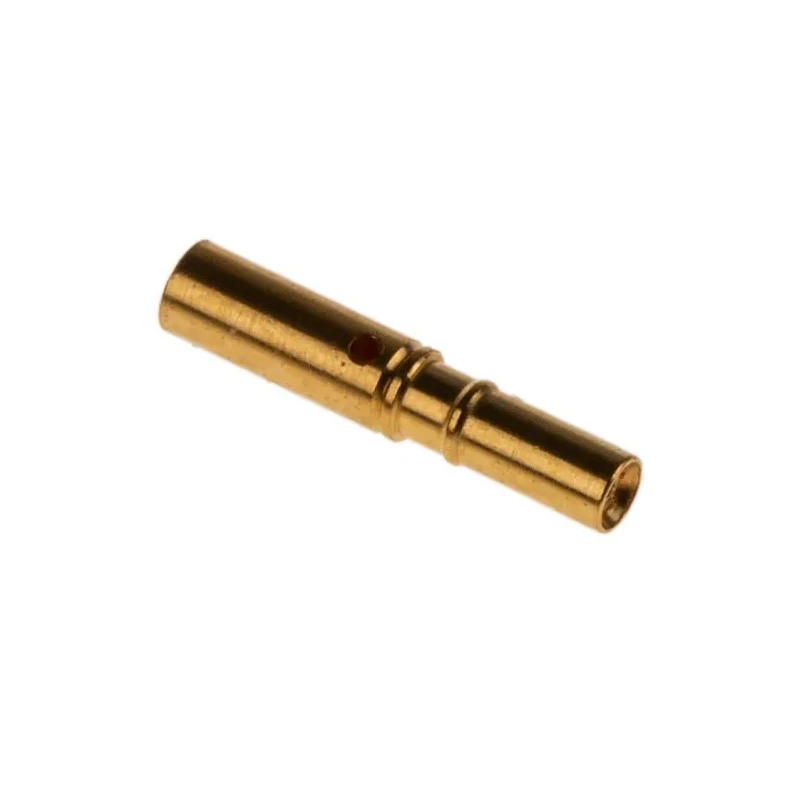

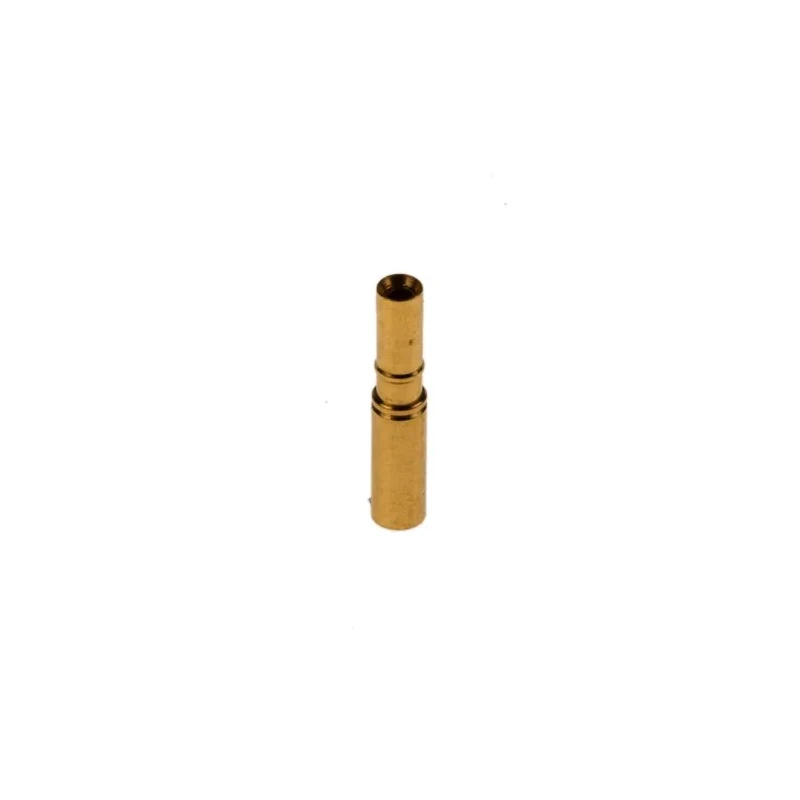

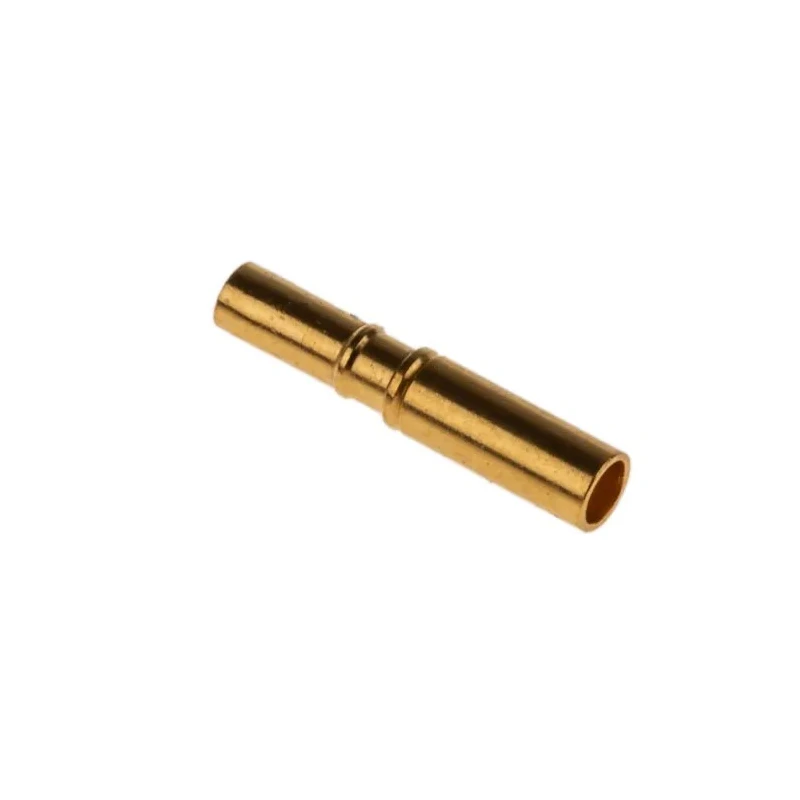

HARWIN Datamate Series Female Crimp Terminal 28 AWG Min Crimp, 24 AWG Max M80-0130005
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | HARWIN |
| Current | 3A |
| Model | M80-0130005 |
| Gender | Female |
| Contact Material | Beryllium Copper Alloy |
| Series | Datamate |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Datamate L-Tek, J-Tek and Mix-Tek Connector Housings |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 25mΩ |
Key Features
- Designed for use with Datamate L-Tek, J-Tek, and Mix-Tek connector housings.
- Constructed from high-quality beryllium copper alloy with gold plating for excellent conductivity and corrosion resistance.
- Supports a maximum current rating of 3A suitable for industrial electronic applications.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Features a crimp termination type for secure and durable wire connections.
- Small bore contact designed for wire sizes from 24 AWG to 28 AWG.
- Maximum contact resistance of 25 milliohms ensures minimal electrical loss.
- Manufactured in the United Kingdom ensuring quality and compliance.
Product Description
HARWIN M80-0130005 is a female crimp terminal designed for use within the Datamate series connector housings, including L-Tek, J-Tek, and Mix-Tek types. This terminal supports wire sizes ranging from 28 AWG minimum to 24 AWG maximum and current ratings up to 3 amperes. Constructed from beryllium copper alloy with durable gold plating, the contact offers excellent conductivity and corrosion resistance suited for demanding industrial and electronic applications.
The crimp terminal operates reliably across a broad temperature range from -55°C to 125°C, making it ideal for environments exposed to vibration, shock, and temperature extremes. Its small bore design features a specialized indent groove that securely holds wire sizes between 24 and 28 AWG, ensuring consistent electrical connections with a maximum contact resistance of 25 milliohms.
Harwin's implementation of a four-finger Beryllium Copper contact clips provides high reliability and connection integrity under severe conditions. These connectors are rear-insertable into Datamate housings and offer polarised mouldings for secure mating with compatible counterparts.
The terminal is manufactured in the United Kingdom and complies with industry requirements for high durability and performance in electronics manufacturing, telecommunications, aerospace, and military applications. This product is suitable for use in equipment and systems requiring robust and reliable wiring connections.
Designed for use with Datamate L-Tek, J-Tek, and Mix-Tek connector housings. Beryllium Copper alloy contact material with gold plating. Supports 3A current and wire sizes 28 to 24 AWG. Operating temperature ranges from -55°C to 125°C.
Crimp termination ensures secure connections. Maximum contact resistance of 25 milliohms. Small bore contact with indent groove for wire retention. High reliability four-finger contact clip design. Manufactured in the United Kingdom for quality assurance.
Explore the full HARWIN Datamate series and compatible crimping tools to optimize assembly efficiency and performance in your electronic systems at EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this female crimp terminal is 3A, making it suitable for industrial electronic applications.
This terminal supports wire sizes ranging from 28 AWG minimum to 24 AWG maximum.
It operates reliably in temperature ranges from -55°C to 125°C, suitable for various environmental conditions.
The contact material is beryllium copper alloy, which is plated with gold for improved conductivity and corrosion resistance.
This model is designed for use with Datamate L-Tek, J-Tek, and Mix-Tek connector housings.
The maximum contact resistance is 25 milliohms, ensuring minimal electrical loss during operation.
It features a crimp termination type, which provides secure and durable wire connections.
The small bore contact design includes an indent groove that securely holds the wire sizes between 24 and 28 AWG.
The terminal utilizes a four-finger beryllium copper contact clip design, which enhances connection integrity under severe conditions.
It is manufactured in the United Kingdom, ensuring quality and compliance with industry standards.
This terminal is suitable for use in electronics manufacturing, telecommunications, aerospace, and military applications.
The model number of this female crimp terminal is M80-0130005.
