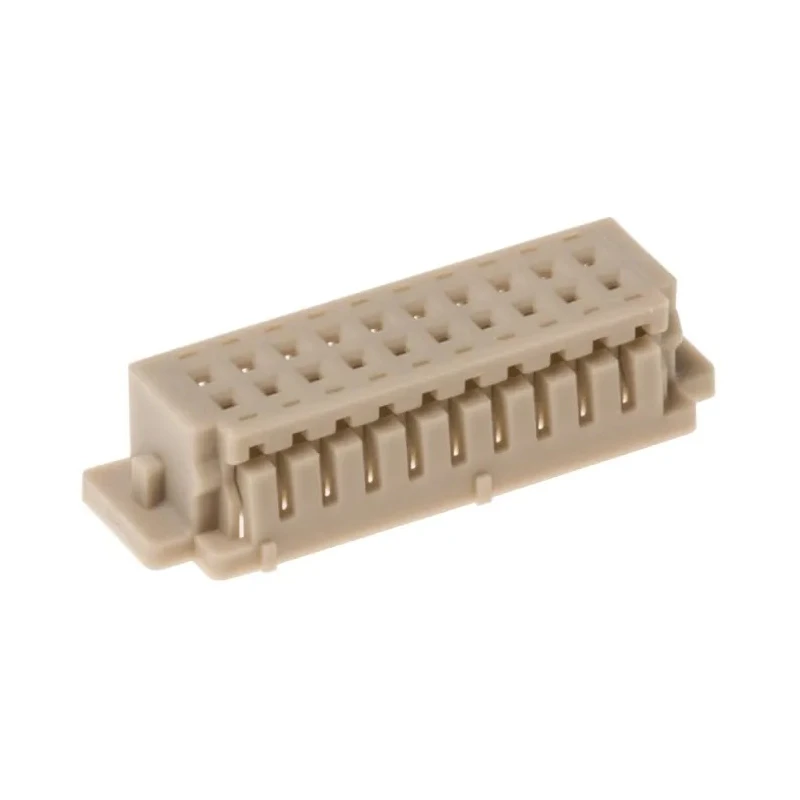

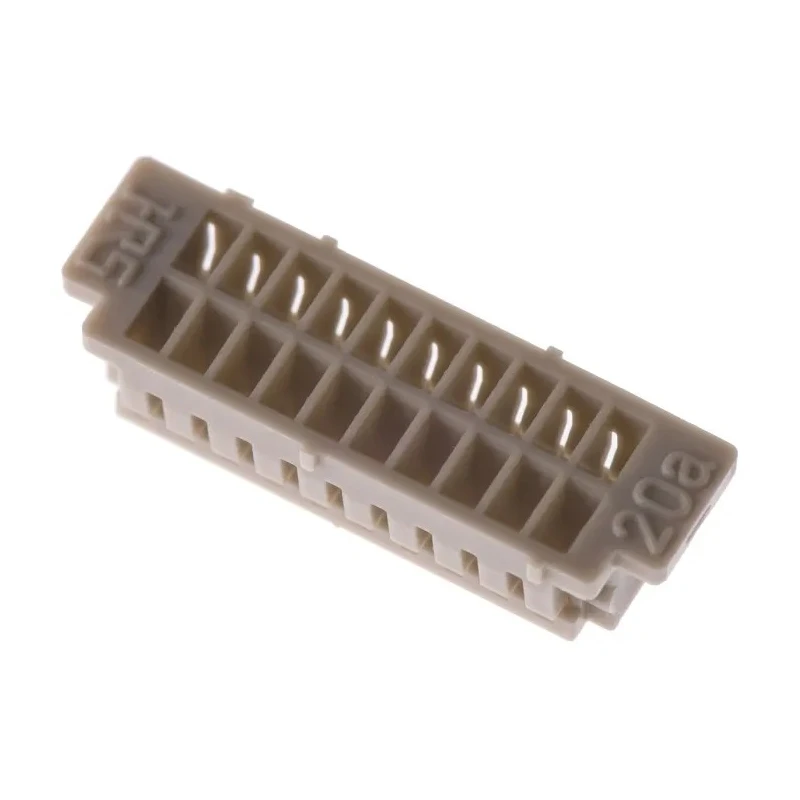

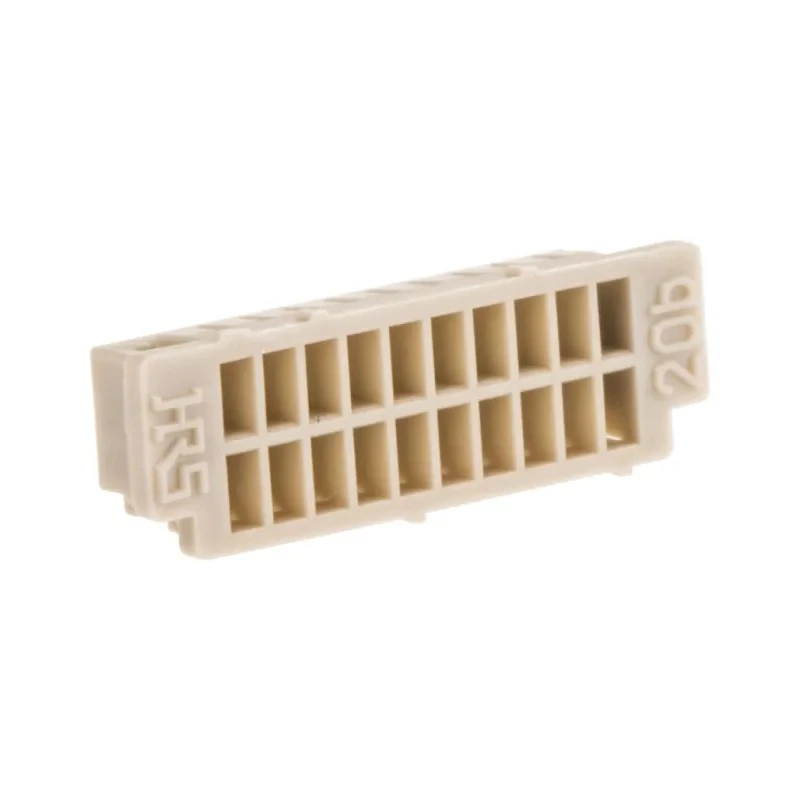

Hirose DF13 Female Connector Housing 1.25 mm Pitch 20 Way 2 Row Straight
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 16.65mm |
| Model | DF13 |
| Width | 5.2mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF13 |
| Number of Rows | 2 |
| Pitch | 1.25mm |
| For Use With | DF13 Series |
| Number of Contacts | 20 |
| Connector Gender | Female |
Key Features
- Compact 1.25 mm pitch supports space-saving in electronic devices.
- 20 contact points enable multiple signal connections.
- Double row design increases contact density efficiently.
- Straight orientation facilitates easy cable assembly.
- Constructed with durable polyamide housing material.
- Includes polarisation slots to prevent incorrect mating.
- Friction locking mechanism secures connector mating firmly.
- Ideal for digital cameras, LCD displays, and measurement devices.
Product Description
Hirose DF13-20DS-1.25C is a female connector housing designed for compact and reliable cable connections with a pitch of 1.25 mm. This 20 way, 2 row straight connector housing belongs to the DF13 series renowned for miniature connector solutions optimized for limited space applications.
The housing is made from polyamide material, providing strength and durability suitable for various electronic applications. The 1.25 mm pitch and double row configuration achieve approximately 30% higher contact density than single row connectors, making them perfect for devices requiring multiple signal connections such as digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement devices.
Polarisation slots built into the design prevent misalignment and incorrect insertion, while the friction locking mechanism ensures a secure mating connection to avoid disconnections. The connector housing is cable mount type and has a straight orientation, facilitating straightforward cable assembly and installation with a length of 16.65 mm and width of 5.2 mm.
Manufactured in Japan, the DF13-20DS-1.25C meets UL94V-0 flame retardant standards, ensuring safety and reliability in industrial and commercial electrical systems. Compact 1.25 mm pitch supports space-saving in electronic devices.
20 contact points enable multiple signal connections. Double row design increases contact density efficiently. Straight orientation facilitates easy cable assembly. Constructed with durable polyamide housing material. Includes polarisation slots to prevent incorrect mating.
Friction locking mechanism secures connector mating firmly. Ideal for digital cameras, LCD displays, and measurement devices. Manufactured in Japan ensuring high-quality standards. Compatible with the Hirose DF13 series connectors.
This connector housing is suitable for various industrial, manufacturing, and electronics assembly applications. Browse the Electronics Components Connector Housing category on EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 1.25 mm, designed for compact connections in electronic devices.
This model features 20 contact points, allowing for multiple signal connections.
The Hirose DF13 connector housing has a straight orientation, which facilitates easy cable assembly.
The housing is constructed from polyamide material, providing strength and durability for various electronic applications.
The dimensions of this connector housing are 16.65 mm in length and 5.2 mm in width.
This connector housing is compatible with the Hirose DF13 series connectors.
The DF13-20DS-1.25C is a cable mount type connector housing.
The connector housing includes polarisation slots that prevent misalignment and incorrect insertion.
It features a friction locking mechanism that secures the connector mating firmly to avoid disconnections.
This connector housing is ideal for applications such as digital cameras, LCD displays, and measurement devices.
The DF13-20DS-1.25C connector housing is manufactured in Japan.
The double row design of this housing achieves approximately 30% higher contact density compared to single row connectors.
