3M 3000 Series Straight Through Hole PCB Header 14 Contacts 2.54 mm Pitch 2 Row Shrouded N3314-6202RB

Free Delivery in India | Lowest Global Shipping Charges

3M 3000 Series Straight Through Hole PCB Header 14 Contacts 2.54 mm Pitch 2 Row Shrouded N3314-6202RB



Category PCB Headers Brand 3M Condition New

Specifications

Country of Origin	India
Voltage	25V
Brand	3M
Orientation	Straight
Current	2.0
Model	N3314-6202RB
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm
Connector,PCB,multipole,header,solder,straight,short,14way,HE10Brand	3M

Key Features

Features a double row of square pins with 2.54 x 2.54 mm pitch.
Shrouded housing protects contacts against mechanical damage.
High temperature PCT housing enables lead-free solder assembly.
Roll pin style ejector latches provide secure and durable connector retention.
Polarization features reduce risk of misalignment during mating.
Supports board-to-board and wire-to-board connection systems.
Robust design suitable for applications exposed to vibration and high reliability demands.
Ideal for industrial, laboratory, manufacturing, medical, and commercial electronics.

Product Description

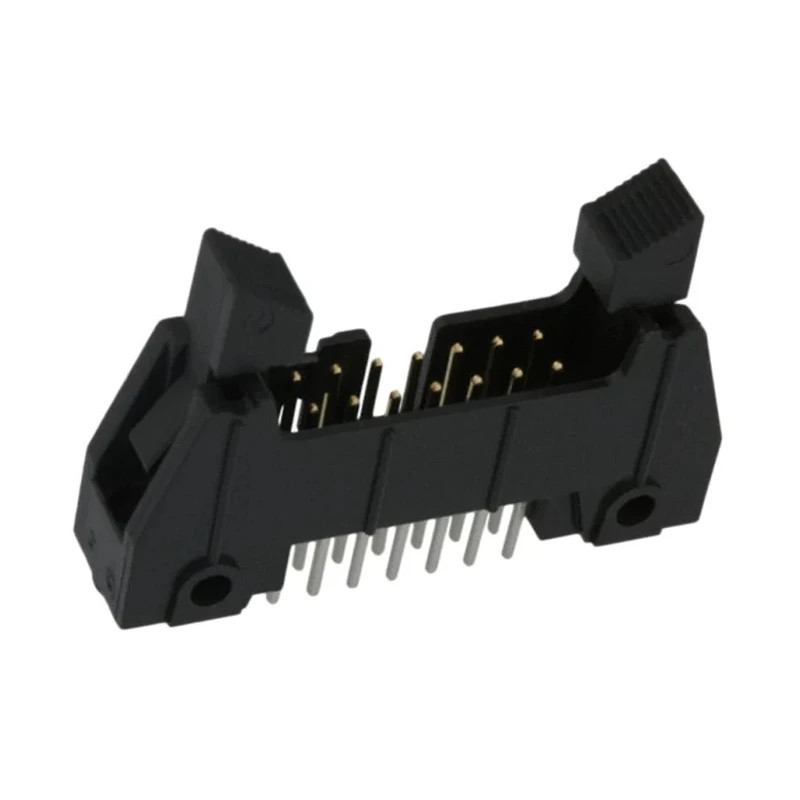

3M N3314-6202RB 3000 Series Straight Through Hole PCB Header is designed with 14 contacts arranged in 2 rows at a 2.54 mm pitch, featuring a shrouded housing constructed from glass filled polyester. Its straight orientation and through-hole mount type ensure reliable board attachment in demanding electronic assemblies.

This PCB header includes copper alloy contacts with gold plating to provide superior conductivity and corrosion resistance. Its high temperature PCT thermoplastic housing supports lead-free soldering processes up to 260°C, compliant with JEDEC J-STD-020C standards.

Equipped with robust short roll pin style ejector latches, this header enables secure connector mating with easy removability and enhanced retention under high vibration environments. The housing features polarization notches and extra slots to prevent misalignment, while military-grade polarization can be achieved with an optional key (3M part number N3518).

Operating within a temperature range of -55°C to 105°C and rated for 25 V and 2.0 A current, the 3M D3000 Series PCB header suits a wide array of applications including industrial control systems, instrumentation, medical devices, consumer electronics, communications, and data transfer equipment.

Features a double row of square pins with precise 2.54 x 2.54 mm pitch spacing. Shrouded housing protects contacts against mechanical damage. High temperature PCT housing enables lead-free solder assembly. Roll pin style ejector latches provide secure and durable connector retention.

Polarization features reduce risk of misalignment during mating. Supports board-to-board and wire-to-board connection systems. Robust design suitable for applications exposed to vibration and high reliability demands. Ideal for industrial, laboratory, manufacturing, medical, and commercial electronics.

This product is an essential component for systems requiring reliable and durable PCB interconnections, combining robust mechanical design with high performance electrical contact materials.

Explore more 3M PCB connectors and electronic components for optimized industrial and electronic assembly solutions on EnvMart.

Explore more products in our PCB Headers category.
