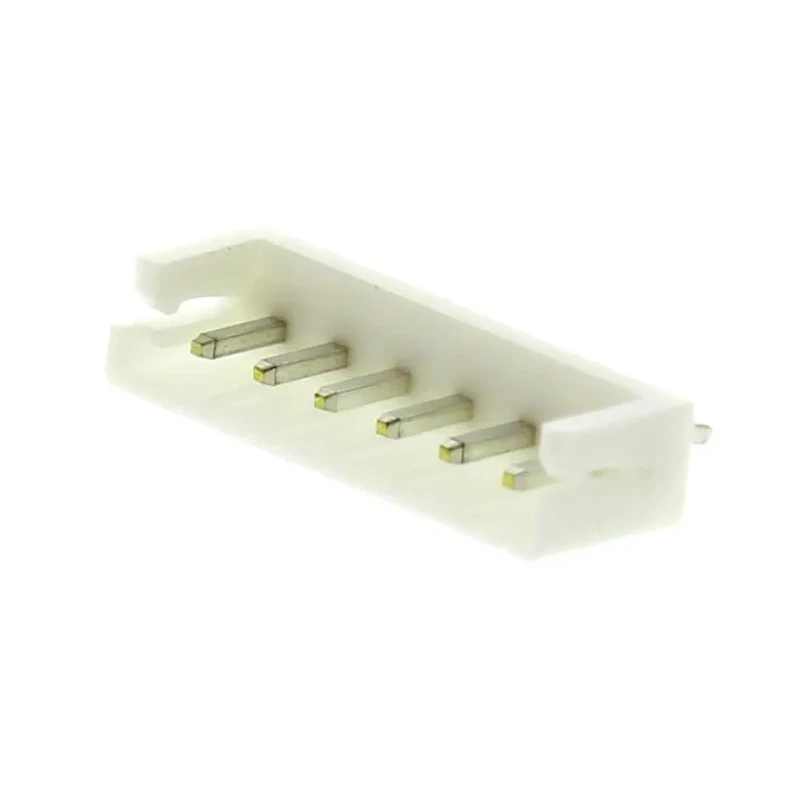

JST EH Series Straight Through Hole PCB Header 6 Contacts 2.5 mm Pitch 1 Row Shrouded B6B-EH-A (LF) (SN)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 250V |
| Brand | JST |
| Orientation | Straight |
| Current | 3A |
| Model | B6B-EH-A (LF) (SN) |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | EH |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 2.5mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.2mm |
Key Features
- The connector features brass contacts plated with tin for reliable conductivity.
- Constructed with a durable polyamide housing suitable for industrial environments.
- Rated for a current of 3A and voltage of 250V.
- Operating temperature ranges from -25°C to 85°C for versatile applications.
- Designed with a 3.2mm mating pin length facilitating easy solder termination.
- Mounting type is through hole, with a straight orientation for PCB integration.
Product Description
JST B6B-EH-A (LF) (SN) Straight Through Hole PCB Header is a high-quality electronic component featuring 6 male contacts arranged in a single row with 2.5 mm pitch. This PCB header is shrouded to provide enhanced protection and correct polarization during mating, ensuring reliable wire-to-board connection performance.
The integral keying prevents misalignment and damage to circuits, making it suitable for precision electronics manufacturing and testing.
Housing is made from polyamide material, which offers excellent durability and resistance to environmental factors, suitable for industrial, laboratory, and commercial electronic assembly.
This component supports a maximum current rating of 3A and maximum voltage of 250V, operating reliably within temperature ranges from -25°C to 85°C. The connector system is straight orientation through-hole type, facilitating solder termination for robust electrical and mechanical connections.
Contact materials are brass with tin plating, which guarantees excellent conductivity and corrosion resistance over prolonged use. The mating pin length of 3.2mm ensures compatibility with corresponding PCB footprints and socket housings.
The connector features brass contacts plated with tin for reliable conductivity. Constructed with a durable polyamide housing suitable for industrial environments. Rated for a current of 3A and voltage of 250V. Operating temperature ranges from -25°C to 85°C for versatile applications.
Designed with a 3.2mm mating pin length facilitating easy solder termination. Mounting type is through hole, with a straight orientation for PCB integration. This product is manufactured in Malaysia and is widely used in electronic manufacturing, industrial automation, and communication equipment.
Explore more PCB Headers and electronic components on EnvMart to find the optimal connectors for your projects and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 3A.
This connector is rated for a maximum voltage of 250V.
It operates within a temperature range of -25°C to 85°C.
The header features 6 male contacts arranged in a single row.
The contacts have a pitch of 2.5 mm.
The housing is constructed from polyamide, providing durability and resistance to environmental factors.
This model uses solder termination for robust electrical connections.
This connector is shrouded, which enhances protection and correct polarization during mating.
The mating pin length is 3.2 mm, ensuring compatibility with corresponding PCB footprints.
It supports through hole mounting, suitable for PCB integration.
The contacts are made of brass and are plated with tin for reliable conductivity.
This product is manufactured in Malaysia.
