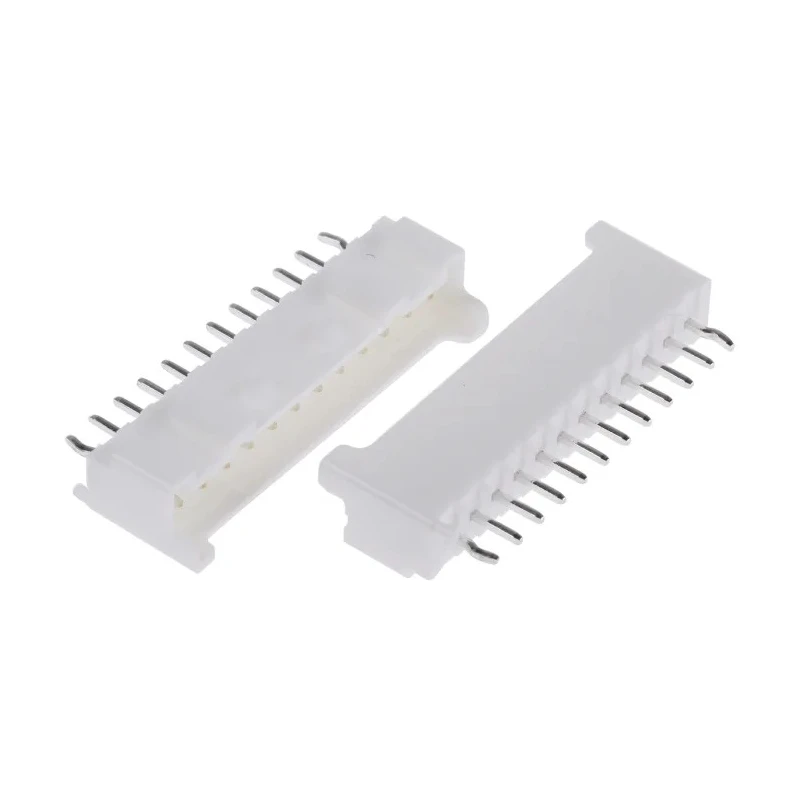

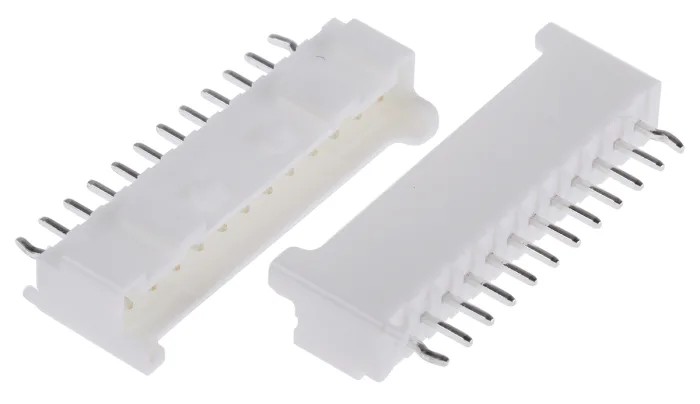

JST PA Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 1 Row Shrouded B12B-PASK-1 (LF) (SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PA Series Straight Through Hole PCB Header 12 Contacts 2 mm Pitch 1 Row Shrouded B12B-PASK-1 (LF) (SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B12B-PASK-1 (LF) (SN)
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	PA
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	12
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Mating Pin Length	3mm

Key Features

The header is shrouded and features a straight orientation with 1 row of contacts.
Contacts are made of copper alloy and plated with tin for reliability.
This through hole mount type supports up to 3A current and 250V voltage.
It operates in temperatures ranging from -25°C to 85°C for broad application.
The 3 mm mating pin length and polarizing guides enhance easy and secure insertion.
Designed with a thumb depress mechanism for anti-vibration secure locking.
Suitable for industrial electronics requiring sturdy wire-to-board connections.
Ideal for power connectors and PCB applications in manufacturing and electronics industries.

Product Description

JST B12B-PASK-1 (LF) (SN) PA Series Straight Through Hole PCB Header is engineered for reliable wire-to-board connections in industrial and electronic devices. Featuring 12 male contacts arranged in a single row with 2 mm pitch, this shrouded header ensures secure mating with suitable housings.

The contacts are constructed from copper alloy with tin plating to deliver excellent conductivity and corrosion resistance. Designed as a through hole mount type, it supports current ratings of 3A and voltage up to 250V, suitable for a wide range of electronic applications.

This PCB header operates effectively in temperature ranges from -25°C to 85°C, ensuring durability in various environments. Its 3 mm mating pin length and low insertion force pins facilitate easy and secure board assembly.

The header includes a thumb depress locking mechanism preventing accidental disconnection caused by vibration, making it ideal for applications requiring stable and vibration-resistant connections such as industrial electronics, manufacturing equipment, and power supply systems.

Top entry design with polarizing guides aids accurate insertion and assembly efficiency. Available as part of the 2.0 mm JST PA Range, this product matches perfectly with compatible wire-to-board connectors and housings.

The header includes 12 male contacts with 2 mm pitch and a single row configuration. Contact material is copper alloy with tin plating to ensure conductivity and protection. Rated for 3A current, 250V voltage, and operating temperature range of -25°C to 85°C.

Shrouded design with thumb depress locking mechanism for secure and vibration-resistant connections. Through hole mount type with 3 mm mating pin length designed for easy solder termination.

This JST PA Series PCB header is extensively used in industrial electronic assemblies for power connectors, PCB interconnection systems, and electronic device housings. It is engineered to maintain electrical integrity and mechanical stability in demanding production environments.
