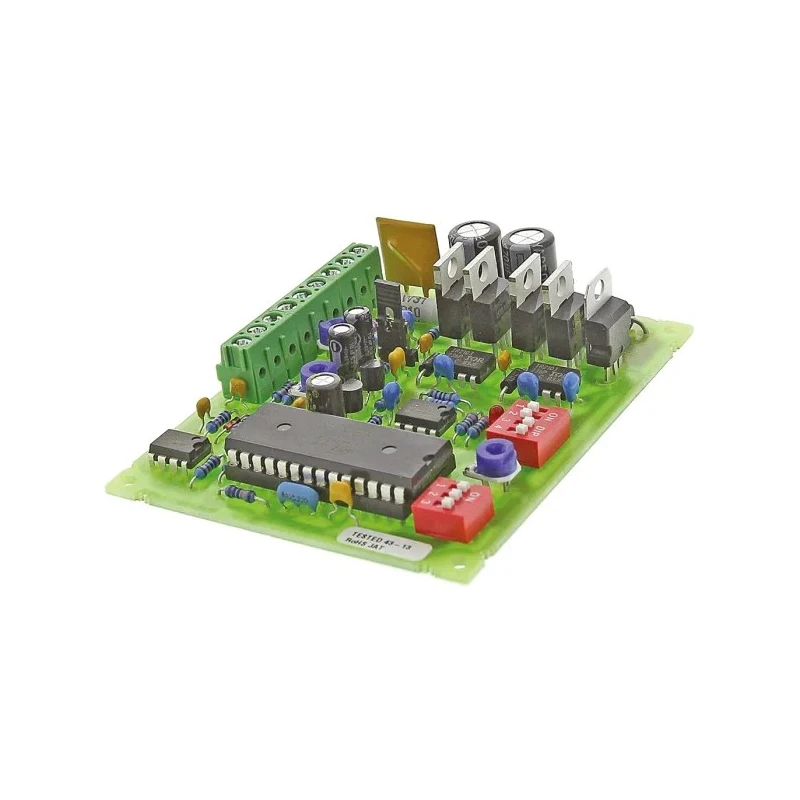

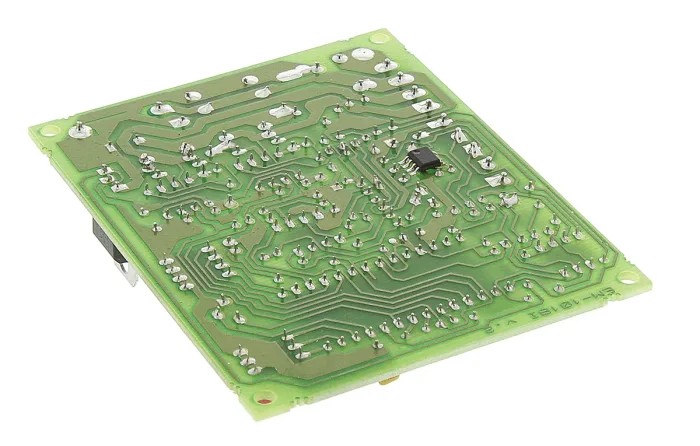

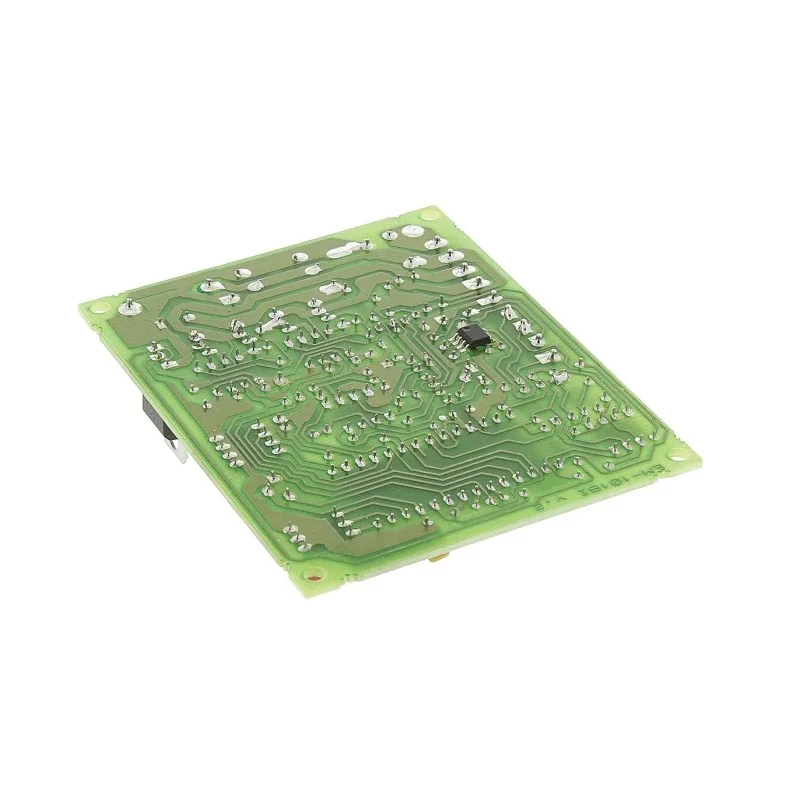

Electromen OY DC Motor Controller 80W, 20-34V DC, 4.2A, Compact DIN Rail Mountable EM-101/BI

Electromen OY EM-101/BI is a dedicated DC motor controller designed for precise driving and direction control of brushed DC motors within an 80W power range. It is optimized to operate efficiently at a supply voltage ranging between 20 and 34V DC and supports motor currents up to 4.2A. The compact DIN rail mountable form factor (89mm length, 73mm width, 26mm depth) makes it ideal for integration within automated and industrial electrical systems.

The controller features advanced pulse width modulation (PWM) technology that delivers high starting torque with minimal temperature rise and low electromagnetic emissions. The device supports comprehensive 4-quadrant control with continuous and two-step speed settings, enabling precise control of motor direction and speed.

The EM-101/BI model offers adjustable acceleration and braking ramps, including specialized braking modes such as reverse braking for extremely fast stopping and dynamic braking that shorts motor terminals during braking phases. Load compensation is implemented through an inbuilt resistor adjustment, ensuring stable operation under varying mechanical loads. The current limit can be set using DIP switches, and its status is indicated by an onboard LED to facilitate safe motor management.

Safety is enhanced with a built-in self-recovery fuse rated at 4A, safeguarding the controller and the motor against overcurrent conditions. Positive logic control alongside supply voltage compensation ensures consistent performance even amid supply fluctuations.

This motor controller is suitable for a wide range of industrial and automation applications including HVAC systems, manufacturing equipment, laboratory instrumentation, conveyors, and other motor-driven machinery requiring reliable directional and speed control of brushed DC motors.

Compact DIN rail mountable design with dimensions 89x73x26 mm. Power rating of 80W at supply voltages of 20-34V DC. Current rating of 4.2A suitable for motors up to 70W. Advanced PWM based 4-quadrant control for smooth speed and direction handling.

Multiple braking options including reverse and dynamic braking. Adjustable acceleration, braking ramps, and current limits for customized control. Load compensation to maintain consistent motor torque under varying conditions.

Built-in self-recovering fuse and LED indicators for status monitoring. Designed for brushed DC motors within industrial and automation environments. Explore the wide range of Motor Controllers and other electrical components available at EnvMart for enhanced automation and control in your industrial applications.
