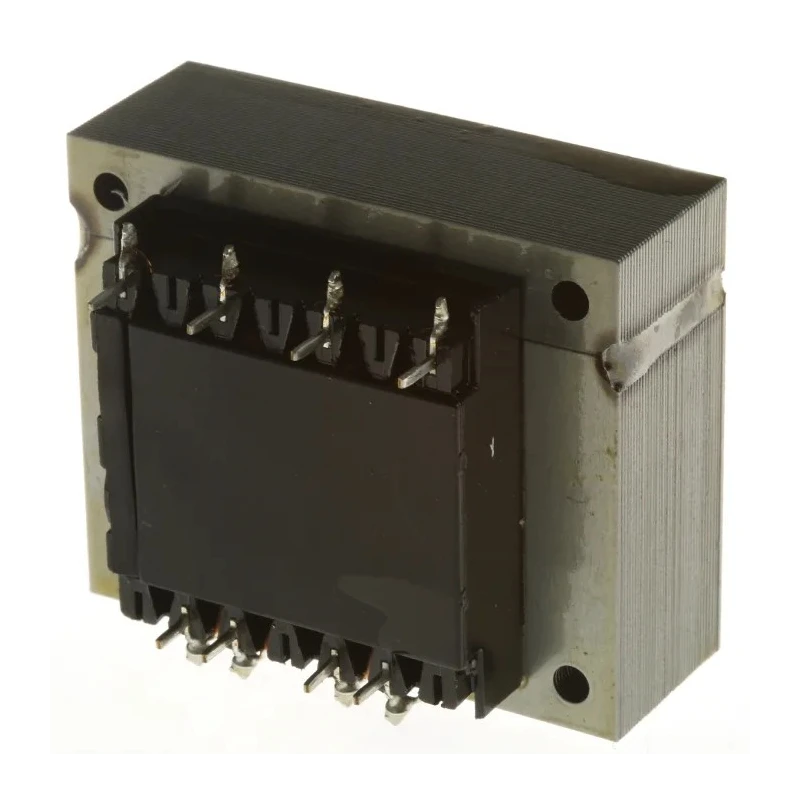

RS PRO 24 V ac 2 Output Through Hole PCB Transformer, Dual Primary Dual Secondary Windings, 12VA Power, 50-60Hz 504-436

RS PRO model 504-436 is a high-quality 24 V AC 2 Output Through Hole PCB Transformer engineered for robust PCB mounting applications. Featuring dual primary and dual secondary windings with a power rating of 12VA, this transformer supports an independent 2-output design ideal for precise electrical circuits operating at frequencies ranging from 50 to 60Hz. The twin 115V AC primary windings can be connected in series for 230V or in parallel for 115V operation, providing versatility in use.

Constructed with fully shrouded bobbins and undergoing 100% electrical and flash testing, the transformer assures optimal performance and safety. Its compact dimensions of 54mm length, 45mm width, and 30.41mm depth make it well-suited for space-constrained PCB layouts. The device supports a maximum operating temperature of 130°C, complying with strict IECBSEN 615581, ASNZS 61558.1, RoHS, and CE standards, signifying high reliability and environmental compliance.

This transformer is designed for demanding industrial, electronic component manufacturing, and power supply distribution applications. It is perfect for use in laboratories, manufacturing equipment, and industrial automation projects requiring efficient and safe AC voltage step-down or isolation.

Features twin 115V AC primary windings configurable for 230V or 115V operation. Two independent secondary outputs provide stable 24 V AC supply. Body dimensions suit compact PCB mounting with a through-hole mount type. Maximum operating temperature rated at 130°C for enhanced thermal performance.

Standards compliant with IECBSEN 615581, ASNZS 61558.1, RoHS, CE ensuring quality and safety. Robust manufacturing with fully shrouded bobbins and full varnish impregnation. Suitable for electronics manufacturing, industrial automation, and power supplies.

Country of origin Poland confirms quality European manufacture.

Choose RS PRO PCB Transformers for reliability in your electrical and electronic projects. Browse the full RS PRO product range and related PCB Transformers at EnvMart for comprehensive solutions tailored to your needs.
