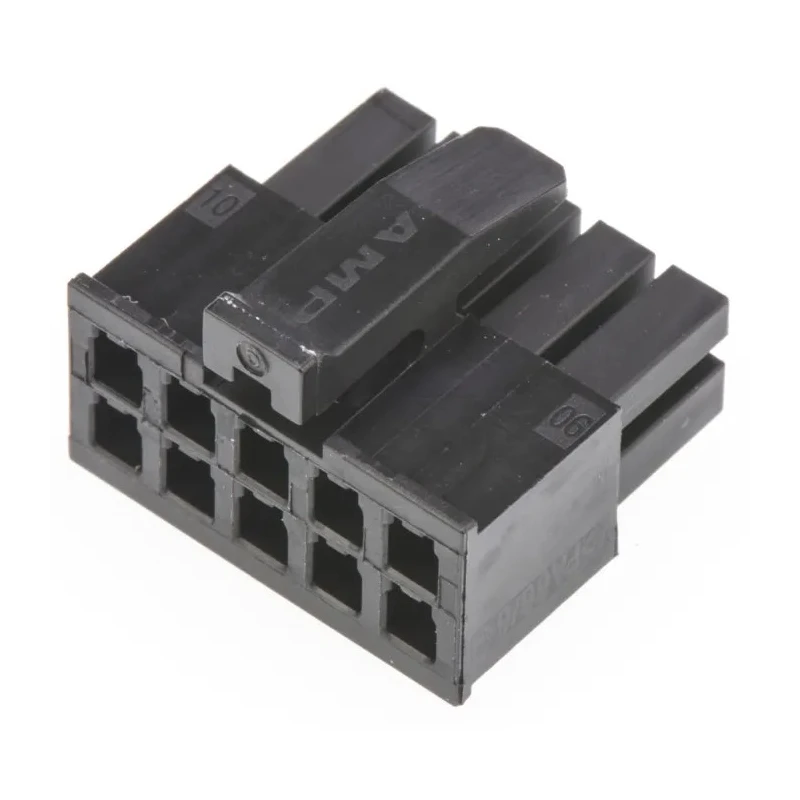

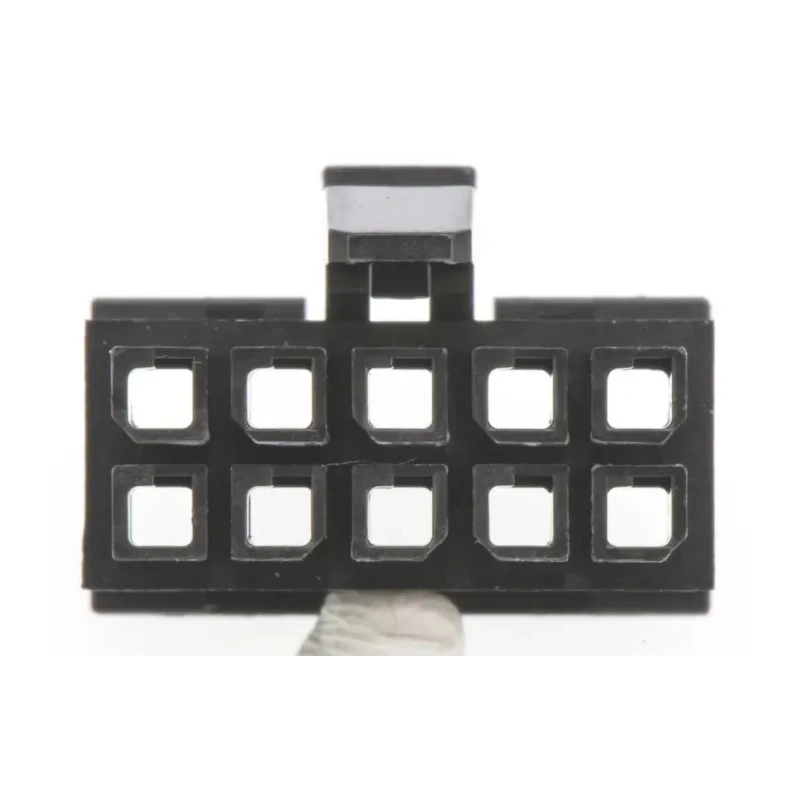

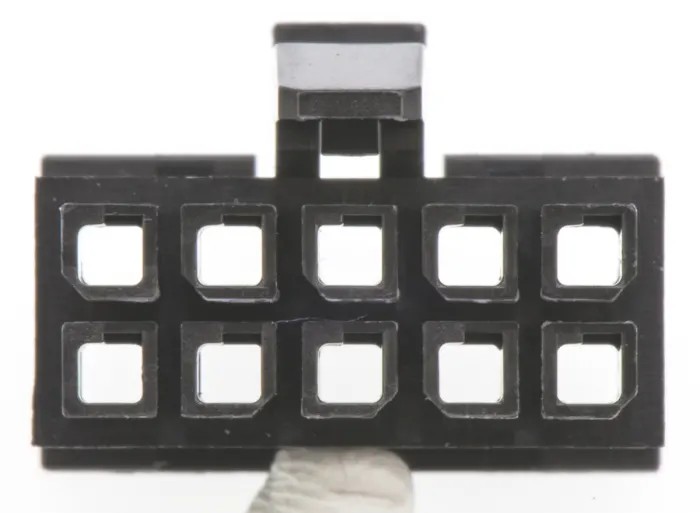

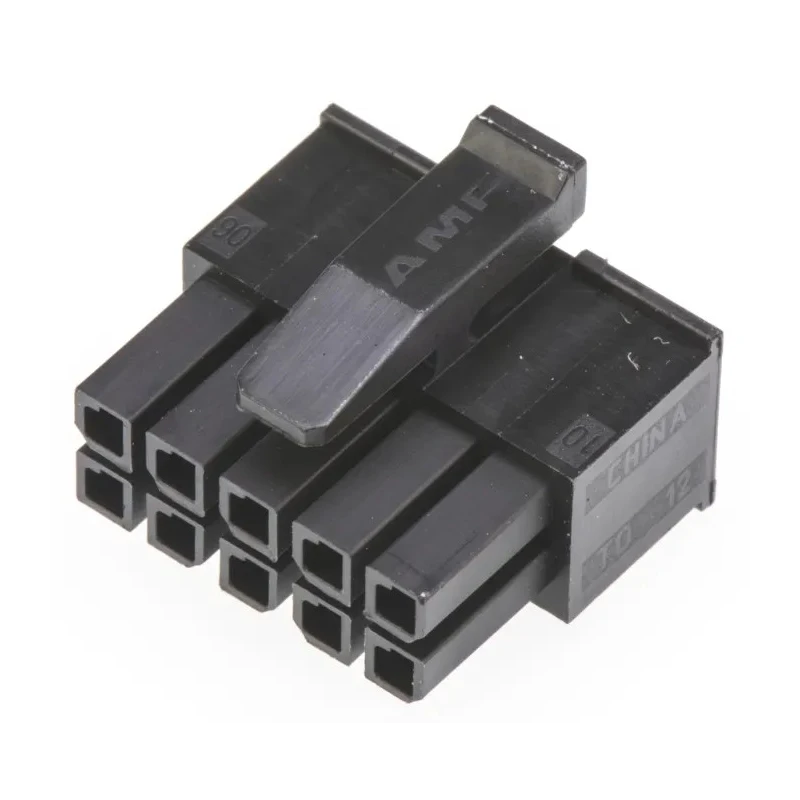

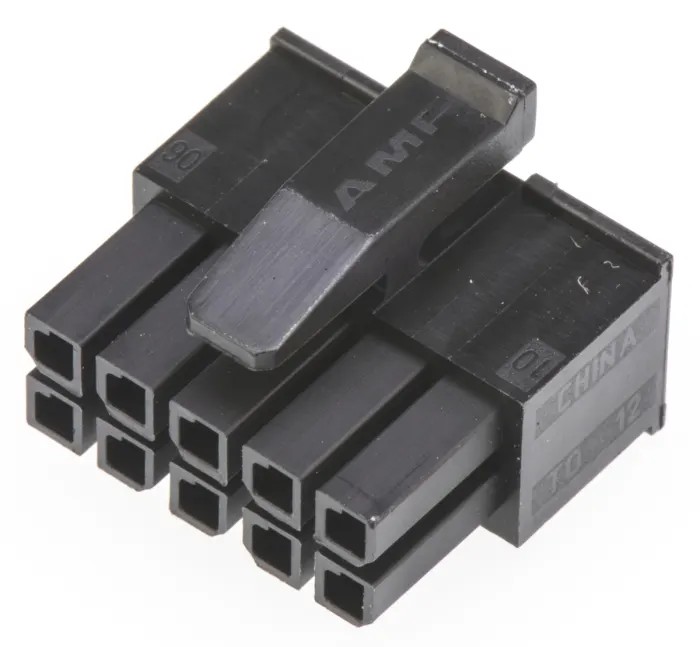

TE Connectivity Micro MATE-N-LOK 3 mm Pitch 10 Way 2 Row Female Connector Housing Cable Mount Straight 1-794617-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 16mm |
| Width | 14.04mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro MATE-N-LOK |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- The housing is made of durable black nylon material with a 94V-0 flammability rating.
- It features polarization to prevent mis-mating and a positive locking latch for a secure connection.
- Designed for use with centerline soft shell pin and socket connectors.
- Its compact size with 16 mm length and 14.04 mm width makes it suitable for various applications.
- Ideal for industrial, household appliances, lighting, factory automation, data storage, and security systems.
- Compatible with corresponding Micro MATE-N-LOK plug housings and PCB headers.
- Offers a robust 3 mm connector system supporting up to 5A maximum current rating.
- Available in standard and low profile versions for flexible design integration.
Product Description
TE Connectivity 1-794617-0 Micro MATE-N-LOK Female Connector Housing is a high-performance connector housing designed for secure and reliable interfacing in electronic assemblies. Featuring a 3 mm pitch and 10 way, 2 row configuration, this connector housing supports cable mounting with a straight orientation to facilitate easy and accurate connections.
Manufactured from black nylon material with a 94V-0 rating, it ensures flame resistance and mechanical durability in demanding environments. The housing incorporates polarization features to avoid mis-mating during installation and includes a positive locking latch to secure the mating connection firmly.
This component is designed to mate with Micro MATE-N-LOK plug housings and PCB headers, providing versatility for wire-to-wire and wire-to-board applications. Its 16 mm length and 14.04 mm width dimensions allow it to fit compact industrial designs in sectors such as factory automation, household appliances, lighting, data storage devices, and security systems.
The Micro MATE-N-LOK 3 mm connector system delivers a maximum current rating of 5 amps, supporting reliable power transmission in medium-low current applications. Low profile variants with reduced mating height are also available for space-critical applications, particularly in LED lighting.
The housing material is high-quality black nylon for durability and safety. Polarization and locking latch enhance connection reliability. Supports 10 contacts arranged in 2 rows with 3 mm pitch spacing. Compatible with centerline soft shell pin and socket connectors.
Used widely in industrial and consumer electronic applications. Ideal for data communication, automation, and lighting sectors. Straight orientation simplifies cable routing and assembly.
This TE Connectivity Micro MATE-N-LOK 3 mm female Connector Housing is an essential component for engineers and designers looking for reliable, standardized connector solutions suitable for various industries. Explore EnvMart's extensive range of electronic connectors and related components for your projects and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 3 mm pitch and a 10 way, 2 row configuration.
The housing has a length of 16 mm and a width of 14.04 mm.
It supports a maximum current rating of 5 amps.
The housing is made from durable black nylon material with a 94V-0 flammability rating.
This unit supports cable mounting with a straight orientation.
It includes polarization features to avoid mis-mating and a positive locking latch for a secure connection.
It is designed to mate with Micro MATE-N-LOK plug housings and PCB headers.
It is suitable for various applications including industrial, household appliances, lighting, factory automation, data storage, and security systems.
Yes, it is available in standard and low profile versions for flexible design integration.
The connector gender of this housing is female.
The country of origin for this connector housing is India.
It is designed for use with centerline soft shell pin and socket connectors.
