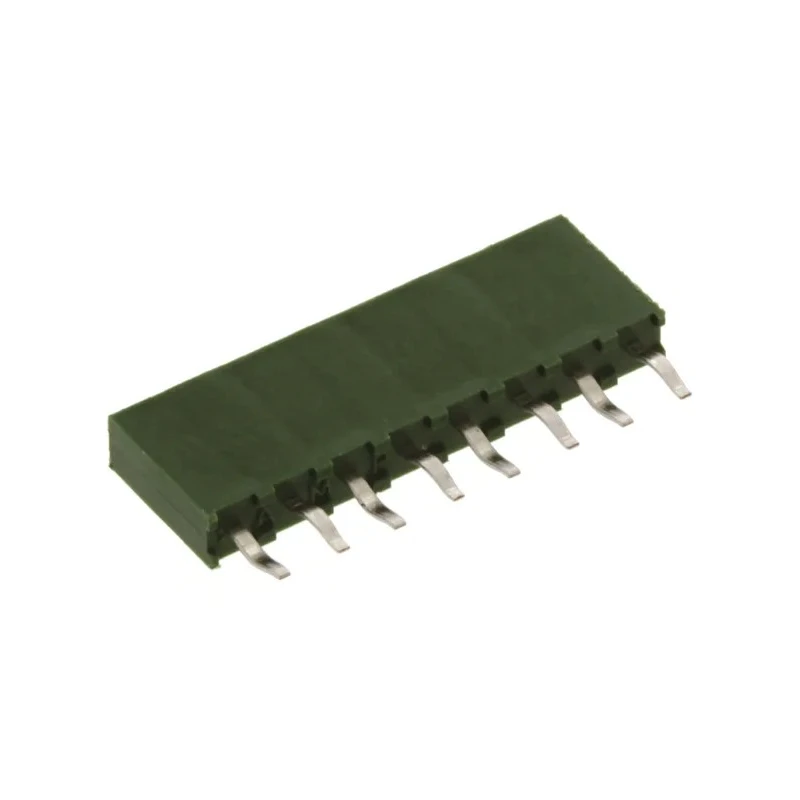

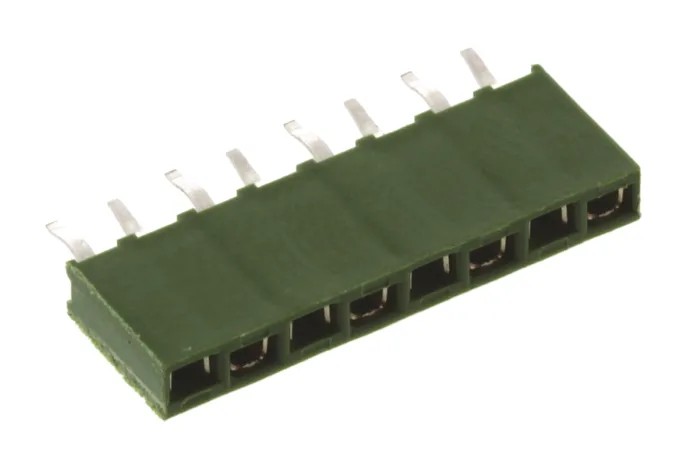

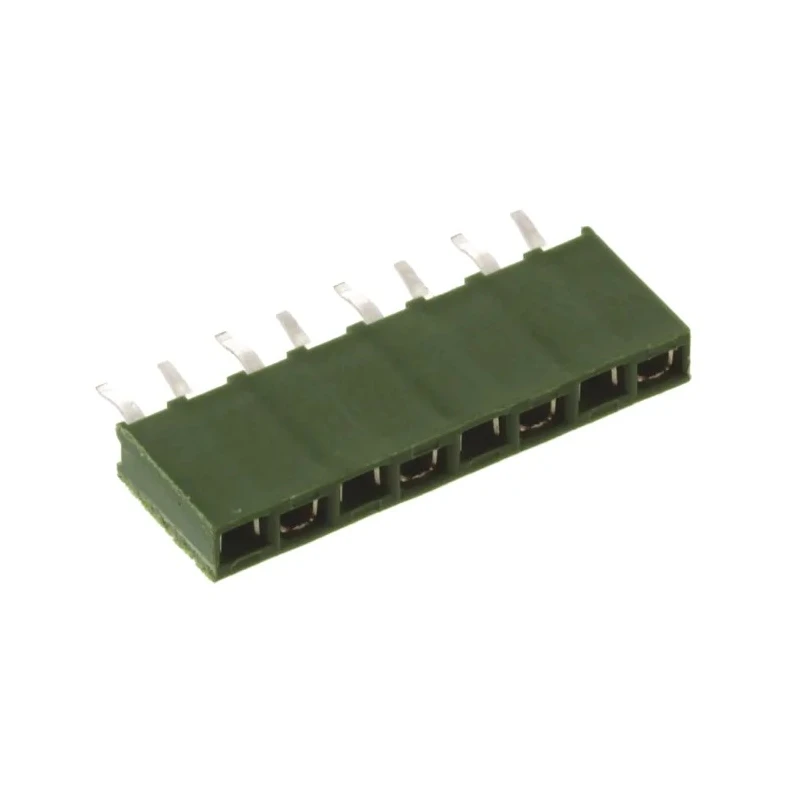

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket, 8-Contact, 1 Row, 2.54 mm Pitch, Solder Termination HV100
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features kinked solder legs for secure retention to the PCB.
- Constructed with UL 94V-0 flame retardant polyester housing material.
- Supports a current rating of 12A and operates between -55°C to 105°C.
- Utilizes bronze contacts plated with tin for reliable connectivity.
- Mount type is through hole with straight orientation, designed for board-to-board connections.
- Ideal for stacking applications with multiple mounting height options available.
- One row socket strip configuration simplifies PCB layout design.
- Female contact gender compatible with AMPMODU series connectors.
Product Description
TE Connectivity HV100 215297-8 Straight Through Hole PCB Socket is a specialized 8-contact, 1-row socket designed to facilitate board-to-board connections in electronic assemblies. With a precise 2.54 mm pitch and solder termination, this socket ensures secure and reliable mounting on PCBs. The housing is made from UL 94V-0 flame retardant polyester thermoplastic, providing excellent flame resistance and durability for industrial and commercial electronic applications.
This socket supports a continuous current of 12 amperes and can safely operate in temperatures ranging from -55°C to 105°C, making it suitable for harsh environments. The contact parts are fashioned from bronze with a tin plating to maintain excellent conductivity and corrosion resistance, while the female contact gender accommodates a wide range of mating connectors in the AMPMODU HV100 series.
The design features kinked solder legs, enhancing the retention force to the PCB during wave soldering or manual soldering processes. Board stand offs are integrated into the housing, providing mechanical support and stability.
Available in mounting heights of 7 mm and 8.5 mm, these sockets support stacking applications, allowing multiple boards to be easily connected in a compact footprint. The single-row socket strip simplifies electronic circuit designs and is compatible with numerous AMPMODU connectors series for flexible electronic system configurations.
Reliable solder termination with kinked legs for durability. Flame retardant UL 94V-0 polyester housing for safety compliance. Current rating of 12A suitable for moderate power needs. Temperature tolerance from -55°C to 105°C ensures robust operation.
Bronze contacts with tin plating deliver consistent electrical performance.
This product is extensively used in industrial electronics, manufacturing boards, embedded systems, and communications equipment where reliable PCB interconnections are critical. Its design ensures easy installation, secure mounting and long-lasting performance in demanding environments.
Explore more from TE Connectivity in PCB Sockets and electronic connectors to enhance your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A, making it suitable for moderate power needs in electronic applications.
It operates safely within a temperature range of -55°C to 105°C, allowing for use in harsh environments.
The socket utilizes a solder termination type, ensuring secure and reliable connections on PCBs.
The housing is made from UL 94V-0 flame retardant polyester, while the contacts are constructed from bronze and plated with tin for reliable connectivity.
This model features 8 contacts in a single row configuration, simplifying PCB layout design.
The pitch size for this socket is 2.54 mm, which is standard for many PCB applications.
It has a straight orientation, designed specifically for board-to-board connections.
This socket is designed for a board-to-board connector system, facilitating interconnections between PCBs.
The HV100 socket is available in mounting heights of 7 mm and 8.5 mm, supporting stacking applications.
The contact gender is female, making it compatible with a variety of mating connectors in the AMPMODU series.
The country of origin for this socket is India, ensuring compliance with local manufacturing standards.
It is extensively used in industrial electronics, manufacturing boards, embedded systems, and communications equipment where reliable PCB interconnections are critical.
