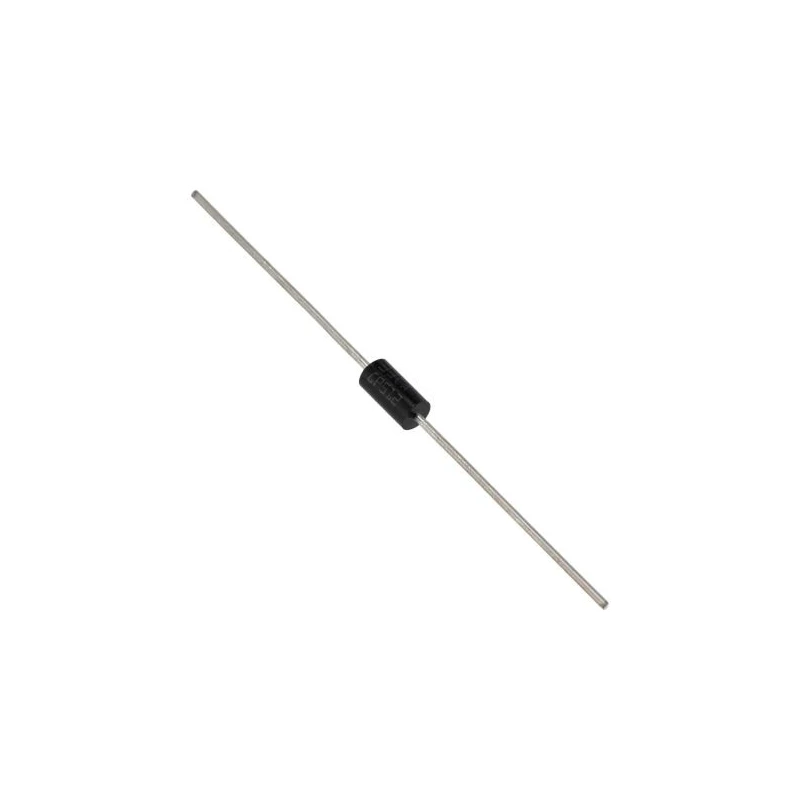

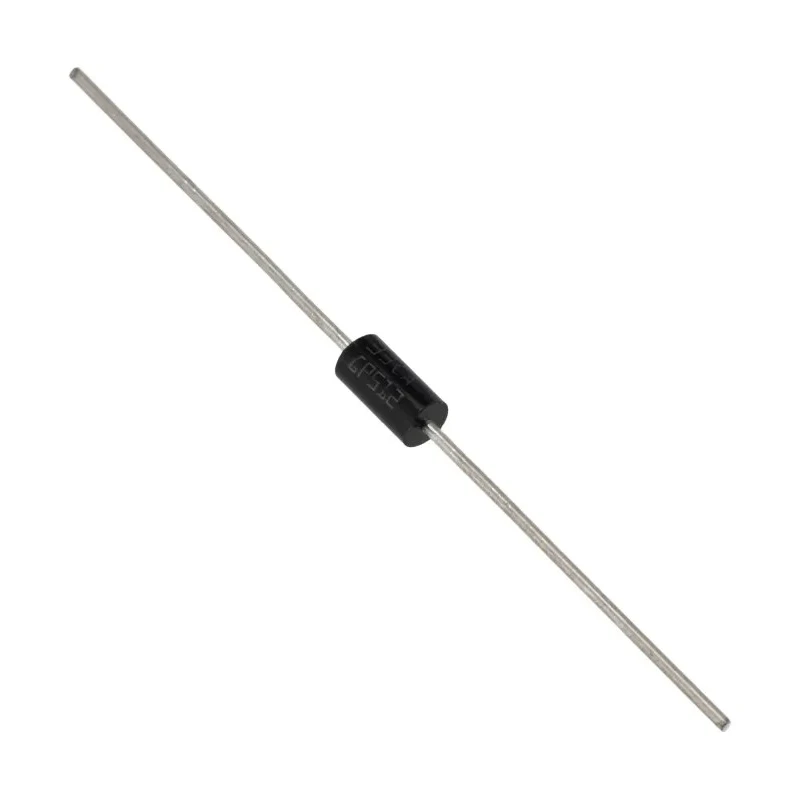

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W 2-Pin DO-15 P6KE33CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | P6KE33CA |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | P6KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 59V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 31.4V |
| Maximum Reverse Stand-off Voltage Vwm | 28.2V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 68A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode features a single element and bi-directional direction type for versatile protection.
- It has a minimum breakdown voltage of 31.4V and a maximum reverse stand-off voltage of 28.2V.
- The package type is DO-15 with a pin count of 2, suitable for through-hole mounting.
- Peak pulse power dissipation is rated at 600W with a clamping voltage of 59V.
- Temperature operability ranges from -65°C to a maximum of 175°C, suitable for harsh environments.
- The maximum peak pulse current is 68A, ensuring robust transient voltage handling.
- Compact dimensions include length 6.75mm, height and diameter both at 3.53mm.
- The maximum reverse leakage current is exceptionally low at 1μA.
Product Description
STMicroelectronics P6KE33CA is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode designed to protect electronic components and circuits from voltage transients induced by inductive load switching and lightning strikes. It supports a robust peak pulse power dissipation of 600W in a compact, through-hole DO-15 package.
This diode features a minimum breakdown voltage (Vbr) of 31.4V and a maximum reverse stand-off voltage (Vwm) of 28.2V, making it suitable for clamping voltage spikes up to 59V. The device’s bi-directional operation type provides effective TVS protection for AC and DC circuits with current handling capability up to 68A peak pulse current.
Its operating temperature range from -65°C to 175°C allows usage in demanding industrial and commercial electronic applications. The extremely low reverse leakage current of 1μA ensures minimal power loss and thermal stress during normal operation. Its compact physical dimensions (6.75mm length, 3.53mm diameter and height) make this component ideal for space-constrained PCB designs.
Common applications include power supply protection, consumer electronics safeguarding, automotive electronics (non-automotive grade), and telecommunications systems. The device is from the reputable P6KE series by STMicroelectronics, known for reliable and durable transient voltage suppression solutions.
Package type DO-15 and 2 pins allow easy insertion into through-hole layouts for enhanced circuit protection. This TVS Diode provides robust transient voltage suppression up to 600W peak pulse power. Bi-directional configuration protects circuits against surges in both polarities.
Wide operating temperature range ensures reliability in harsh environments. Low reverse leakage current minimizes energy loss and heat generation. Compact DO-15 package simplifies installation in through-hole PCBs. Applicable to industrial, telecommunications, and power electronics sectors.
Explore the range of semiconductor components at EnvMart for industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this diode is rated at 600W.
The minimum breakdown voltage (Vbr) of this diode is 31.4V.
The maximum reverse stand-off voltage (Vwm) is 28.2V.
The maximum peak pulse current for this diode is 68A.
The dimensions of this diode are 6.75mm in length and 3.53mm in both height and diameter.
This diode operates within a temperature range of -65°C to 175°C.
The diode is designed for through-hole mounting.
The clamping voltage (VC) is rated at 59V.
The maximum reverse leakage current is exceptionally low at 1μA.
This diode has a pin count of 2.
The diode configuration is single, featuring one element.
Common applications include power supply protection, consumer electronics safeguarding, automotive electronics, and telecommunications systems.
