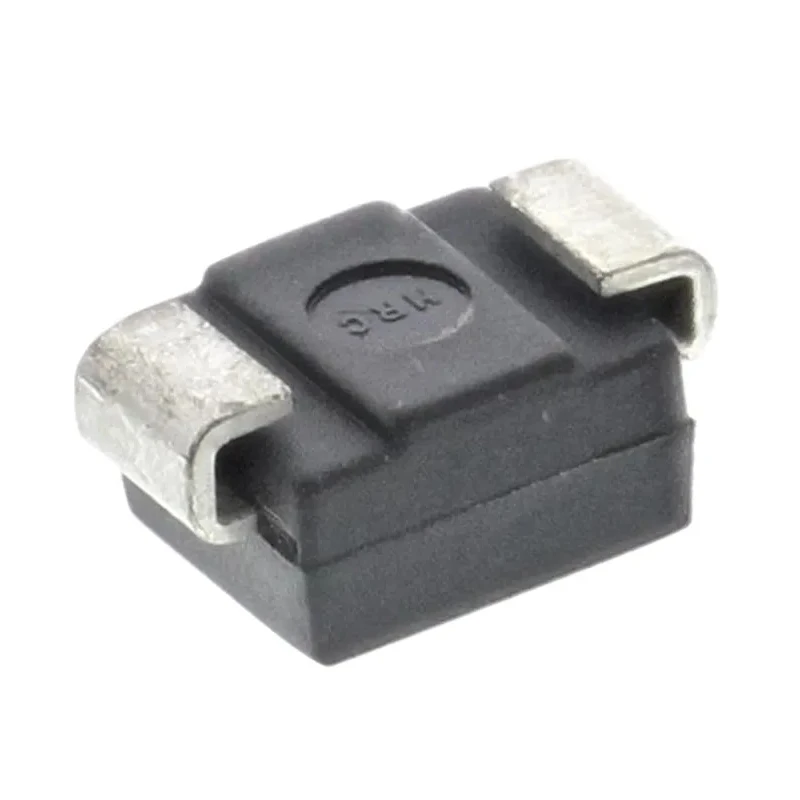

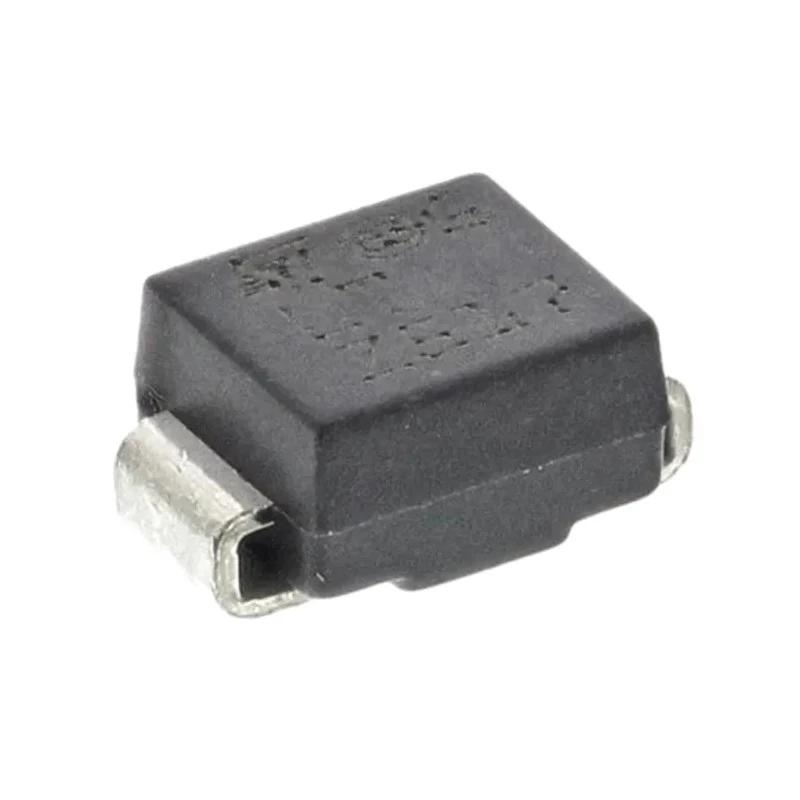

STMicroelectronics 1-Element Bi-Directional TVS Diode 600W 2-Pin DO-214 SM6T12CA
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 2.45mm |
| Length | 4.6mm |
| Model | SM6T12CA |
| Width | 3.95mm |
| Mount Type | Surface |
| Series | SM6T |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 21.7V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 11.4V |
| Maximum Reverse Stand-off Voltage Vwm | 10.2V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 184A |
| Maximum Reverse Leakage Current | 200nA |
| Bidirectional transil diode,SM15T12CABrand | STMicroelectronics |
Key Features
- This diode features a bi-directional configuration suitable for transient voltage suppression.
- Operating temperature range from -55°C to 150°C ensures reliable performance in harsh environments.
- Minimum breakdown voltage is 11.4V with a maximum reverse stand-off voltage of 10.2V.
- Maximum peak pulse current rating is 184A with low leakage current of 200nA.
- Clamping voltage is 21.7V, protecting sensitive circuits from voltage spikes.
- Compact dimensions of 4.6mm length, 3.95mm width, and 2.45mm height.
- Designed for surface mounting to optimize PCB space utilization.
Product Description
STMicroelectronics SM6T12CA is a 1-element bi-directional transient voltage suppressor (TVS) diode designed to protect electronic circuits against voltage spikes and surges. With a peak pulse power dissipation rating of 600W and a compact 2-pin DO-214 surface mount package, this diode is ideal for safeguarding sensitive semiconductor devices in electronic and electrical systems.
This TVS diode offers a minimum breakdown voltage of 11.4V and a maximum reverse stand-off voltage of 10.2V, ensuring precise clamping action at 21.7V to prevent damage caused by transient voltages. The device supports a maximum peak pulse current of 184A and exhibits a low maximum reverse leakage current of 200nA, contributing to power efficiency.
Operating securely within a temperature range from -55°C up to 150°C, it suits demanding industrial, automotive, and consumer electronics applications requiring robust surge protection. Its single-element design in a bi-directional configuration allows symmetrical voltage suppression in both directions, making it suitable for AC and DC power lines.
The compact dimensions (4.6mm length, 3.95mm width, and 2.45mm height) and surface mount package type enable easy integration into modern circuit boards, saving space and enhancing manufacturing efficiency.
This diode features a bi-directional configuration suitable for transient voltage suppression. Operating temperature range from -55°C to 150°C ensures reliable performance in harsh environments. Minimum breakdown voltage is 11.4V with a maximum reverse stand-off voltage of 10.2V.
Maximum peak pulse current rating is 184A with low leakage current of 200nA. Clamping voltage is 21.7V, protecting sensitive circuits from voltage spikes. Compact dimensions of 4.6mm length, 3.95mm width, and 2.45mm height.
Designed for surface mounting to optimize PCB space utilization.
This product is extensively used in electronics manufacturing, industrial equipment, automotive electronics, and other electrical systems where transient voltage protection is critical. The STMicroelectronics SM6T12CA is engineered to meet high reliability and quality standards, ensuring long-term device protection and integrity.
Explore more in the TVS Diode category on EnvMart to find complementary and related semiconductor protection devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak pulse power dissipation of this diode is rated at 600W.
The clamping voltage of this model is 21.7V, which helps protect sensitive circuits from voltage spikes.
This diode operates within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The dimensions of this diode are 4.6mm in length, 3.95mm in width, and 2.45mm in height.
The maximum reverse stand-off voltage of the SM6T12CA is 10.2V.
The maximum peak pulse current rating for this diode is 184A.
This model is designed for surface mounting, optimizing PCB space utilization.
The minimum breakdown voltage is 11.4V, ensuring effective clamping action.
The maximum reverse leakage current for this diode is 200nA.
The SM6T12CA features a bi-directional configuration, allowing symmetrical voltage suppression in both directions.
This diode is extensively used in electronics manufacturing, industrial equipment, and automotive electronics for transient voltage protection.
This model has a pin count of 2, suitable for its surface mount design.
