STMicroelectronics 1-Element Bi-Directional TVS Diode Surface Mount DO-214 Package 600W SM6T200CA

The STMicroelectronics SM6T200CA 1-Element Bi-Directional TVS Diode is engineered to provide reliable protection for electronic circuits against voltage transients resulting from electrostatic discharge, inductive load switching, and lightning surges. This device is rated at a peak pulse power dissipation of 600 W, capable of absorbing significant energy spikes and preventing damage to sensitive components.

Featuring a bi-directional configuration, this transient voltage suppressor can clamp voltage surges in both forward and reverse directions, making it suitable for AC and DC applications. The single diode element provides simplicity with high surge capacity and dependable performance.

With a maximum peak pulse current rating of 11.3 A and test current of 1 mA, the SM6T200CA ensures consistent protection under high transient currents. Its minimum breakdown voltage of 190 V and maximum reverse stand-off voltage of 171 V define the operating voltage limits for the device, while the clamping voltage of 353 V ensures voltage is kept within safe levels during transient events.

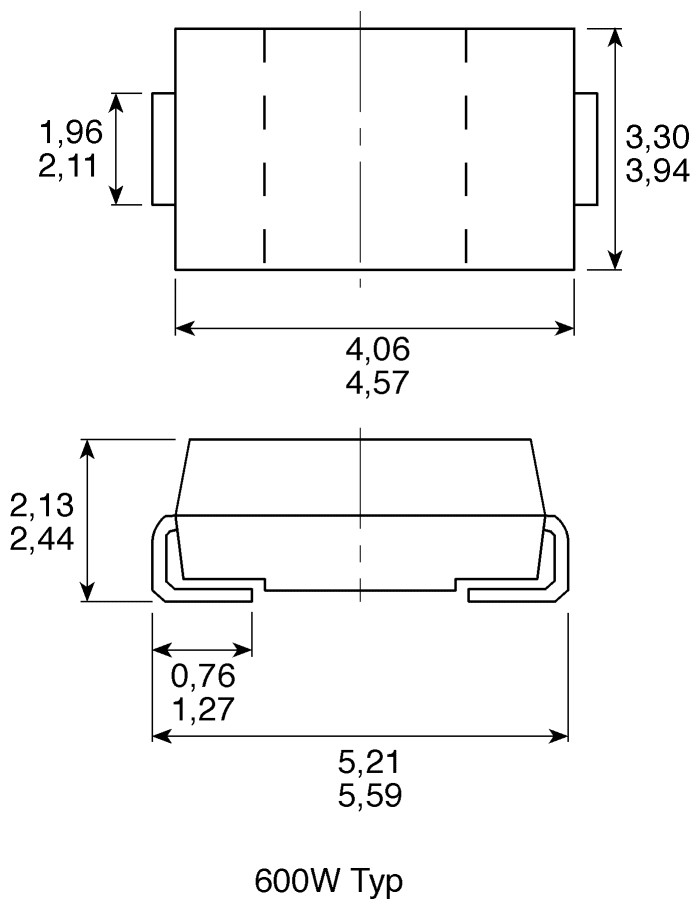

This device supports a wide operating temperature range from -55°C to 150°C, enabling use in demanding industrial, automotive, and telecommunications environments. The surface mount DO-214 package with 2 pins is designed for ease of installation in automated PCB assembly processes. Compact dimensions (length: 4.6 mm, width: 3.95 mm, height: 2.45 mm) facilitate space savings on PCB layouts.

Low maximum reverse leakage current (200 nA) ensures minimal power dissipation in normal operation, enhancing overall system efficiency. Ideal for transient voltage suppression in power supplies, data lines, and other sensitive electronic circuits, the SM6T200CA is a robust and efficient choice for reliable surge protection.

Designed for bi-directional transient voltage suppression to protect sensitive electronics. Single diode configuration enabling high reliability and efficiency. Maximum peak pulse current of 11.3 A ensures robust surge handling capability.

Can operate within temperatures from -55°C to 150°C, suitable for harsh environments. Compact dimensions of 4.6 mm length, 3.95 mm width, and 2.45 mm height enable PCB space optimization. Has a minimum breakdown voltage of 190 V and maximum reverse stand-off voltage of 171 V.

Features low maximum reverse leakage current of 200 nA to minimize power loss. Designed for surface mount assembly with 2-pin DO-214 package type. Clamping voltage at 353 V provides effective suppression during transient events.

Test current rating of 1 mA ensures validated performance. This product is suitable for industrial, telecommunications, automotive, and power protection applications where reliable suppression of transient voltage spikes is required.
