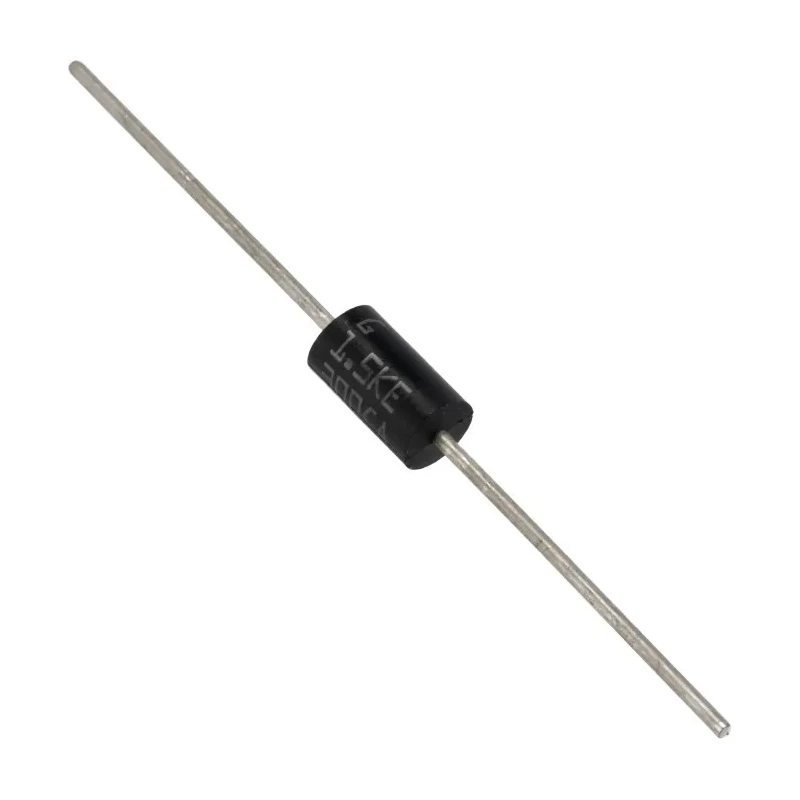

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin DO-201 1.5KE300CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE300CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 529V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 285V |
| Maximum Reverse Stand-off Voltage Vwm | 256V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 19A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- This diode features a bi-directional diode configuration for enhanced protection.
- It is housed in a through-hole DO-201 package with 2 pins.
- The minimum breakdown voltage is 285 V and the maximum reverse stand-off voltage is 256 V.
- Capable of withstanding peak pulse current up to 19 A and clamping voltage of 529 V.
- Operational temperature ranges from -65°C to 175°C for reliable performance.
- Compact dimensions of length 9.5 mm and diameter 5.3 mm for versatile applications.
- Designed for use in electronic circuits requiring transient voltage suppression.
Product Description
STMicroelectronics 1.5KE300CA is a 1-Element Bi-Directional TVS Diode engineered to provide robust transient voltage suppression with a peak pulse power dissipation of 1.5 kW. The device utilizes a single diode configuration arranged bi-directionally, ideal for protecting sensitive electronic components from voltage spikes.
Encapsulated in a durable through-hole DO-201 package featuring 2 pins, this diode offers a minimum breakdown voltage of 285 V and a maximum reverse stand-off voltage of 256 V, ensuring effective clamping at a voltage level of 529 V. It can handle a peak pulse current of 19 A, making it suitable for demanding industrial and electronic applications.
With a wide operating temperature range from -65°C to 175°C, it is designed to maintain performance under harsh environmental conditions. The compact physical dimensions (length 9.5 mm, diameter 5.3 mm) make it adaptable to various PCB layouts and circuit designs.
This transient voltage suppressor is optimal for applications in electronic circuit protection, especially in power lines and signal lines where voltage surges may occur. It does not provide dedicated ESD protection, but it is effective for transient voltage spikes in industrial electronics, telecommunications, and automotive circuits.
This diode features a bi-directional diode configuration for enhanced protection. It is housed in a through-hole DO-201 package with 2 pins. The minimum breakdown voltage is 285 V and the maximum reverse stand-off voltage is 256 V.
Capable of withstanding peak pulse current up to 19 A and clamping voltage of 529 V. Operational temperature ranges from -65°C to 175°C for reliable performance. Compact dimensions allow flexible PCB integration. Suitable for transient voltage suppression in industrial, telecommunications, and automotive systems.
Explore further STMicroelectronics products in the TVS Diode category at EnvMart for comprehensive solutions in electronic component protection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the 1.5KE300CA diode is 1.5 kW.
The minimum breakdown voltage for this diode is 285 V.
The maximum reverse stand-off voltage is 256 V.
The clamping voltage of the 1.5KE300CA is 529 V.
This diode can handle a maximum peak pulse current of 19 A.
The diode has a length of 9.5 mm and a diameter of 5.3 mm.
The operational temperature range for the 1.5KE300CA is from -65°C to 175°C.
This diode is housed in a through-hole DO-201 package.
Yes, the 1.5KE300CA features a bi-directional diode configuration.
The 1.5KE300CA has a pin count of 2.
This diode is suitable for transient voltage suppression in industrial, telecommunications, and automotive systems.
The maximum reverse leakage current for the 1.5KE300CA is 1 μA.
