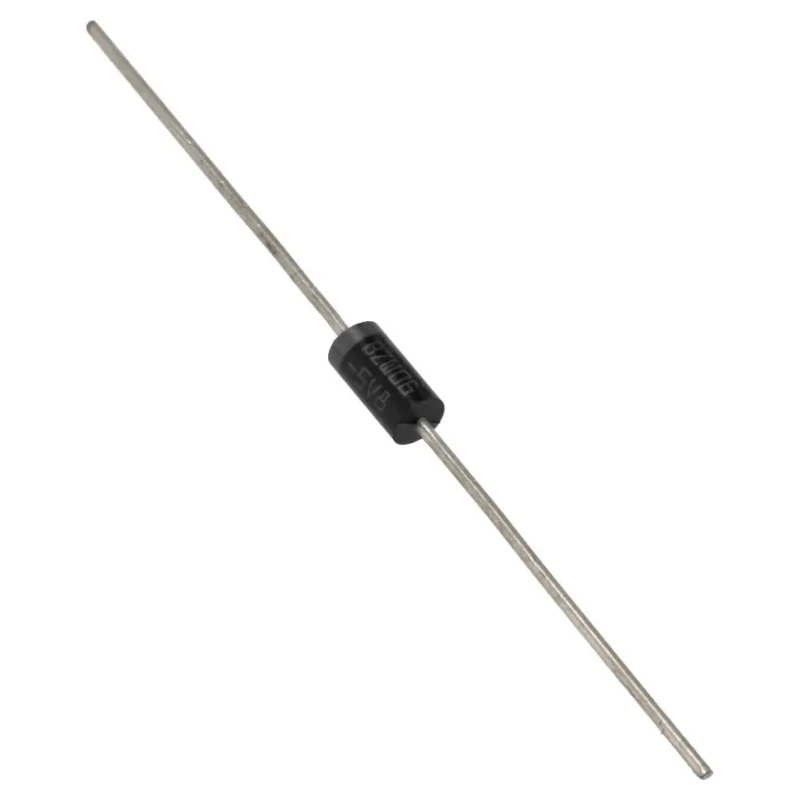

STMicroelectronics Uni-Directional TVS Diode 600W 2-Pin DO-15 BZW06-5V8
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.53mm |
| Brand | STMicroelectronics |
| Height | 3.53mm |
| Length | 6.75mm |
| Model | BZW06-5V8 |
| Width | 3.53mm |
| Mount Type | Through Hole |
| Series | BZW06 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 13.4V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6.45V |
| Maximum Reverse Stand-off Voltage Vwm | 5.8V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 298A |
| Maximum Reverse Leakage Current | 1mA |
Key Features
- Single element diode configuration for protection against voltage transients.
- Minimum breakdown voltage of 6.45 volts with a maximum reverse stand-off voltage of 5.8 volts.
- Capable of clamping voltage at 13.4 volts to safeguard sensitive electronics.
- Operates over a wide temperature range from -65°C to 175°C.
- Peak pulse current rating of 298 amps for robust transient absorption.
- Compact physical dimensions of 6.75mm length and 3.53mm diameter.
- Designed for through-hole mounting offering mechanical stability and ease of PCB assembly.
- Maximum reverse leakage current of 1mA ensuring minimal power loss in normal operation.
Product Description
STMicroelectronics BZW06-5V8 is a uni-directional Transient Voltage Suppressor (TVS) diode designed for protection of electronic circuits from voltage spikes and transients. It features a single element diode configuration packaged in a DO-15 axial through-hole form factor. With a peak pulse power dissipation rating of 600 watts, it effectively clamps transient voltages to a safe level, protecting sensitive components.
This TVS diode has a minimum breakdown voltage of 6.45 volts and a maximum reverse stand-off voltage of 5.8 volts, making it suitable for applications requiring fast response overvoltage protection. It clamps voltage at 13.4 volts and can handle peak pulse currents up to 298 amps, ensuring high transient current capability.
The device operates reliably in harsh environmental conditions with an operating temperature range from -65°C to 175°C, making it suitable for industrial and commercial electronic protection applications. Its physical size is compact, with a length of 6.75 mm and diameter of 3.53 mm, facilitating easy installation on a PCB through-hole.
Single element diode configuration for precise transient suppression. Uni-directional design ideal for DC voltage circuits. 600W peak pulse power dissipation rating. Through-hole DO-15 package for straightforward PCB mounting.
Broad operating temperature range from -65°C to 175°C. Peak pulse current up to 298 amps. Clamping voltage of 13.4 volts for effective surge protection. Low maximum reverse leakage current of 1mA ensures efficiency. Designed without automotive standard certification for general electronics use.
Typical usage includes safeguarding power supplies, communication equipment, industrial control systems, and other sensitive electronics from transient voltage damage. This part offers a reliable and compact solution for electronic circuit protection in laboratory, industrial, construction, and commercial environments.
Explore more products within the TVS Diode category at EnvMart for comprehensive transient voltage suppression solutions from trusted brands like STMicroelectronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 600 watts, allowing it to effectively clamp transient voltages to a safe level.
The maximum reverse stand-off voltage for this diode is 5.8 volts, ensuring it can handle overvoltage conditions without failure.
It has a clamping voltage of 13.4 volts, which is effective for protecting sensitive electronics from voltage spikes.
This model operates over a wide temperature range from -65°C to 175°C, making it suitable for harsh environmental conditions.
The diode can handle peak pulse currents up to 298 amps, providing robust transient absorption capabilities.
The dimensions of this model are 6.75 mm in length and 3.53 mm in diameter, facilitating easy installation in PCB applications.
This diode is designed for through-hole mounting, offering mechanical stability and ease of PCB assembly.
The minimum breakdown voltage is 6.45 volts, which is crucial for its operation in overvoltage protection applications.
The maximum reverse leakage current is 1mA, ensuring minimal power loss during normal operation.
It features a single element diode configuration, which is ideal for precise transient suppression in DC voltage circuits.
Typical applications include safeguarding power supplies, communication equipment, and industrial control systems from transient voltage damage.
This model is manufactured in India, contributing to its availability for various electronic protection needs.
