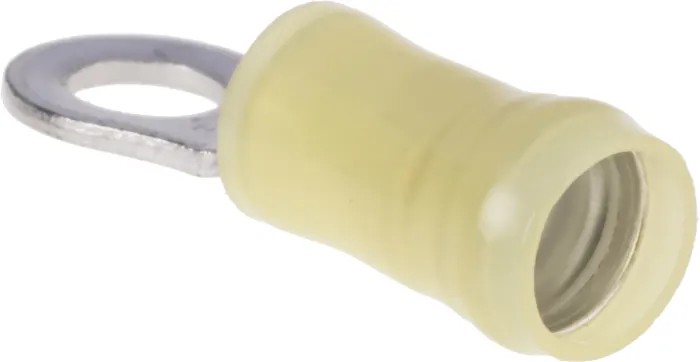

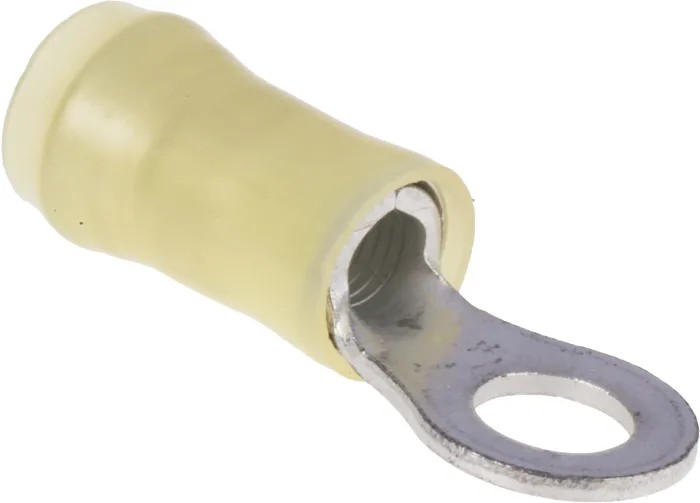

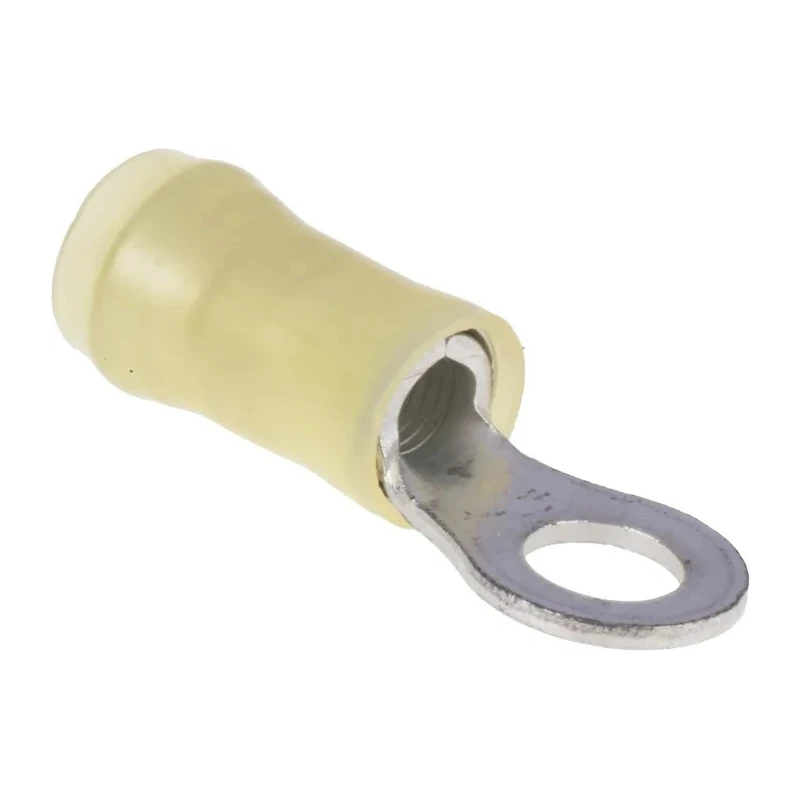

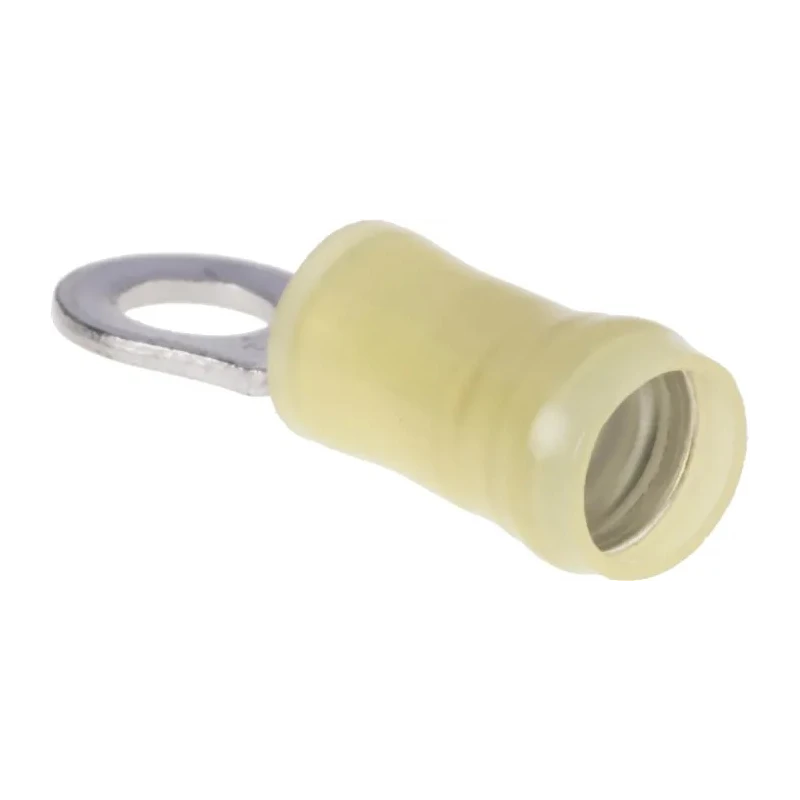

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 130171
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 130171 |
| Insulation | Insulated |
| Overall Length | 27.7mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 9.52mm |
| Inner Ring Diameter | 5.25mm |
| Stud Size | M5 |
| M5 YELLOW RINGBrand | TE Connectivity |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Pre-insulated with a yellow nylon sleeve for easy wire size identification.
- Includes serrated wire barrel for maximum tensile strength after crimping.
- Compatible with wire sizes ranging from 12 AWG to 10 AWG (2.6 to 6.6 mm²).
- Suitable for operating temperatures up to 105°C for reliable performance.
- Designed with a funnelled wire entry to facilitate quick and consistent wire insertion.
- Insulation supports wire stability and helps prevent fraying during use.
- Meets RoHS standards ensuring environmental compliance.
Product Description
TE Connectivity 130171 PIDG Insulated Ring Terminal offers robust and reliable wire termination solutions with precision-formed copper bodies and insulated yellow nylon sleeves. This ring terminal supports wire sizes 12 AWG to 10 AWG and features an M5 stud size, making it ideal for a wide range of electrical and electronic applications.
The copper contact material with tin plating ensures excellent conductivity and corrosion resistance. Serrations inside the copper barrel provide maximum contact and tensile strength after crimping, while the copper sleeve around the barrel enhances wire insulation support and prevents strand fraying. The funnelled entry design enables fast, reliable wire insertion, facilitating high-speed production environments.
High conductivity copper body with tin-plated contacts. Insulated yellow nylon sleeve for easy wire size identification. Serrated copper barrel ensures strong mechanical and electrical connection. Compatible with 12 AWG to 10 AWG wires (2.6 mm² to 6.6 mm²).
Supports operating temperatures up to 105°C. Funnelled wire entry design for efficient and consistent wire insertion. RoHS compliant materials ensuring environmentally safe production. Application areas include instruments, control panels, motors, aerospace equipment, and transportation.
This TE Connectivity PIDG Ring Terminal is engineered for durability and consistent performance in industrial, manufacturing, electrical maintenance, and HVAC applications. The product offers reliable wire termination critical for high-reliability circuits and equipment systems.
Explore more in our Electronics & Electricals category for professional-grade connectors and terminals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
It supports a maximum operating temperature of up to 105°C.
The contact material is copper with tin plating, and it features an insulated yellow nylon sleeve.
The stud size for this terminal is M5.
It features a funnelled wire entry design that enables fast and consistent wire insertion.
The overall length is 27.7 mm, with an outer ring diameter of 9.52 mm and an inner ring diameter of 5.25 mm.
The thickness of the terminal is 0.79 mm.
Yes, it is made from RoHS compliant materials, ensuring environmental safety.
It is suitable for various applications including instruments, control panels, motors, aerospace equipment, and transportation.
It includes serrations inside the copper barrel that provide maximum contact and tensile strength after crimping.
The country of origin for this terminal is India.
This terminal belongs to the PIDG series by TE Connectivity.
