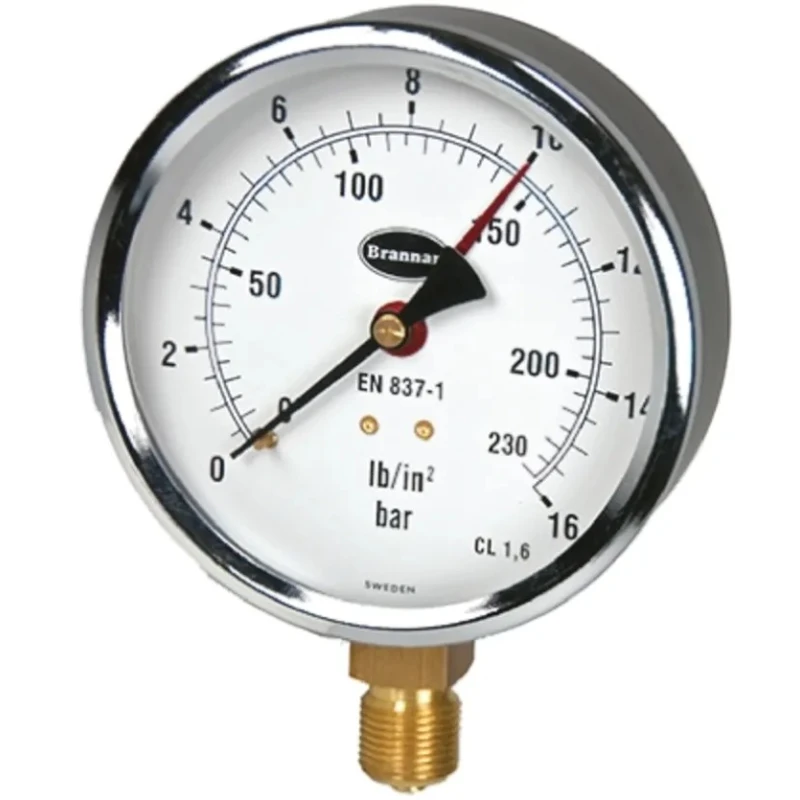

Brannan 100 mm G 3/8 Type G Pressure Gauge 16 bar 34/656/0

Brannan 34/656/0 Pressure Gauge 100 mm G 3/8 Type G Pressure Gauge with a maximum pressure measurement of 16 bar, designed for pneumatic and hydraulic applications requiring precise pressure monitoring.

This pressure gauge features a steel case construction providing resistance to harsh environments and an acrylic window ensuring clear visibility of readings. The 100 mm dial size offers dual measurement scales in bar and psi, suitable for international applications. It utilizes a phosphor bronze bourdon tube element for accuracy on sealed systems.

The gauge includes a brass G 3/8 bottom entry pressure connection conforming to Type G standards, which is common in industrial fluid power systems. It is suitable for use in conditions up to 60°C maximum operating temperature and includes a safety blowout disc to prevent damage in overpressure situations.

Certified to BS EN837 -1:1998, this pressure gauge is reliable for industrial, laboratory, HVAC, manufacturing, and fluid power system monitoring. Its design optimizes durability and long-term accuracy.

Robust steel case with acrylic window ensures durability and visibility. Dual scale dial of 100 mm diameter provides bar and psi readings. Bottom entry G 3/8 brass connection meets Type G standards. Phosphor bronze bourdon tube element used for sealed system pressure measurement.

Maximum operating temperature of 60°C supports various industrial environments. Includes safety blowout disc for operator safety during pressure surges. Compliant with BS EN837 -1:1998 for quality and calibration.

This Brannan pressure gauge is well suited for industrial machines and instruments used in measuring and testing pressure parameters. It serves applications in factories, laboratories, water treatment systems, and HVAC installations where precise pressure monitoring is essential.
