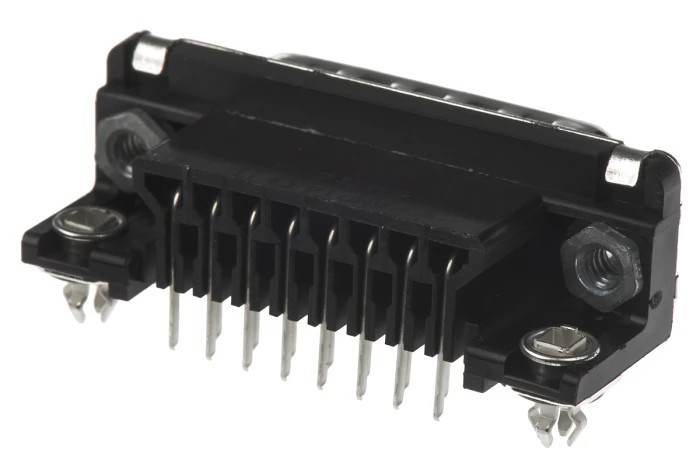

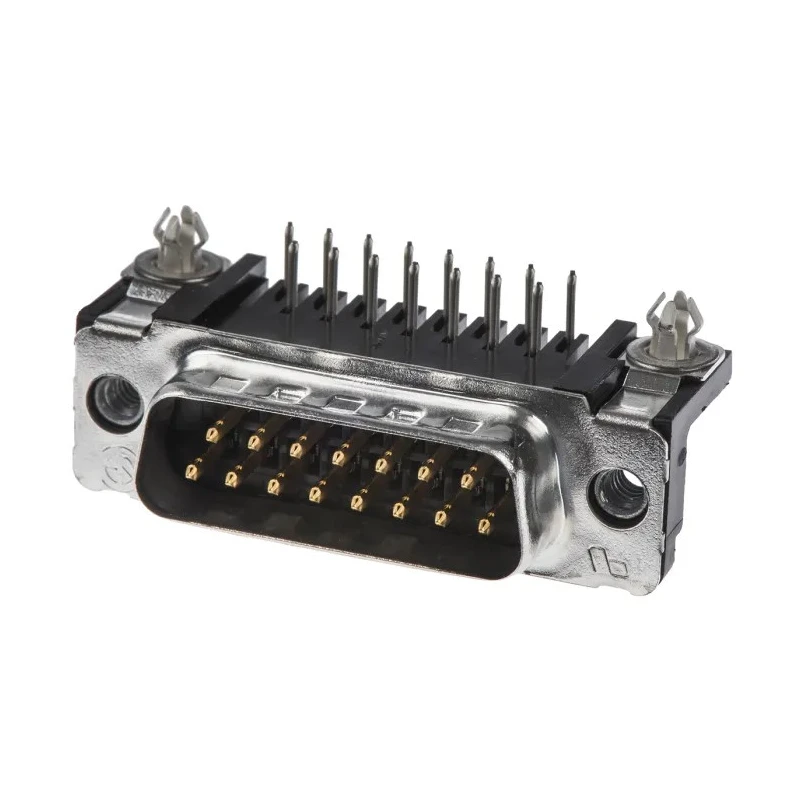

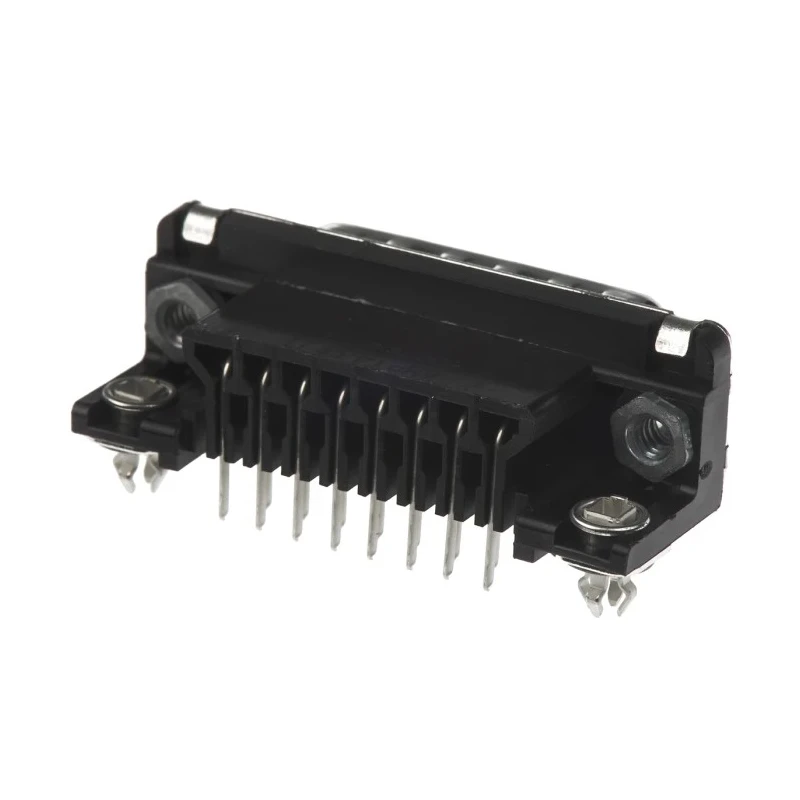

TE Connectivity AMPLIMITE HD-20 15 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 5747841-4

TE Connectivity 5747841-4 AMPLIMITE HD-20 15 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector is engineered for high-performance electronic and industrial applications requiring compact, reliable connectors.

The connector features 15 male contacts with a 2.74 mm pitch arranged at a right angle for efficient Printed Circuit Board (PCB) layout. Its robust thermoplastic housing meets 94V-0 flame retardancy standards, ensuring safety and longevity in various environments.

Mechanical mounting is reinforced by 4 to 40 UNC threaded inserts, providing a secure attachment to boards or panels. The contact materials consist of brass with gold over nickel plating, ensuring superior conductivity and resistance to corrosion over extended operational life.

Designed for solder termination, this connector assures reliable electrical contact and mechanical stability. It has a wide operational temperature range from -55°C to 105°C, making it suitable for demanding industrial, manufacturing, and electronic control system environments.

Being RoHS compliant, the product aligns with environmental regulations by limiting hazardous substances. The AMPLIMITE HD-20 series is widely adopted in applications such as industrial automation, telecommunication devices, instrumentation, and computing equipment where high density and reliability are key.

Features 15 contacts configured in a right angle orientation for space saving. Uses thermoplastic 94V-0 rated housing for robust electrical insulation. Gold over nickel plated brass contacts offer excellent conductivity and durability.

4 to 40 UNC threaded inserts ensure solid mechanical mounting. Operates efficiently in harsh temperature ranges from -55°C to 105°C. Solder termination type designed for strong and lasting connections. Complies with RoHS directives supporting eco-friendly manufacturing.

Suitable for industrial, electronic, and manufacturing system integration. Part of the well-known AMPLIMITE HD-20 connector series.

This connector is ideal for designers and engineers developing complex PCB layouts requiring reliable interfaces between components. Explore more precision connectors and related components in the Electronics Components category on EnvMart for your electronics and industrial manufacturing needs.
