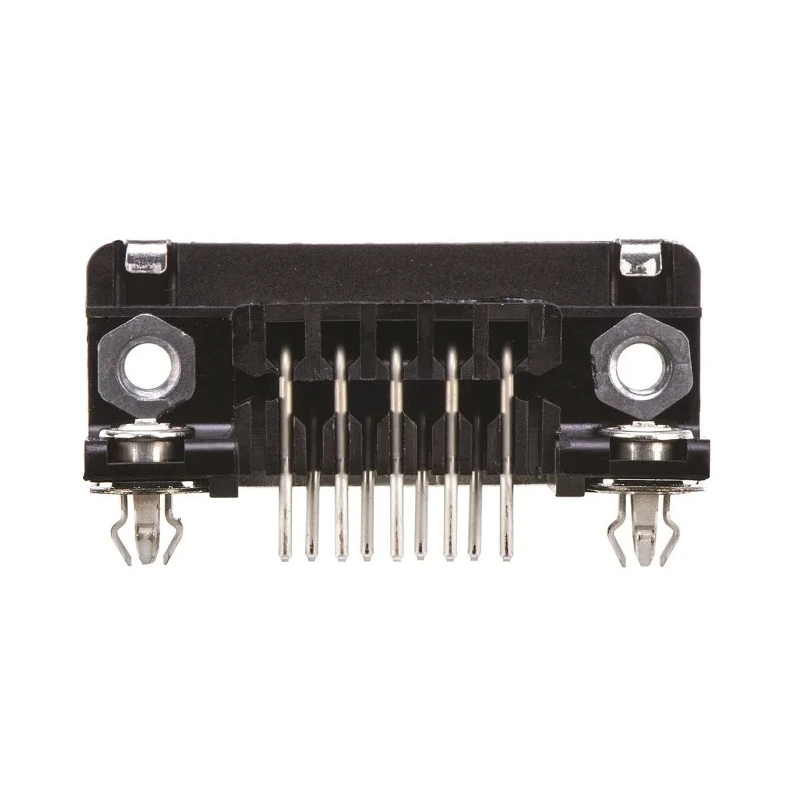

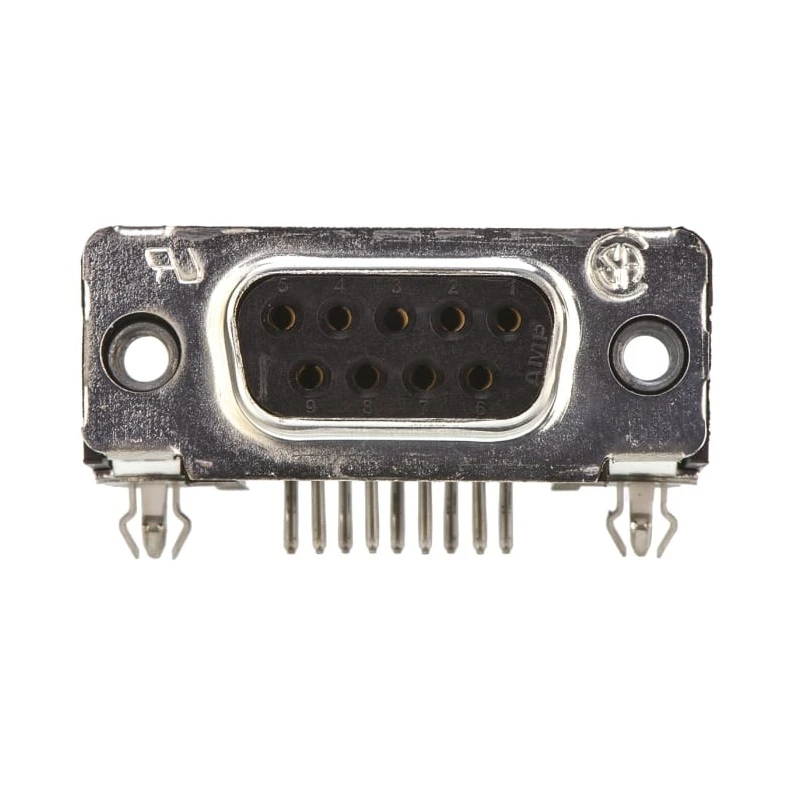

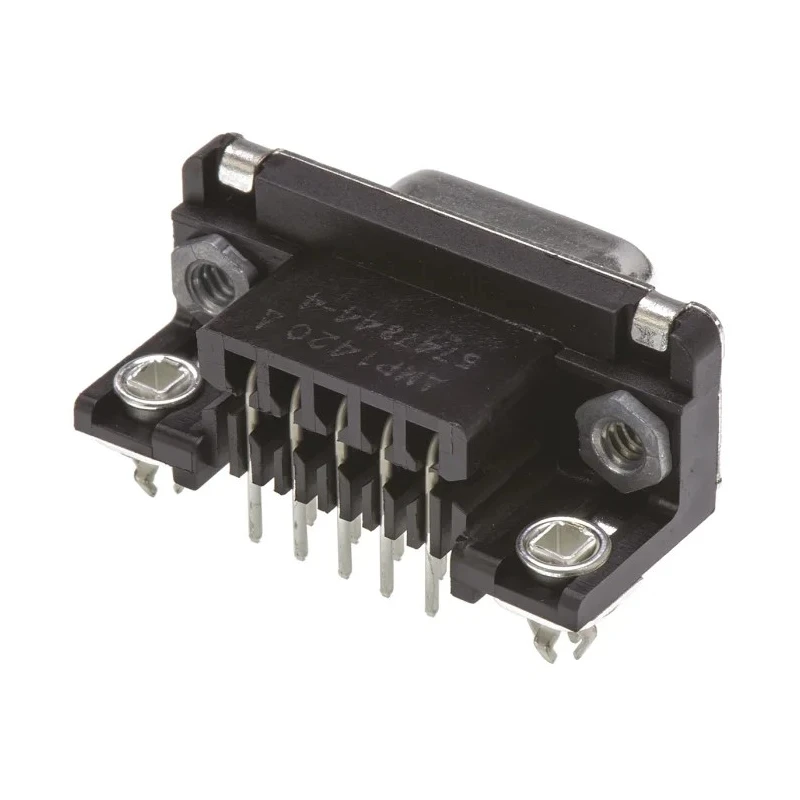

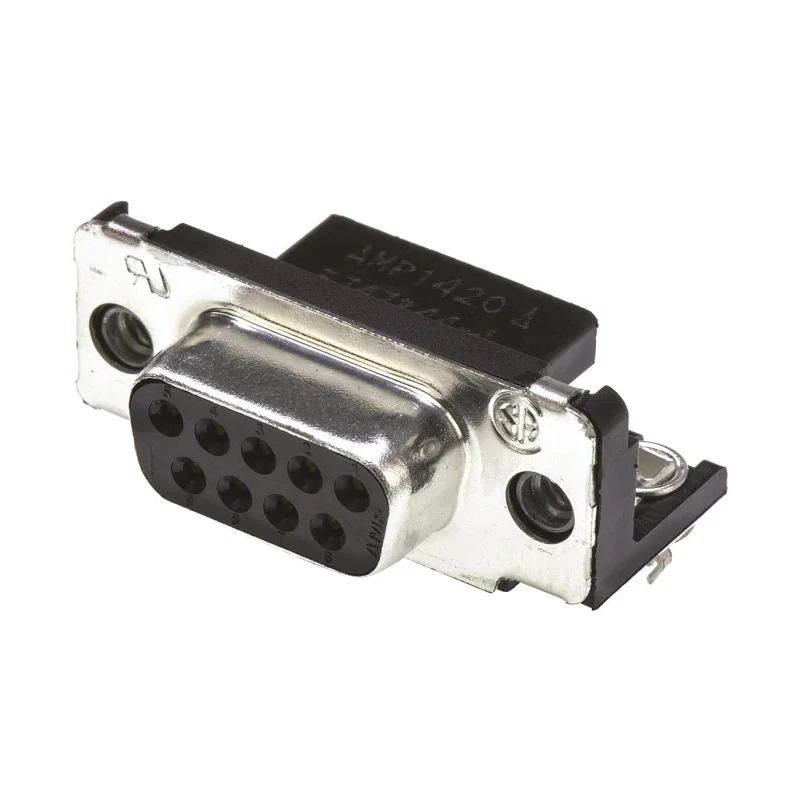

TE Connectivity AMPLIMITE HD-20 9 Way Right Angle 2.74 mm Pitch Through Hole D-Sub Connector 5747844-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | D |
Key Features
- Contains 9 female contacts for signal transmission.
- Right angle orientation supports compact PCB layouts.
- Through hole mount type ensures stable solder connections.
- Housing made of 94V-0 rated thermoplastic for durability.
- Phosphor bronze contacts plated with gold over nickel for corrosion resistance.
- Operates reliably between -55°C to 105°C temperature range.
- Includes 4 to 40 UNC threaded inserts for mounting hardware compatibility.
- Solder termination type facilitates secure electrical connections.
Product Description
TE Connectivity 5747844-4 is a high-quality AMPLIMITE HD-20 9 Way Right Angle Through Hole D-Sub Connector designed for robust electronic and industrial applications. Featuring a 2.74 mm pitch and 9 female contacts, this connector provides dependable signal integrity for PCB mounting.
This connector includes a tin plated steel shell and a 94V-0 rated thermoplastic housing that ensures durability and safety in harsh environments. The contacts are made of phosphor bronze with gold over nickel plating on the mating end for excellent conductivity and corrosion resistance. The connector's right angle orientation and through hole mount type enable easy PCB panel assembly, while its 4 to 40 UNC threaded inserts offer secure fastening options.
Temperature rating ranges from -55°C to a maximum of 105°C, making it suitable for diverse industrial, electronic manufacturing, and equipment repair scenarios. The AMPLIMITE HD-20 connectors are widely used in laboratory instrumentation, industrial control systems, automotive electronics, HVAC controls, and communication devices.
Includes 9 female contacts optimized for signal transmission. Right angle design supports space-saving PCB layouts. Threaded inserts for firm mounting with compatible hardware. Compliance with industrial safety through 94V-0 thermoplastic housing.
Gold over nickel contact plating ensures long-term reliability. Operates in wide temperature range of -55°C to 105°C. Shell and eyelets provide electromagnetic shielding and stability. Compatible with AMPLIMITE HD-20 family for modular system design.
For PCB manufacturing and assembly professionals seeking premium connectors with reliable mechanical and electrical performance, the TE Connectivity AMPLIMITE HD-20 5747844-4 model represents an optimal choice. It facilitates efficient production and long-term functionality in demanding electronic setups.
Explore additional D-Sub Connectors and industrial electronic components on EnvMart to complement this connector and enhance your manufacturing capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.74 mm.
It contains 9 female contacts for signal transmission.
The connector operates reliably between -55°C and 105°C.
This connector uses a through hole mount type for stable solder connections.
The housing is made of thermoplastic rated 94V-0 for durability and safety.
The contacts are plated with gold over nickel for corrosion resistance and conductivity.
It features a right angle orientation which supports compact PCB layouts.
Yes, it includes 4 to 40 UNC threaded inserts for mounting hardware compatibility.
The termination type is solder, facilitating secure electrical connections.
The D-Sub shell size for this model is D.
It is commonly used in laboratory instrumentation, industrial control systems, automotive electronics, HVAC controls, and communication devices.
The connector is manufactured in India.
