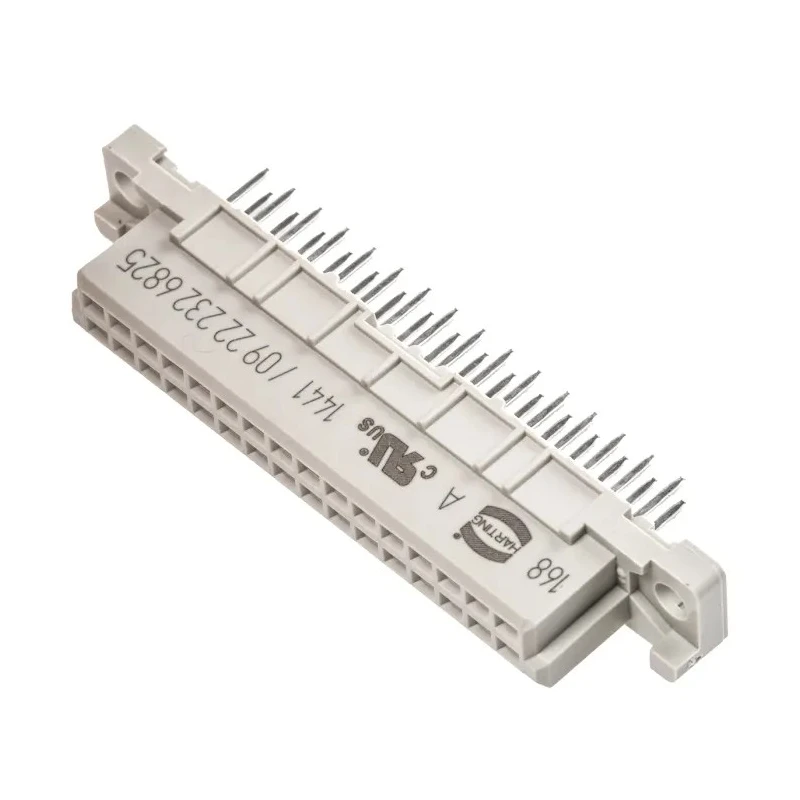

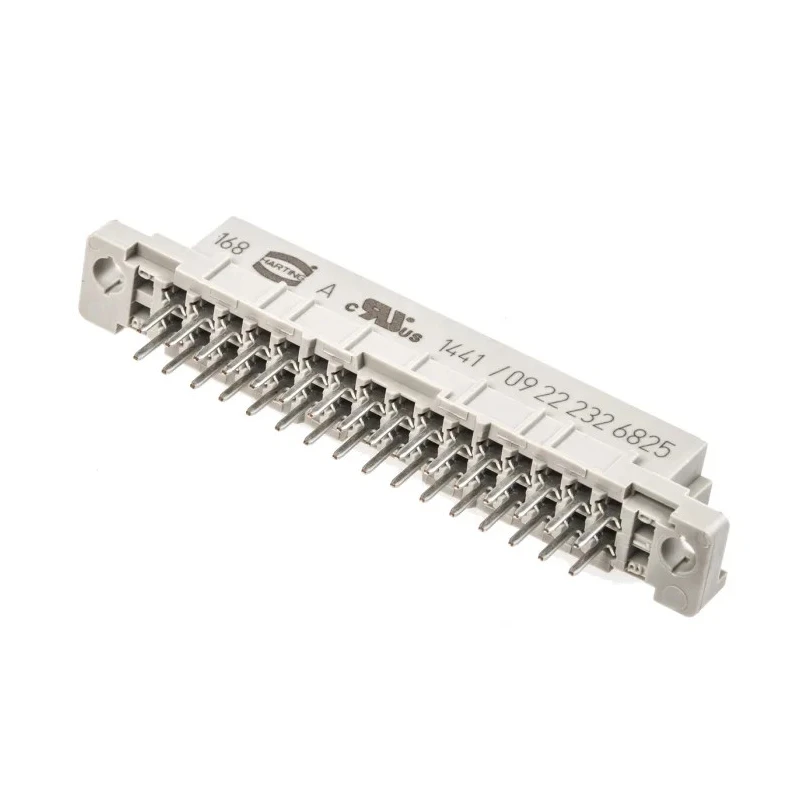

HARTING DIN 41612 32 Way 2.54 mm Pitch Through Hole Type C/2 Solder Class C2 2 Row Female Straight Connector 09222326825
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B |
Key Features
- Supports a maximum current of 2A per contact, suitable for low power signal transmission.
- Features 32 contacts arranged in 2 rows with a straight female orientation.
- Pitch spacing of 2.54 mm ensures compatibility with standard Eurocard racking systems.
- Contact plating with gold over nickel for corrosion resistance and reliable connectivity.
- Housing made from durable polybutylene terephthalate for high temperature and mechanical resistance.
- Operates effectively within a temperature range from -55°C to 125°C.
- Maximum contact resistance of 20 milliohms ensuring low electrical losses.
- Termination via solder method for secure attachment to printed circuit boards.
Product Description
HARTING 09222326825 DIN 41612 32 Way Connector is a high-quality female connector featuring a 2.54 mm pitch and two rows, designed for through hole mounting with solder termination. This connector is ideal for electronic and industrial applications requiring reliable and robust signal connections on printed circuit boards (PCBs).
The component supports up to 2A per contact, making it suitable for low power signal transmission in various electronic assemblies. The contacts are plated with gold over nickel, ensuring excellent corrosion resistance and consistent electrical performance over multiple mating cycles.
The connector's housing is made from polybutylene terephthalate, a thermoplastic resin reinforced with glass fiber, offering good mechanical strength and resistance to high temperatures with an operating range from -55°C to 125°C. The copper alloy contacts provide exceptional conductivity and long-term durability.
With a maximum contact resistance of 20 milliohms and a solder termination style, this 2-row female straight DIN 41612 connector complies with industry standards, making it perfect for integration into 19 inch Eurocard rack systems, backplane interconnections, and other electronic component assemblies.
Supports 2A max current per contact for efficient signal transmission. Solder termination ensures a secure connection to PCB. Gold over nickel plating offers corrosion resistance and reliable contact. Robust polybutylene terephthalate housing withstands wide temperature ranges.
Compliance with DIN 41612 standards for broad compatibility. Copper alloy contacts provide enhanced conductivity. Designed for 2 rows and 32 contacts for versatile circuit applications. Through hole mount type ensures mechanical stability.
This connector is widely used in industrial electronic, telecommunication, instrumentation, and control systems, providing a durable, quality interface for signal and data transmission. Its reliable construction makes it a preferred choice in demanding environments requiring dependable connectivity.
Explore additional HARTING DIN 41612 Connectors and related components for your electronic assembly needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 2A per contact, making it suitable for low power signal transmission.
The contact pitch spacing is 2.54 mm, ensuring compatibility with standard Eurocard racking systems.
The housing is made from polybutylene terephthalate, and the contacts are made from copper alloy with gold over nickel plating for corrosion resistance.
It operates effectively within a temperature range from -55°C to 125°C.
This connector features 32 contacts arranged in 2 rows.
It uses a solder termination method for secure attachment to printed circuit boards.
The maximum contact resistance is 20 milliohms, ensuring low electrical losses.
The connector has a straight orientation, designed for through hole mounting.
Yes, it complies with DIN 41612 standards for broad compatibility in electronic assemblies.
It is widely used in industrial electronics, telecommunication, instrumentation, and control systems.
The connector features an A/B row loading configuration, suitable for various circuit applications.
The country of origin for this connector is Germany.
