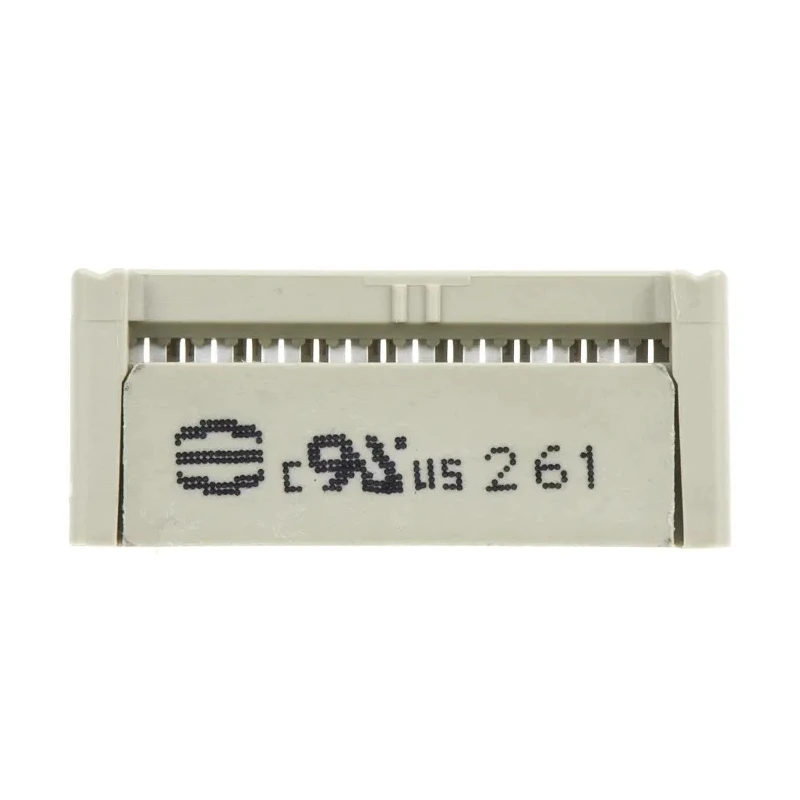

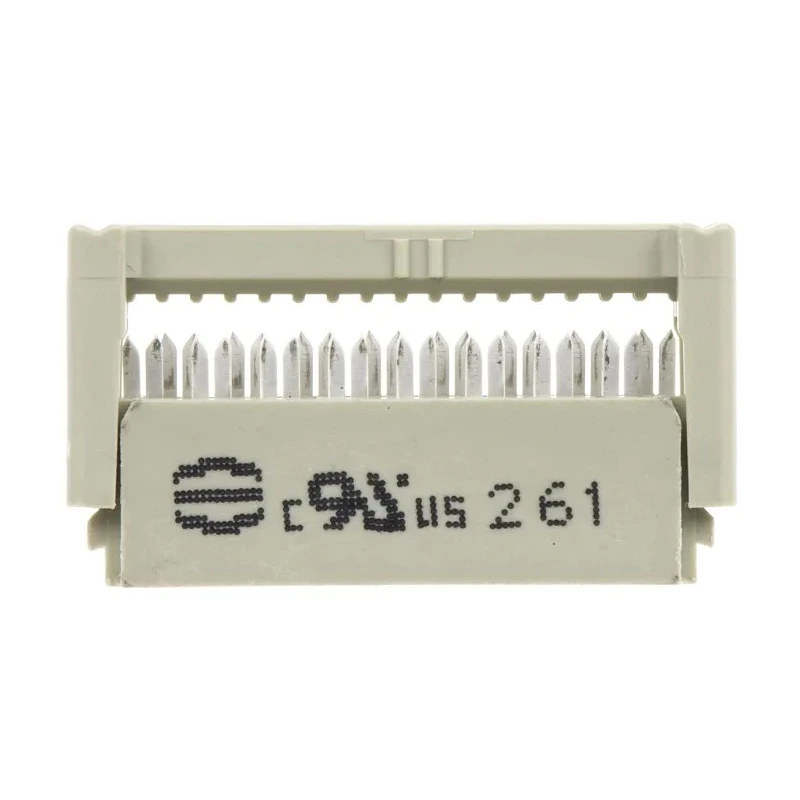

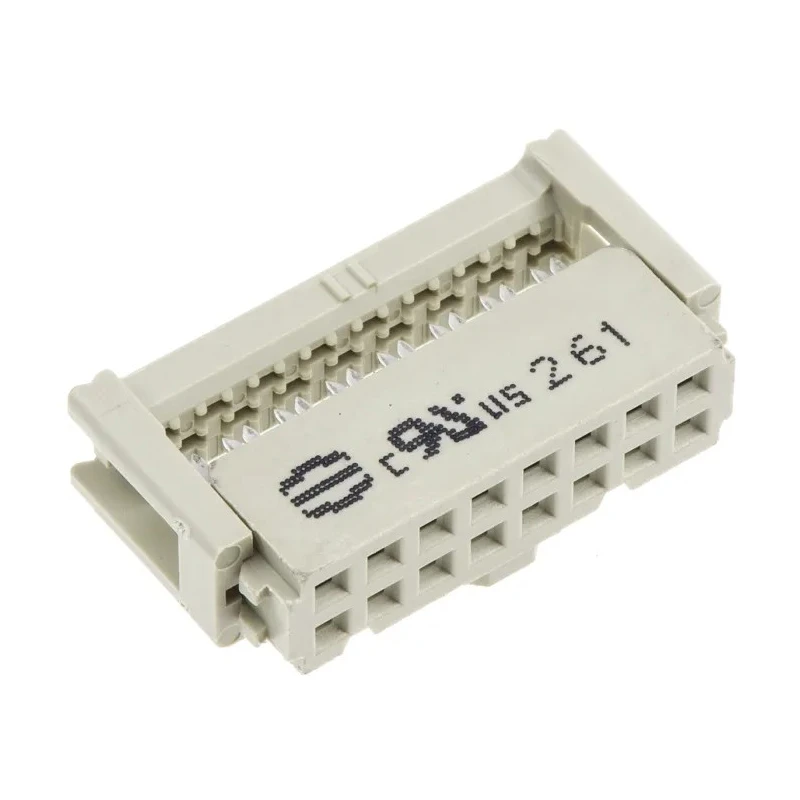

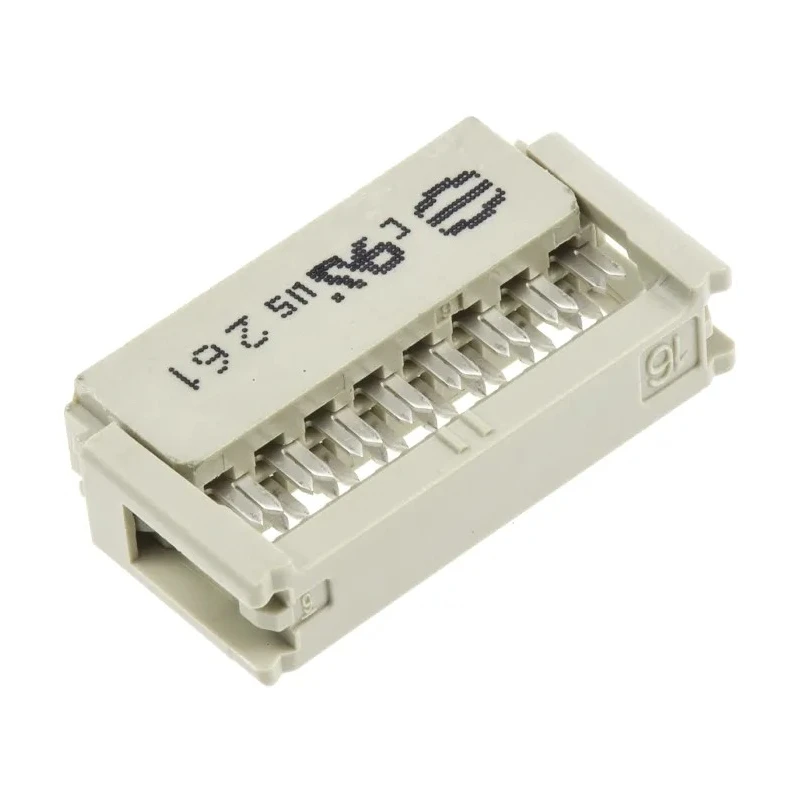

HARTING 16-Way IDC Connector Female for Cable, 2 Row, 320V AC, 2.5A, Gold Plating, SEK 18 Series 09185166803
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 320V ac |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2.5A |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | SEK 18 |
| Termination Type | IDC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
| HARTING 16-Way IDC Connector Female for Cable, 2 RowBrand | HARTING |
Key Features
- The connector features 16 contacts arranged in 2 rows for dense wiring configurations.
- Supports a current rating of 2.5 amperes and voltage of 320 volts AC for versatile use.
- Gold plating on contacts ensures excellent conductivity and corrosion resistance.
- Constructed with copper alloy contacts and polybutylene terephthalate housing for durability.
- Designed as a shrouded female connector with right-angle cable mount type.
- Operates reliably between temperatures of -55°C to 125°C.
- Termination is via IDC (Insulation Displacement Contact) method for secure cable connection.
- Part of the SEK 18 series, suitable for industrial and electronic equipment assembly.
Product Description
HARTING 09185166803 is a 16-way IDC Connector female type designed for cable mounting with 2 rows of contacts. Rated for 2.5 amps and 320V AC, it supports robust electronic connection needs in industrial environments. This connector’s gold-plated contacts provide enhanced conductivity and corrosion resistance, while the copper alloy contact material and polybutylene terephthalate housing ensure mechanical strength and reliability.
It offers a right-angle cable orientation and features shrouded contact protection to prevent accidental damage. The termination method is IDC, which allows quick and secure cable attachment without soldering. The connector belongs to the SEK 18 series, widely used for industrial and electronic applications that require dependable wire-to-board interfacing.
This product operates effectively across a broad temperature range from -55°C to 125°C, making it suitable for harsh environmental conditions. Standards compliance includes IDC per BT224, DIN41651, and IEC 603-13 among others. It is UL, CSA, MIL-C, and NFC certified, attesting to its industrial robustness.
Typical applications cover manufacturing assembly lines, electronic instrumentation, power equipment, and other sectors needing high-density, reliable connectors. Its Swiss origin assures rigorous quality control and consistent performance.
The connector has 16 contacts in 2 rows for compact wiring arrangements. Supports AC current up to 2.5A and voltage of 320V for diverse electrical systems. Contact plating with gold enhances signal integrity and durability.
Housing material is polybutylene terephthalate, providing strength and chemical resistance. Contact material is copper alloy for excellent electrical conduction. Designed for cable mount with right-angle orientation for space efficiency.
Termination by IDC facilitates fast and secure cable termination without soldering. Operates within -55°C to 125°C ensuring functionality in extreme temperatures. Part of SEK 18 series, widely used in industrial and commercial electronics.
Explore the Electronics Components category on EnvMart to find a broad selection of industrial-grade connectors, cable assemblies, and related products for professional use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 320V AC, making it suitable for various electrical systems.
It supports a current rating of 2.5 amperes, which allows for versatile use in different applications.
The contact material is copper alloy, while the housing is made from polybutylene terephthalate, providing strength and chemical resistance.
This connector operates effectively within a temperature range of -55°C to 125°C, suitable for harsh environmental conditions.
The connector features 16 contacts arranged in 2 rows, facilitating dense wiring configurations.
It utilizes the IDC (Insulation Displacement Contact) method for secure cable connections without soldering.
This model is designed with a right-angle orientation, which helps save space in tight installations.
The connector is shrouded, providing contact protection to prevent accidental damage.
It is part of the SEK 18 series, which is widely used for industrial and electronic applications.
It complies with standards including IDC per BT224, DIN41651, and IEC 603-13, ensuring reliability in industrial applications.
The connector is manufactured in Switzerland, assuring rigorous quality control and consistent performance.
Typical applications include manufacturing assembly lines, electronic instrumentation, and power equipment, requiring reliable connectors.
