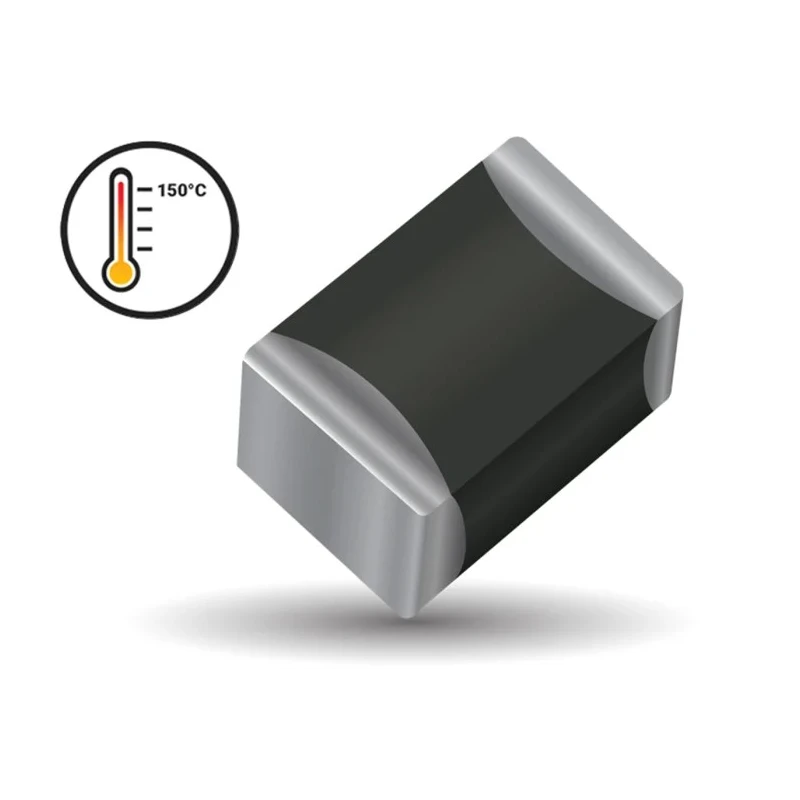

KYOCERA AVX VGAH Series Metal Multi-Layer Surface Mount Varistor 10A Clamping Voltage 65V 3.2mm x 1.7mm x VGAH120631M650DP

KYOCERA AVX VGAH120631M650DP varistor is a high temperature Metal Oxide Varistor (MOV) designed for bi-directional over-voltage protection and EMI/RFI attenuation within compact surface mount technology (SMT) packages. The device supports operation at temperatures up to 150°C, making it well suited for automotive under-hood and demanding industrial environments where temperature resilience is critical.

The varistor features a clamping voltage of 65V and clamping current of 10A, protecting sensitive electronic circuits from damaging transient voltage spikes. Its small dimensions (3.2mm length, 1.7mm height, 1.6mm depth) cater to dense circuit board layouts while maintaining robust electrical performance.

Constructed with metal materials and glass encapsulated, this component offers superior resistance against harsh environmental factors such as acidic atmospheres, salt exposure, and chlorite-based fluxes encountered during PCB assembly. The nickel barrier with 100% tin termination ensures excellent lead-free soldering and compliance with RoHS directives.

Specifically engineered for applications demanding reliable surge protection and electromagnetic interference suppression, the VGAH series varistors are suitable for automotive electronics, industrial controls, and other high-temperature scenarios. With a maximum surge current capability of 200A and energy rating of 1 joule, these varistors safeguard electronics from load dumps and surge events without sacrificing size or efficiency.

Installation is surface mount type, supporting automated pick-and-place assembly processes. The device has maximum AC voltage rating of 25V and DC voltage rating of 31V, ensuring stable performance under typical operating conditions.

Provides bi-directional over-voltage protection and EMI/RFI attenuation in a compact surface mount package. Operates reliably in temperatures up to 150°C for automotive and industrial environments. Compact size with 3.2mm length, 1.7mm height, 1.6mm depth for PCB mounting.

Supports a maximum surge current of 200A protecting circuits from transient voltage spikes. Glass encapsulation enhances resistance to corrosive and flux environments. Lead-free Ni Barrier and 100% Sn termination ensure RoHS compliance and reliable solderability.

Rated for maximum AC voltage of 25V and DC voltage of 31V. Energy rating of 1 joule to sustain surge events in automotive and industrial use cases. Ideal for under-hood automotive electronics and high-temperature industrial applications.

Explore the range of KYOCERA AVX Varistors at EnvMart for reliable high temperature surge protection solutions suitable for electronic component designers, automotive system integrators, and industrial equipment manufacturers.
