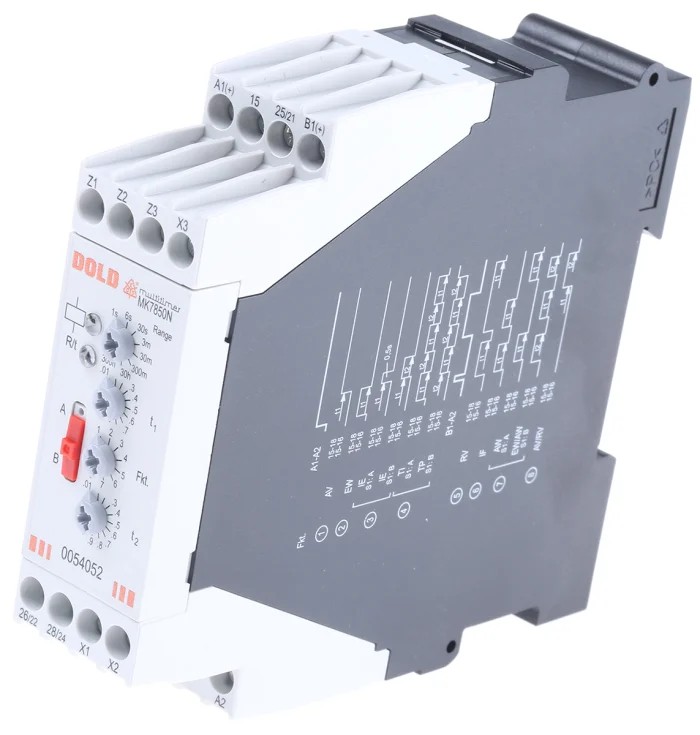

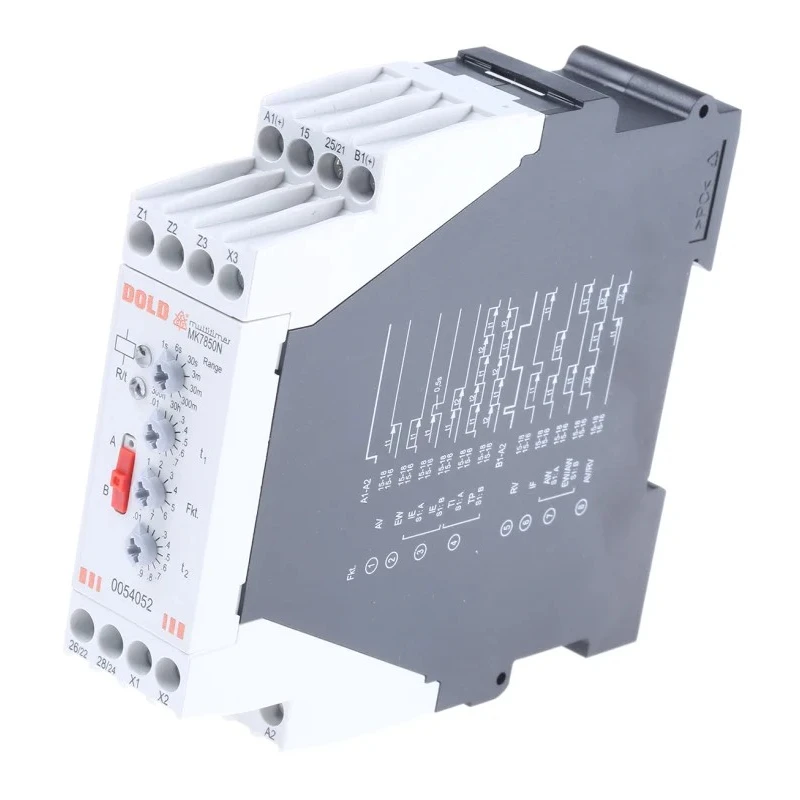

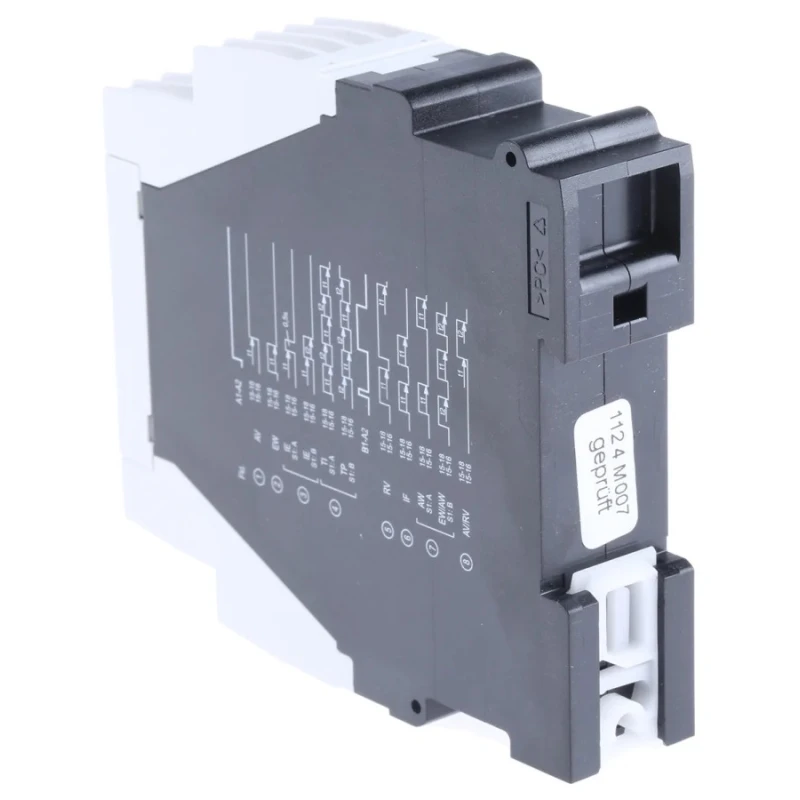

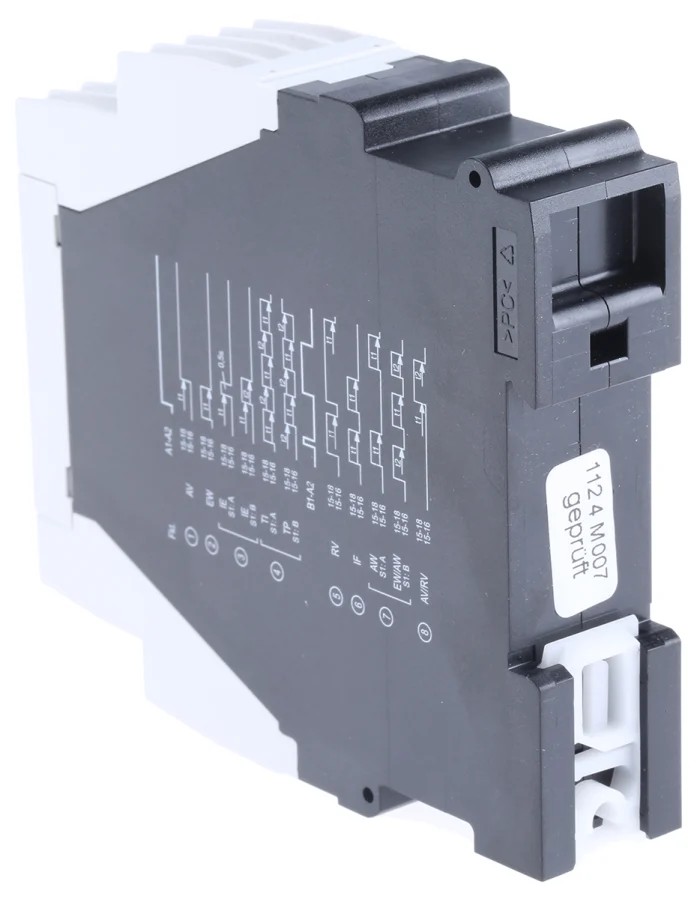

Dold MK 7850N Series DIN Rail Timer Relay, 2-Contact, DPDT, 12 to 240 V AC/DC, 0.06 MK7850N.82/500 AC/DC12-240V 0.02S-300H

The Dold MK 7850N Series DIN Rail Timer Relay, model MK7850N.82/500 AC/DC12-240V 0.02S-300H, is a versatile multifunction timer relay designed to provide precise timing operations in industrial and automation environments. It supports a broad voltage supply range of 12 to 240 V AC/DC, making it suitable for diverse electrical applications.

This timer relay features two changeover (DPDT) contacts, offering reliable switching of up to 4A at 250V. Its multifunction capability includes eight time functions selectable through a rotary switch, catering to various timing requirements. The timer ranges include short intervals of 0.06 to 30 seconds, longer durations of 3 to 300 hours, and 0.03 to 300 minutes for flexible use cases.

For ease of configuration, the device includes an LED indication system that assists in time adjustment and operational feedback. Its IP40 protection rating and operational temperature range from -20°C to 60°C ensure dependable performance in industrial environments.

The MK 7850N timer relay mounts conveniently on standard DIN Rails and has compact dimensions of 97 mm in height, 90 mm in length, and 22.5 mm in width, optimizing panel space. Screw terminals provide secure and straightforward wiring connections.

This timer relay is compliant with a comprehensive set of international standards including IEC/EN 60 529, IEC/EN 61 000 series, UL, and DIN standards, assuring safety and reliability in demanding applications.

Typical use cases include automation systems, industrial machinery control, HVAC timing operations, and electrical control panels requiring accurate timing functions. This timer relay operates within a wide voltage range of 12 to 240 V AC/DC.

It features multi-function timer modes with eight selectable functions via rotary switches. The time delay ranges from 0.06 seconds to 30 seconds, 3 to 300 hours, and 0.03 to 300 minutes for versatile applications. Equipped with LED indicators for easy time setting and status monitoring.

Built with IP40 rating and supports operating temperatures from -20°C to 60°C. Comes with a compact DIN Rail mount form factor with dimensions 97mm height, 90mm length, and 22.5mm width. Contact current rating is 4A, suitable for various industrial control systems.

Terminal connections use screw type for reliable wiring. Designed for industrial, automation, electrical, and HVAC control applications.

Enhance your automation and control systems with the Dold MK 7850N multifunction DIN Rail timer relay. Browse more products in the Timer Relay category at EnvMart for comprehensive solutions.
