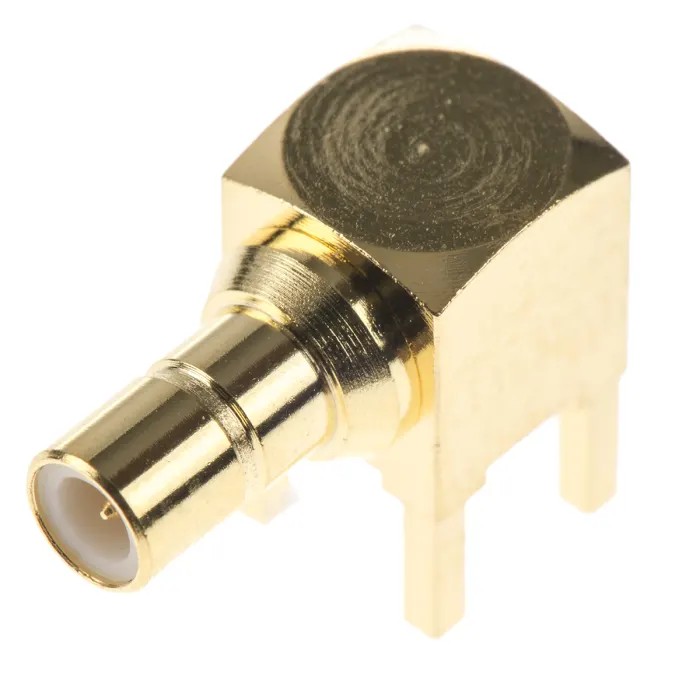

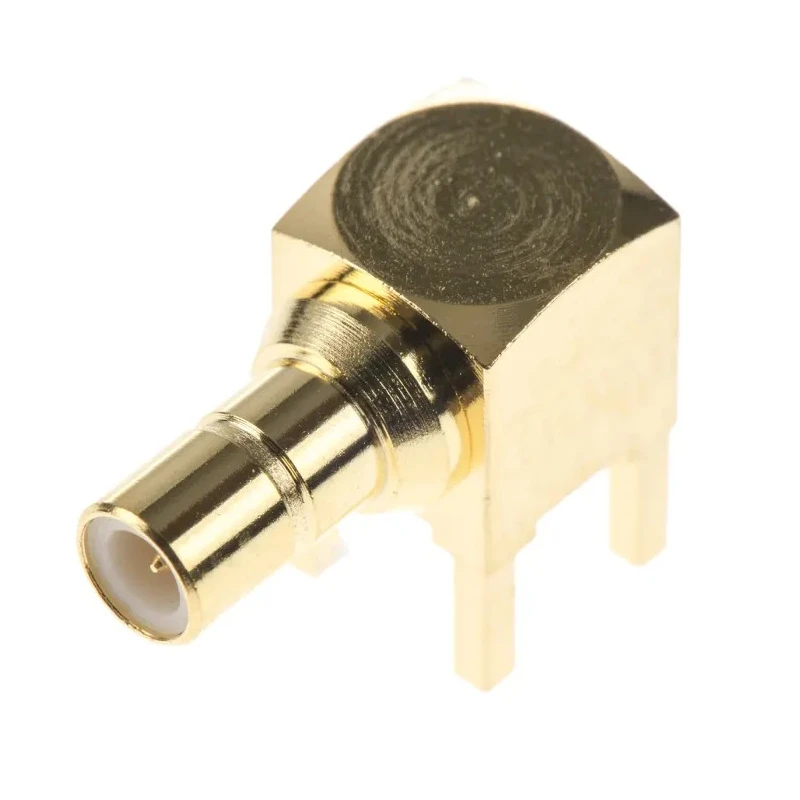

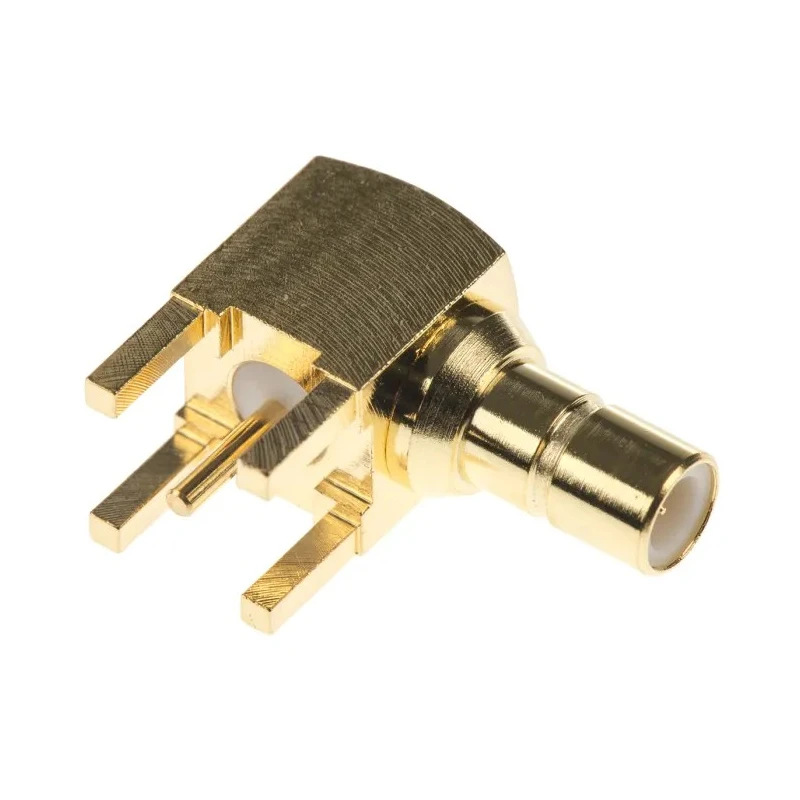

RS PRO SMB Series Coaxial Connector Through Hole Female, 50 Ω, Right Angle Body, Solder Termination 1-1337481-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | SMB |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- Features a solder termination type for secure connections.
- Gold-plated brass body and centre contacts ensure excellent conductivity and corrosion resistance.
- Supports operating frequency up to 4 GHz for high-frequency signal transmission.
- Body orientation is right angle to facilitate PCB mounting in tight spaces.
- Operates reliably within a temperature range of -65°C to 165°C.
- Standard size with a 6.35mm flange and snap-on coupler style for easy installation.
- Contact material is brass, plated with gold to enhance durability and performance.
- Polarity is normal, suitable for typical coaxial applications.
Product Description
TE Connectivity 1-1337481-0 SMB series coaxial connector is a high-quality, professional-grade female connector designed for through hole PCB mounting. It features a right angle body and supports 50 ohm impedance, which makes it ideal for RF and communication equipment applications.
The connector is constructed with a gold-plated brass body and gold-plated brass centre contacts that offer excellent conductivity and corrosion resistance to ensure signal integrity. It uses a solder termination method, providing a secure and reliable connection.
Operating reliably within a wide temperature range of -65°C to 165°C, this connector supports frequencies up to 4 GHz, suitable for high-frequency signal transmissions in professional and industrial environments.
The SMB series connectors come with a standard size including a 6.35mm flange and feature a snap-on coupler style to facilitate easy installation. The polarity is normal and the connector is designed specifically for coaxial cable use, making it indispensable for electronics, communication, and RF applications.
Features solder termination for secure connections. Gold-plated brass body and centre contacts for durability. Supports operating frequency up to 4 GHz. Right angle body orientation for PCB mounting. Wide operating temperature range from -65°C to 165°C.
Standard size with 6.35mm flange and snap-on coupler. Gold-plated brass contact material. Normal polarity suitable for coaxial cable use. Ideal for industrial, laboratory, communication, and electronic applications.
This TE Connectivity SMB series Coaxial Connector 1-1337481-0 is an essential component for professionals requiring reliable RF connector solutions. Explore more connectors and components in the Electronics Components category at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports an operating frequency of up to 4 GHz, making it suitable for high-frequency signal transmissions.
It operates reliably within a temperature range of -65°C to 165°C, accommodating various environmental conditions.
This connector features a solder termination type, providing secure and reliable connections.
The connector has an impedance of 50 ohms, which is standard for RF applications.
It is constructed with a gold-plated brass body and gold-plated brass centre contacts, ensuring excellent conductivity and corrosion resistance.
This model features a right angle body orientation, facilitating PCB mounting in tight spaces.
The connector comes with a standard size flange measuring 6.35mm, which aids in installation.
It is designed specifically for use with coaxial cables, making it suitable for various RF applications.
The connector has a normal polarity, which is typical for coaxial applications.
This model is designed for through hole mounting, making it easy to install on PCBs.
This connector is part of the SMB series, which is known for its reliability in RF and communication applications.
The country of origin for this connector is India.
