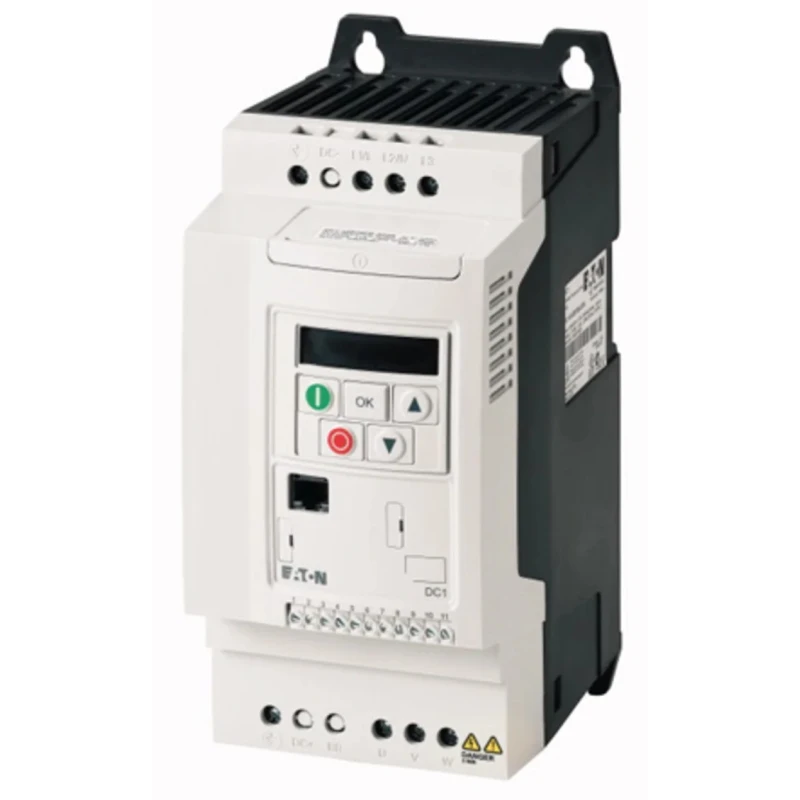

Eaton Inverter Drive, 2.2 kW, 1 Phase, DC1 Series Vector Control, 230V 10.5A 50Hz 185815 DC1-12011FB-A20CE1

Eaton 185815 DC1-12011FB-A20CE1 inverter drive is a compact and high-performance variable frequency drive designed for industrial and automation applications requiring precise motor control with a 2.2 kW power rating. Featuring a single-phase 230V AC input and capable of delivering a maximum output current of 10.5 A, this inverter drive uses vector control technology to efficiently manage asynchronous motors.

This DC1 series inverter from Eaton is engineered for quick and straightforward commissioning thanks to its simplified interface and only 14 configurable parameters. Its compact footprint with dimensions of 107 mm length, 152 mm width, and 231 mm depth, combined with an IP20 protection rating, makes it suitable for mounting in various industrial control panels through a flange mount.

The drive includes an integrated digital LED display for on-site monitoring and supports CANopen and Modbus communication protocols, enabling seamless integration into automated systems. It provides a fixed output frequency of 50 Hz, making it ideal for standard industrial motor control tasks.

Designed with robust thermal management, it reliably operates in ambient temperatures ranging from 50°C minimum up to +50°C maximum. The inverter drive offers a high overload capacity, capable of 150% load for 60 seconds and 175% for 2 seconds, supporting temporary motor overloads common in applications like fans, pumps, and conveyors.

The Eaton PowerXL DC1 series is tailored for mass production applications where simplicity and performance must combine. It is a Better World product, contributing to energy savings and sustainability goals.

Features vector control drive type with 10.5 A maximum output current. Compact dimensions with overall length 107mm, width 152mm, and depth 231mm. IP20 rated enclosure suitable for industrial environments. Supports asynchronous motor compatibility and fixed output frequency of 50Hz.

Equipped with digital LED display and supports CANopen and Modbus communication. Designed for fast commissioning with only 14 basic parameters. High overload capability: 150% for 60 seconds and 175% for 2 seconds. Mount type is flange for secure installation.

Operates reliably from 50°C minimum to +50°C maximum temperature range.

This inverter drive is widely used in industrial automation, machine building, HVAC, water treatment, and manufacturing environments where reliable motor speed control is essential. Eaton stands as a trusted global brand known for quality and innovation in electrical and automation products.
