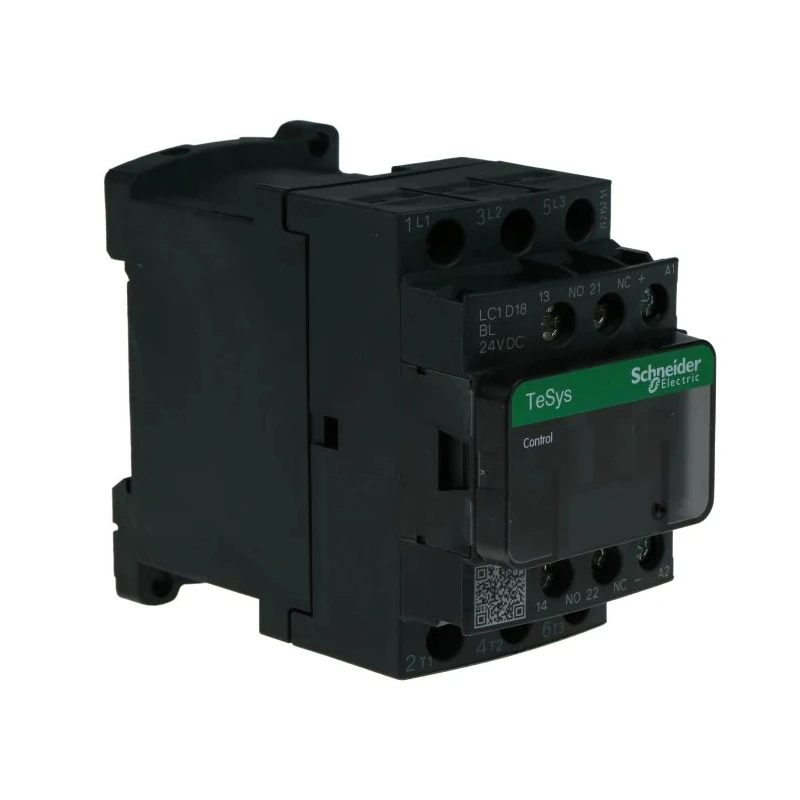

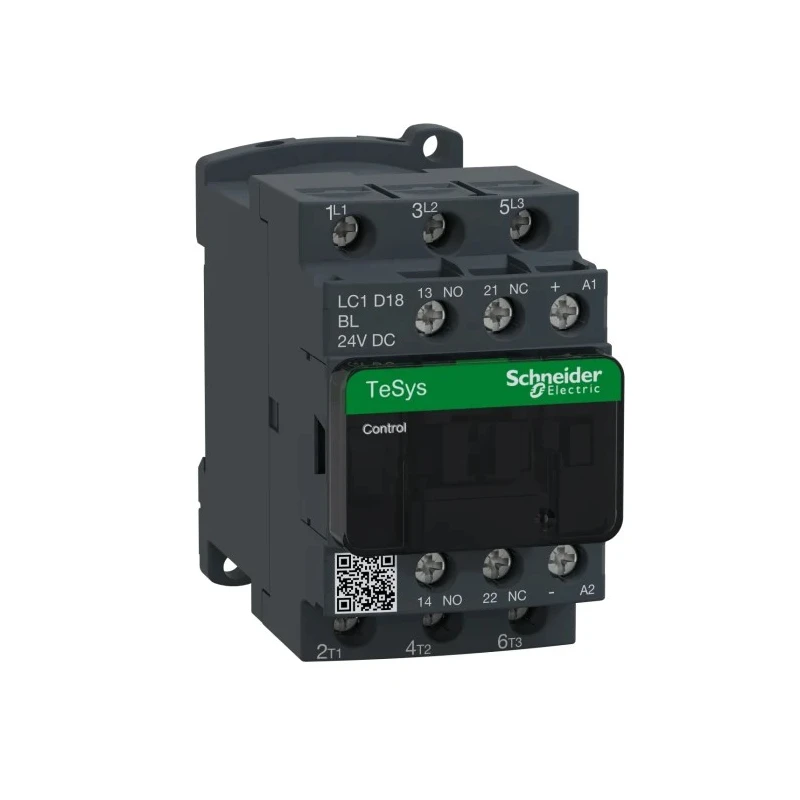

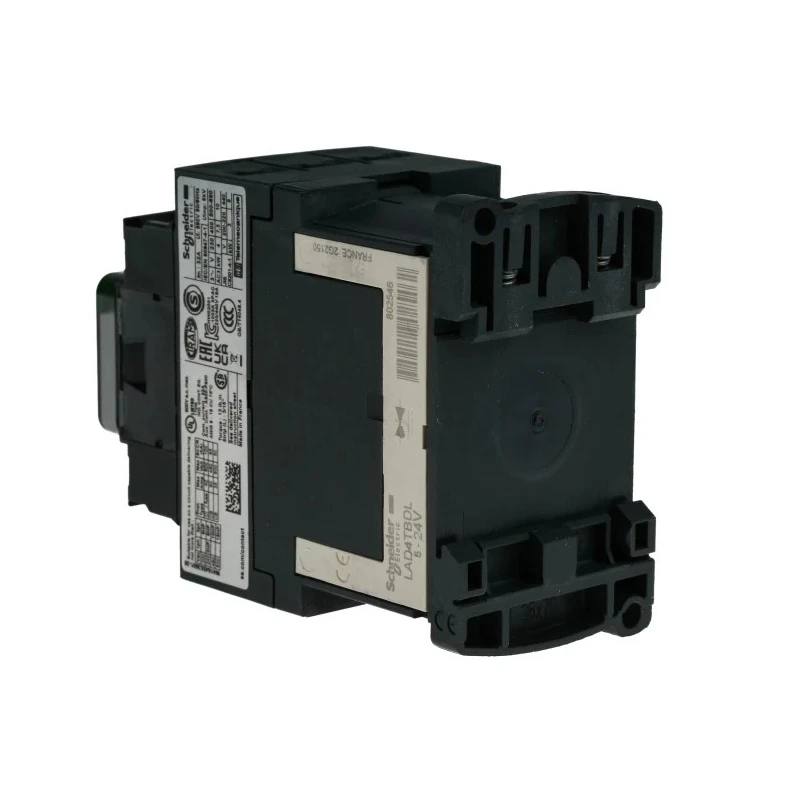

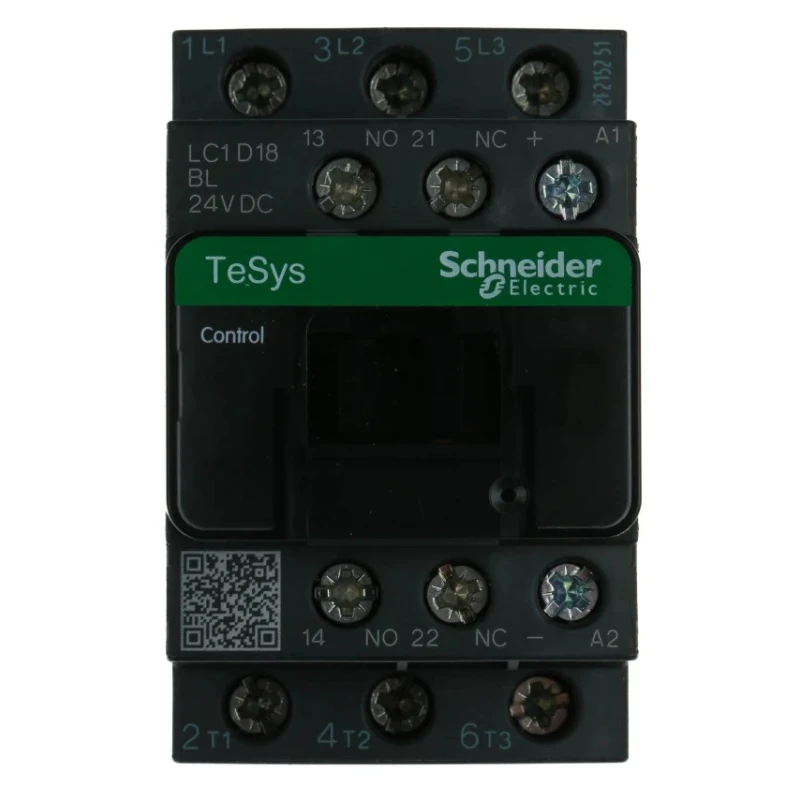

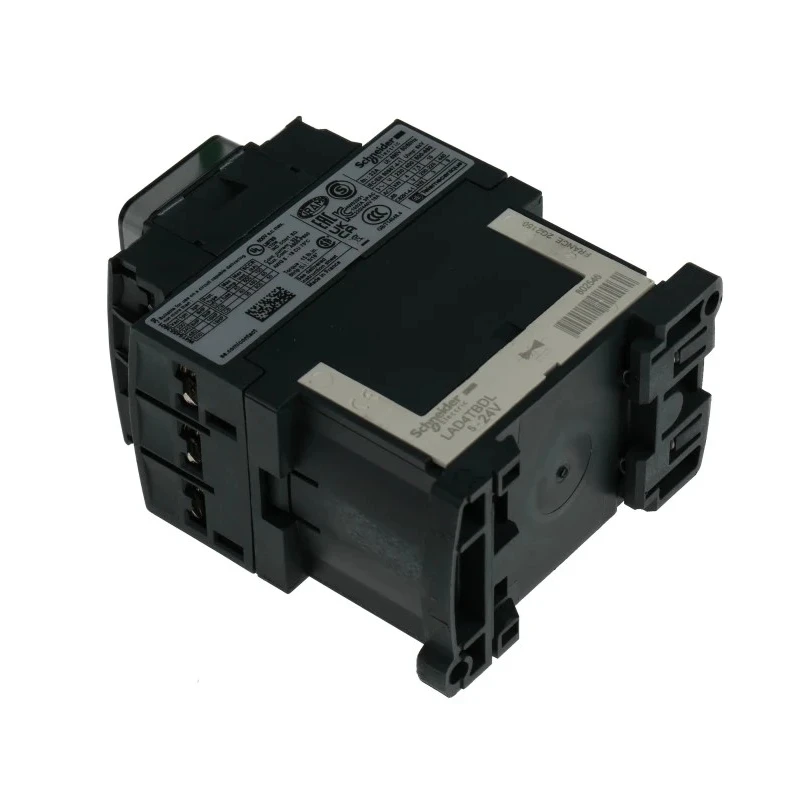

Schneider Electric 3-Pole 18 A Contactor, 24V DC Coil, 7.5 kW Power Rating, 690V AC LC1D18BL
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D18BL |
| Depth | 93mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for DIN rail mounting for easy integration.
- Operating temperature range from -5°C to 60°C enables use in harsh environments.
- Rated contact current is 18 A with 690V AC contact voltage.
- Mechanical durability tested for 30 million cycles ensures long service life.
- Equipped with 3 normally open main contacts and 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Screw terminal type with IP20 finger-safe protection for safe handling.
- Applications include lighting fixtures, automotive engineering, electric motors, and industrial pumps.
- Resistant to shock and vibration, suitable for industrial settings.
Product Description
Schneider Electric LC1D18BL 3-Pole Contactor features a 24V DC coil, suitable for motor control and resistive loads with a power rating of 7.5 kW and contact voltage of 690 V AC. This device supports reliable and safe operation across industrial, manufacturing, HVAC, and automotive applications.
Designed for DIN rail mounting, it ensures quick and convenient installation in control panels. The contactor operates within an ambient temperature range of -5°C to 60°C, delivering robust performance even in demanding environmental conditions.
This contactor offers 18 A contact current and features 3 normally open main contacts (3 NO) along with 2 auxiliary contacts configured as 1 normally open and 1 normally closed (1 NO/1 NC). Screw-type terminals provide IP20 finger-safe protection, facilitating safe electrical connections.
The mechanical durability rating of 30 million cycles guarantees extended operational life, while built-in overvoltage protection minimizes risks of electric fires and component damage due to overheating or transient voltages.
It complies with multiple international standards, including CCC, CSA, EAC, IEC, RoHS, and UL certifications, ensuring quality and safety compliance across different markets. Common industrial applications include lighting control, automotive engineering equipment, electric motor switching, and operation of industrial pumps.
Designed for DIN rail mounting, allowing easy panel integration. Operates safely between -5°C and 60°C ambient temperatures. Rated for 18 A contact current at 690 V AC for heavy-duty loads. Long mechanical life with 30 million durability cycles.
Includes 3 NO main contacts and auxiliary contacts for enhanced switching capabilities. IP20 screw terminals provide finger-safe electrical connection security. Overvoltage protection minimizes risk of electrical fires and damage.
Compliant with CCC, CSA, EAC, IEC, RoHS, and UL standards. Suitable for controlling lighting, motors, pumps, and automotive applications. Explore more Schneider Electric Contactors and control gear at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 7.5 kW.
The rated contact current for this model is 18 A.
The coil voltage for this contactor is 24V DC.
This contactor supports a maximum contact voltage of 690V AC.
It features 3 normally open main contacts.
The contactor uses screw-type terminals with IP20 finger-safe protection.
The operating temperature range is from -5°C to 60°C.
The mechanical durability of this contactor is rated for 30 million cycles.
This model is designed for DIN rail mounting, facilitating easy installation.
It complies with CCC, CSA, EAC, IEC, RoHS, and UL standards.
This contactor is suitable for applications such as lighting control, electric motors, and industrial pumps.
It has 2 auxiliary contacts configured as 1 normally open and 1 normally closed (1 NO/1 NC).
