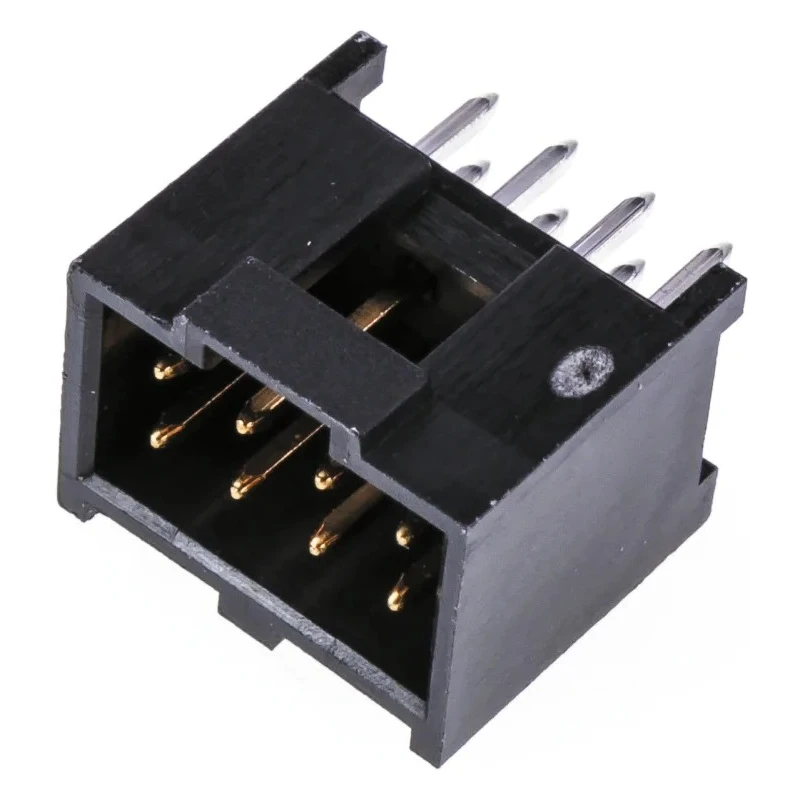

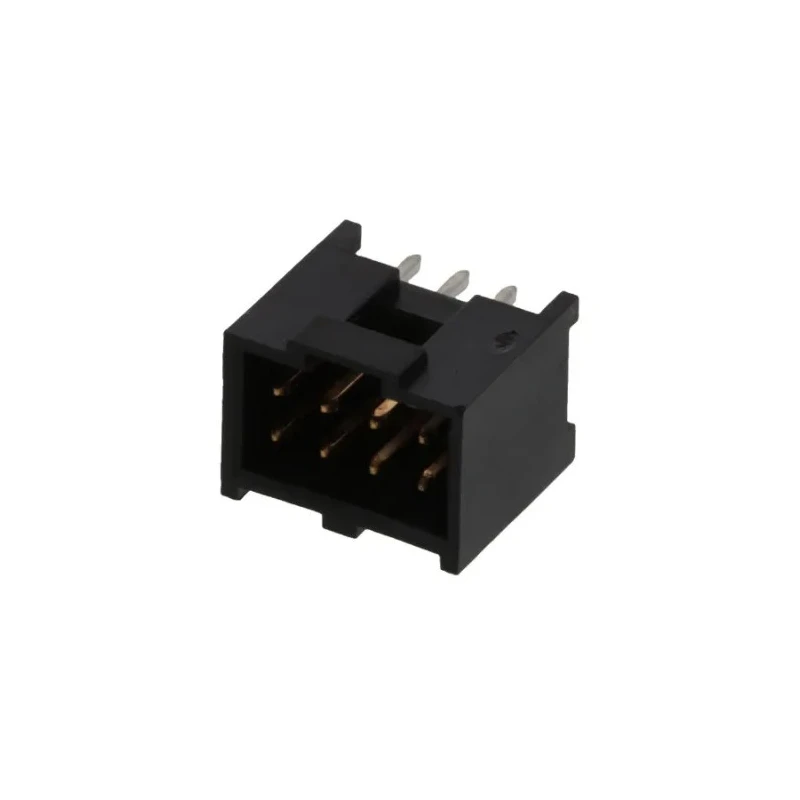

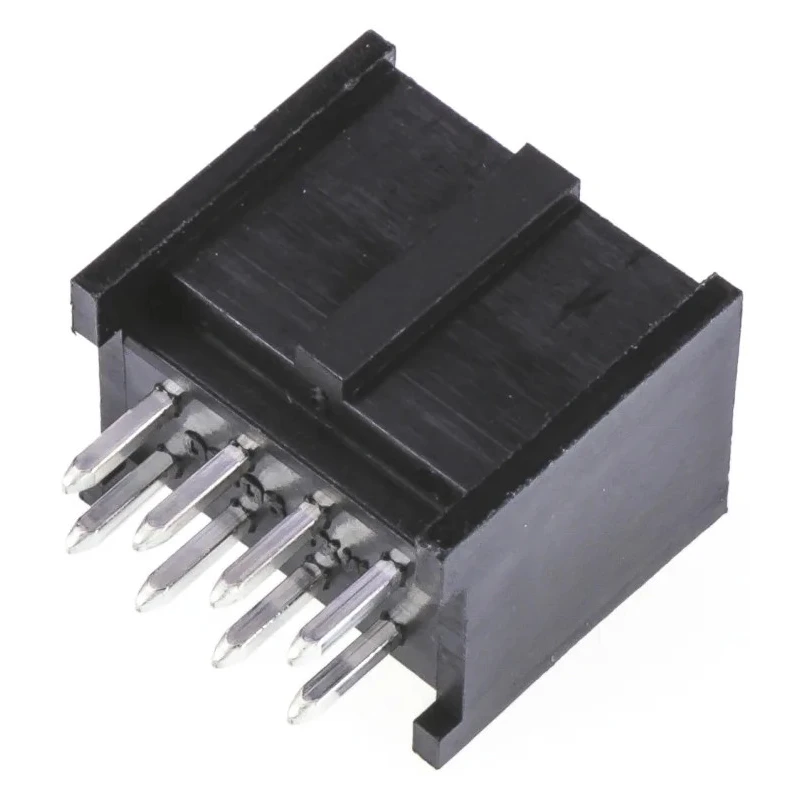

Amphenol Communications Solutions C-Grid III Series PCB Header 8 Contact 2 Row Shrouded 2.54mm Pitch 3A Current 90130-1208
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | C-Grid III |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
Key Features
- The header supports a current rating of 3 amperes for reliable electrical conduction.
- It features gold-plated contacts for durability and consistent mating performance.
- The shrouded dual-row design ensures secure wire-to-board connections with reduced risk of misalignment.
- Constructed with a polyester housing, it tolerates operating temperatures from -55°C to 125°C.
- Suitable for through hole mounting for rugged PCB installations.
- The male brass contacts have solder terminations with precise pin lengths for secure mating.
- Meets DIN 41651 and HE13/14 standards for industrial and electronic applications.
- Designed to handle signal connections in industrial automation, electronics, and electrical devices.
Product Description
Molex 90130-1208 C-Grid III Series PCB Header is a straight, shrouded connector featuring 8 male contacts arranged in 2 rows with a 2.54mm pitch. Rated for 3A current and 350V voltage, it provides reliable, high-performance wire-to-board connections suitable for demanding industrial and electronic environments.
The header’s polyester housing ensures durability across an operating temperature range from -55°C to 125°C, supporting consistent operation in harsh conditions. Gold plating on brass contacts guarantees corrosion resistance and consistent mating performance over numerous cycles.
Its through hole mount type facilitates easy and stable PCB assembly, while the dual-row layout maximizes connection density in limited board space. The solder termination type with a 2.9mm tail pin length and 6.75mm mating pin length ensures firm electrical contacts.
This PCB header complies with DIN 41651 and HE13/14 standards, making it ideal for use in signal connections in industrial automation, electronics interconnects, and various electrical wiring setups requiring reliable voltage regulation.
The header supports a 3A current rating for reliable operation in power and signal circuits. Gold-plated brass contacts maintain excellent conductivity and resistance to corrosion. Polyester housing provides dimensional stability and heat resistance.
Shrouded design protects contacts and prevents mis-mating. Through hole mounting enables robust PCB connections for industrial environments. Standard 2.54mm pitch and dual-row configuration optimize space usage. Operating temperature range from -55°C to 125°C ensures suitability for harsh conditions.
Compliant with DIN 41651 and HE13/14 industry standards.
This Molex PCB Header is suitable for industrial machinery, automation equipment, consumer electronics, and commercial electrical systems where consistent and durable soldered wire-to-board connections are critical. Browse our Electronics Components category for more PCB connectors and headers to complete your assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 3 amperes, ensuring reliable electrical conduction.
The voltage rating for this model is 350 volts, making it suitable for various electrical applications.
The header features male brass contacts with a tail pin length of 2.9mm and a mating pin length of 6.75mm.
It can operate within a temperature range of -55°C to 125°C, making it suitable for harsh environments.
This model supports through hole mounting, which facilitates stable PCB assembly.
The housing is made of polyester, and the contacts are made of brass with gold plating for corrosion resistance.
This PCB header features 8 male contacts arranged in 2 rows.
It complies with DIN 41651 and HE13/14 standards, suitable for industrial and electronic applications.
The pitch size for this model is 2.54mm, which is standard for many PCB connectors.
This unit features solder termination, ensuring firm electrical contacts during assembly.
It is designed for signal connections in industrial automation, electronics, and various electrical wiring setups.
The orientation of this model is straight, allowing for easy installation on PCBs.
