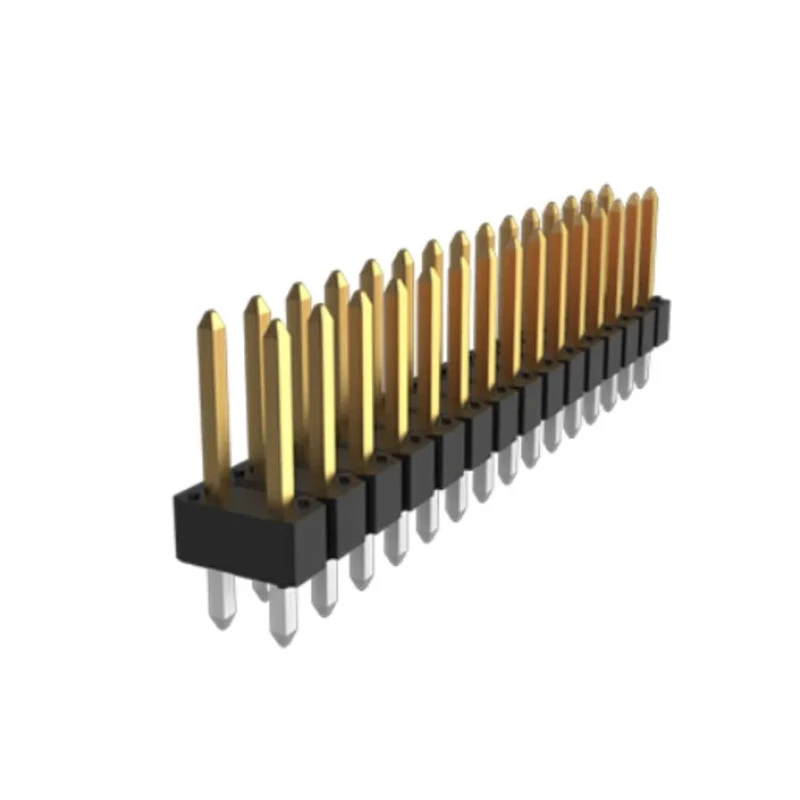

Amphenol Communications Solutions Bergstik Series Vertical Through Hole Pin Header, 16 Contacts, 2.54 mm 77313-124-16LF
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 1500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Current | 3A |
| Model | 77313-124-16LF |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | UL Approval:E66906 |
| Contact Plating | Phosphor Bronze |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 2.9mm |
| Mating Pin Length | 6.75mm |
| Standards/ApprovalsUL Approval | E66906 |
| UL Approval | E66906 |
Key Features
- Unshrouded design allows easy mating from top or bottom.
- High temperature thermoplastic housing supports -65°C to 130°C operating range.
- Phosphor bronze contacts with plating ensure durable electrical performance.
- Suitable for mezzanine and stacked applications with flexible stacking heights.
- Through hole mounting with solder termination for secure mechanical and electrical connection.
- Male contact gender with tail pin length of 2.9 mm and mating pin length of 6.75 mm.
- Rated for maximum 1500 V and 3 A current carrying capacity.
- Certified with UL Approval E66906 for quality assurance.
Product Description
Amphenol Communications Solutions 77313-124-16LF Bergstik Series Vertical Through Hole Pin Header features a 2.54 mm pitch with 16 male contacts arranged in 2 rows. It is an unshrouded header designed for reliable board-to-board interconnections in electronic devices and equipment.
The housing is made of high temperature thermoplastic material capable of withstanding operating temperatures from -65°C up to 130°C. The contact pins are manufactured from phosphor bronze with plating of the same material to ensure excellent conductivity and long-lasting mechanical durability.
This pin header is suitable for mezzanine applications, offering variable spacing heights for stacking headers. Its dual entry design enables mating from either the top or bottom, adding flexibility to varied stack height requirements and configurations on printed circuit boards.
With a rated current of 3 Amperes and voltage handling of up to 1500 Volts, this pin header is effective in robust electrical performance scenarios. The termination is through hole with solder type, ensuring secure mechanical integration on PCB assemblies.
The product holds UL Approval E66906, confirming compliance with rigorous industry standards. Manufactured in France, it reflects high quality and precision manufacturing practices.
Unshrouded vertical orientation for versatile mating options. Thermoplastic housing ensures durability and high-temperature resistance. Phosphor bronze contact and plating for optimal conductivity. Through hole solder termination for reliable mounting.
Mezzanine stacking solution with adjustable spacing heights. Rated 3A current and 1500V voltage for demanding electronic applications. UL approved for safety and quality assurance. Male contact gender with well-defined pin lengths for proper mating.
Production origin: France, supporting quality manufacturing.
This Amphenol Bergstik pin header is ideal for industrial electronics, communication devices, automotive electronics, and other applications requiring robust PCB connectors. Explore the comprehensive catalog on EnvMart for compatible components and related PCB connector solutions.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum voltage of 1500 Volts.
The pin header has a current carrying capacity of 3 Amperes.
The contacts are arranged with a pitch of 2.54 mm.
The housing is made of high temperature thermoplastic, while the contacts are made from phosphor bronze with phosphor bronze plating.
It uses a through hole termination with solder type for secure mounting.
The tail pin length is 2.9 mm and the mating pin length is 6.75 mm.
It can operate within a temperature range of -65°C to 130°C.
This model features 16 male contacts arranged in 2 rows.
Yes, it is designed for mezzanine and stacked applications with flexible stacking heights.
Yes, it holds UL Approval E66906 for quality assurance.
The pin header has a vertical orientation, allowing for mating from either the top or bottom.
It is manufactured in France, reflecting high quality manufacturing practices.
