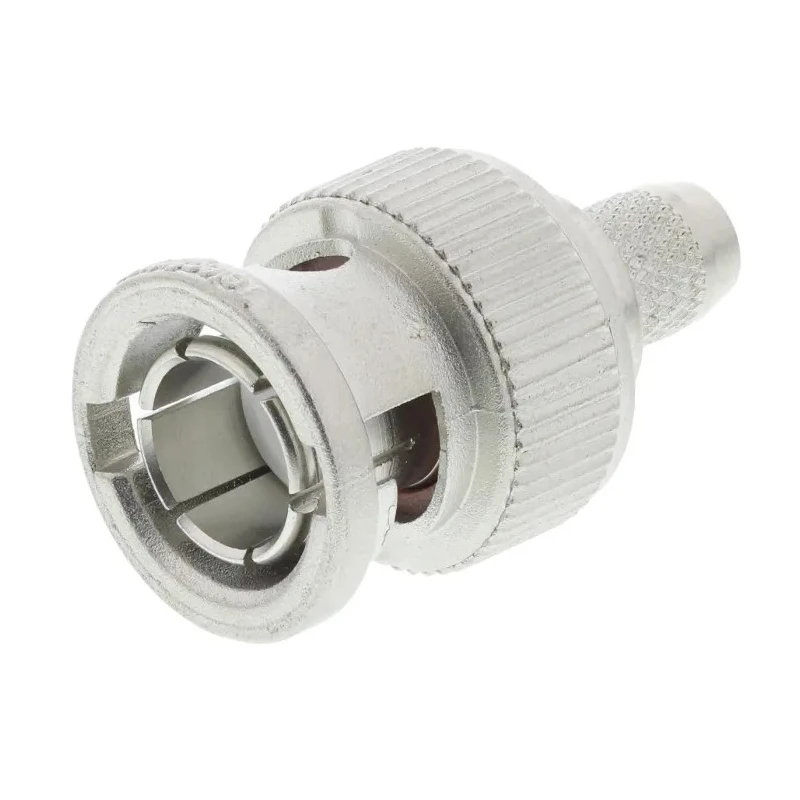

Telegartner BNC Series Coaxial Connector Cable Male BNC, 75 Ω Impedance, Straight Body Crimp J01002A0055
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01002A0055 |
| Mount Type | Cable |
| Operating Frequency | 3GHz |
| Contact Material | Gold Plated Brass |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Cable Type | 0.8/3.7-6.15 |
| Minimum Operating Temperature | 0°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold, Brass |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| binder, Plug Cable Mount, 75Ω, Crimp Termination, Straight BodyBrand | Telegartner |
| Stock number 468-510 | G48 (1.6/7.3) |
| Stock number 468-516 | G27 (1.0/4.6-6.7) |
| Stock number 468-526 | G39 (0.8/3.7-6.15) |
| Stock number 468-532 | RG-179 B/U |
Key Features
- Constructed with a nickel-plated body and gold-plated brass contact for excellent conductivity.
- Suitable for cable types including G39 (0.8/3.7-6.15) ensuring wide compatibility.
- Operates reliably up to 3 GHz frequency for high definition television and other RF uses.
- Crimp termination ensures secure and durable cable mounting.
- Supports operating temperatures from 0°C to 155°C for versatile environmental use.
- Impedance of 75 Ω ideal for HDTV and other broadband RF applications.
- Straight body orientation facilitates installation in tight spaces.
- Manufactured in Germany ensuring quality and durability.
Product Description
Telegartner J01002A0055 BNC Series Coaxial Connector Cable is a high-performance cable-mount coaxial connector designed for professional RF applications requiring 75 Ω impedance. Featuring a straight body and crimp termination, this connector provides excellent reliability and signal integrity up to 3 GHz frequency.

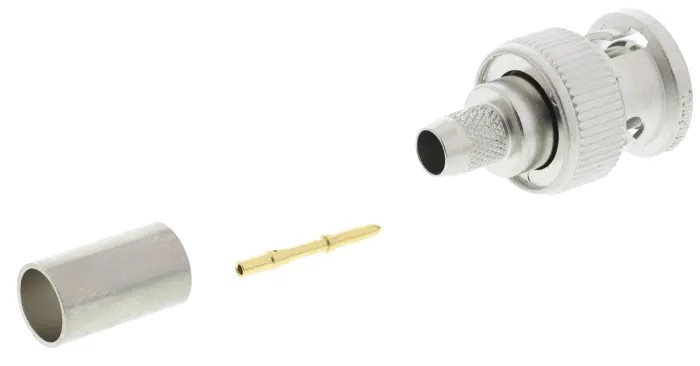

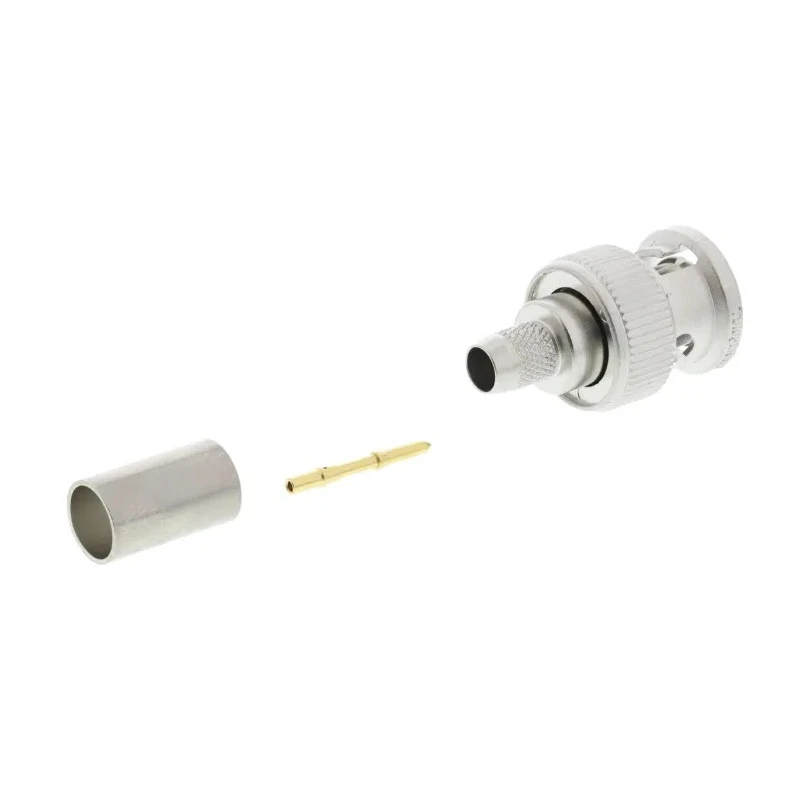

The connector utilizes a nickel-plated body for corrosion resistance with a gold-plated brass centre contact to ensure superior conductivity and minimal signal loss. It is compatible with cable type G39 (0.8/3.7-6.15), making it suitable for a variety of cable specifications within the coaxial connector domain.
Operating temperature ranges from 0°C to 155°C enable use in demanding industrial, telecommunications, and broadcasting environments. The connector’s straight orientation and crimp termination offer ease of installation and secure cable attachment.
This 75 Ω impedance connector is ideally applied in HDTV digital transmission systems requiring broadband capability with excellent return loss performance, making it an essential component for high-definition video and RF signal applications.
Nickel-plated body ensures durability and corrosion resistance. Gold-plated brass centre contact provides excellent electrical performance. Designed for cable mounting with reliable crimp termination. Supports operating frequency up to 3 GHz.
Temperature rating from 0°C to 155°C suits diverse environments. Straight body orientation for flexible installation. Manufactured to high standards in Germany.
Widely used in electronics manufacturing, telecommunications, laboratory testing, and broadcast applications, the Telegartner BNC connector offers dependable performance and compatibility in coaxial cable installations.
For comprehensive connectivity solutions, explore EnvMart catalog categories related to Coaxial Connectors and electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector operates reliably up to a maximum frequency of 3 GHz, making it suitable for high definition television and other RF applications.
The impedance rating of this connector is 75 Ω, which is ideal for HDTV and other broadband RF applications.
This connector is compatible with cable type G39 (0.8/3.7-6.15), ensuring wide compatibility with various cable specifications.
The operating temperature range for this model is from 0°C to 155°C, allowing it to be used in diverse environmental conditions.
It features a nickel-plated body for corrosion resistance and a gold-plated brass center contact for superior conductivity.
This model utilizes crimp termination, which ensures a secure and durable cable mounting.
The connector has a straight body orientation, which facilitates installation in tight spaces.
This connector is manufactured in Germany, ensuring high standards of quality.
This BNC connector features a male contact gender, suitable for various applications.
This connector is part of the BNC series, designed for professional RF applications requiring 75 Ω impedance.
The connector is classified as a standard size, making it compatible with typical installations.
The connector features gold plating on the brass contacts, which enhances electrical performance and reduces signal loss.
