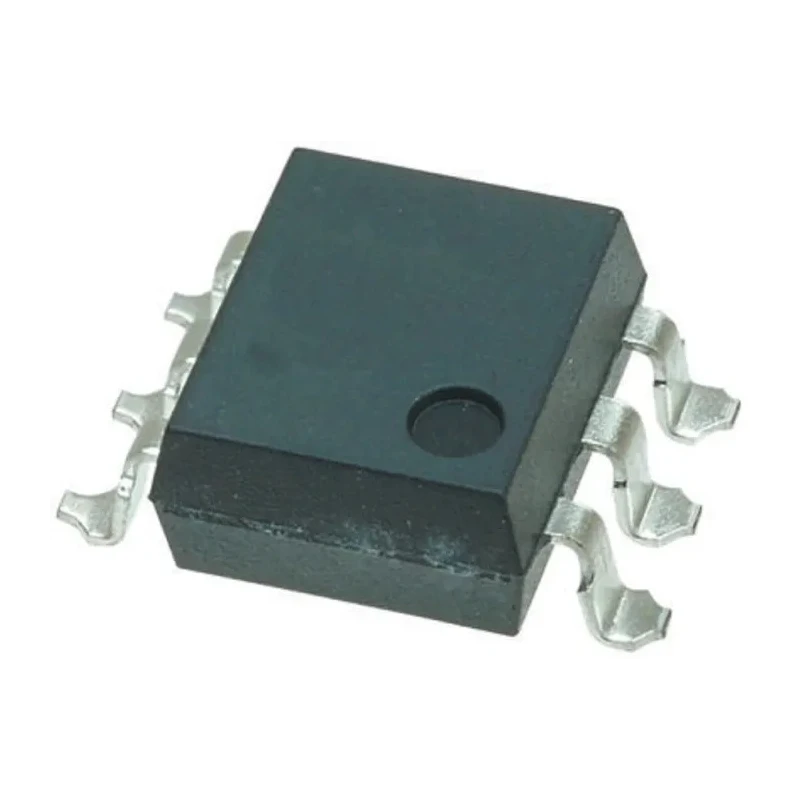

onsemi DC Input Optocoupler Surface Mount 6-Pin PDIP H11F3SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | H11F3SM |
| Packaging | Bulk |
| Mount Type | Surface |
| Series | H11F |
| Maximum Operating Temperature | 100°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL |
| Maximum Forward Voltage | 1.75V |
| Number of Pins | 6 |
| Input Current Type | DC |
| Typical Rise Time | 45μs |
| Typical Fall Time | 0.05μs |
Key Features
- Offers high isolation voltage of 7.5 kVrms for reliable electrical separation.
- Single channel configuration optimized for DC input signals.
- Maximum forward voltage of 1.75 volts and maximum input current of 60 mA.
- Typical rise time of 45 microseconds ensures efficient signal switching.
- Wide operating temperature range from -40°C to 100°C suitable for harsh environments.
- Logic output compatible with digital circuits.
- Compact 6-pin PDIP package ideal for surface mounting.
- RoHS compliant with UL standard approvals.
Product Description
onsemi H11F3SM is a DC input optocoupler featuring a 6-pin PDIP surface mount package designed for effective electrical isolation between input and output circuits. It supports a maximum isolation voltage of 7.5 kVrms, ensuring safe signal transmission in industrial electronics, power control, and semiconductor driver applications.
This optocoupler includes a single channel with a maximum forward voltage of 1.75 V and a maximum input current rating of 60 mA, delivering reliable performance with low forward voltage drop. The typical rise time of 45 microseconds and fall time of 0.05 microseconds supports rapid switching necessary for digital and logic circuits, particularly for IGBT and MOSFET gate drive.
The device is rated for operation in a temperature range from -40°C to 100°C, making it suitable for demanding industrial environments with temperature variability. It features a logic output for seamless integration with digital electronics and is supplied in a bulk packaging for ease of use in manufacturing.
The H11F3SM is compliant with UL safety standards and it does not conform to automotive standards, making it ideal for general electronic component and power applications. Its compact 6-pin PDIP package allows for efficient surface mounting on printed circuit boards.
High isolation voltage rating for electrical safety. Compatible with DC input signals for effective optocoupling. Designed for MOSFET and IGBT gate drive circuits. Wide temperature tolerance for industrial use. Compliant with RoHS and UL standards.
Compact surface mount PDIP package eases PCB integration. Logic output enables interfacing with digital control systems. Usage in industrial, laboratory, and manufacturing electronics. Supplied in bulk providing convenience for volume production.
This product is suitable for applications in industrial electronics, power systems, semiconductor controls, and general signaling where isolation and interference immunity are essential.
Explore more Optocouplers and related electronic components for your industrial and laboratory needs at EnvMart.
