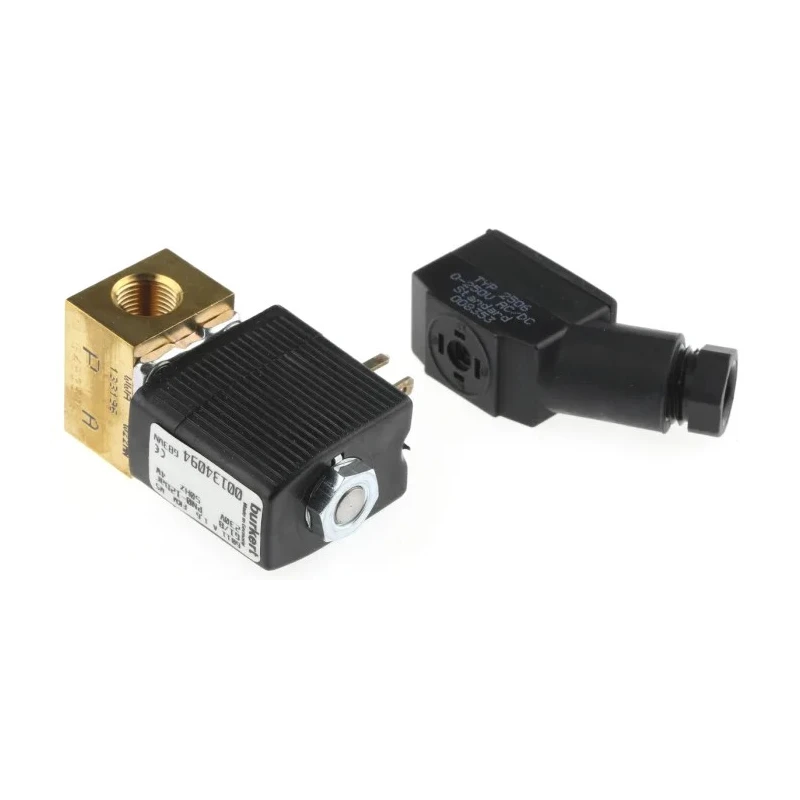

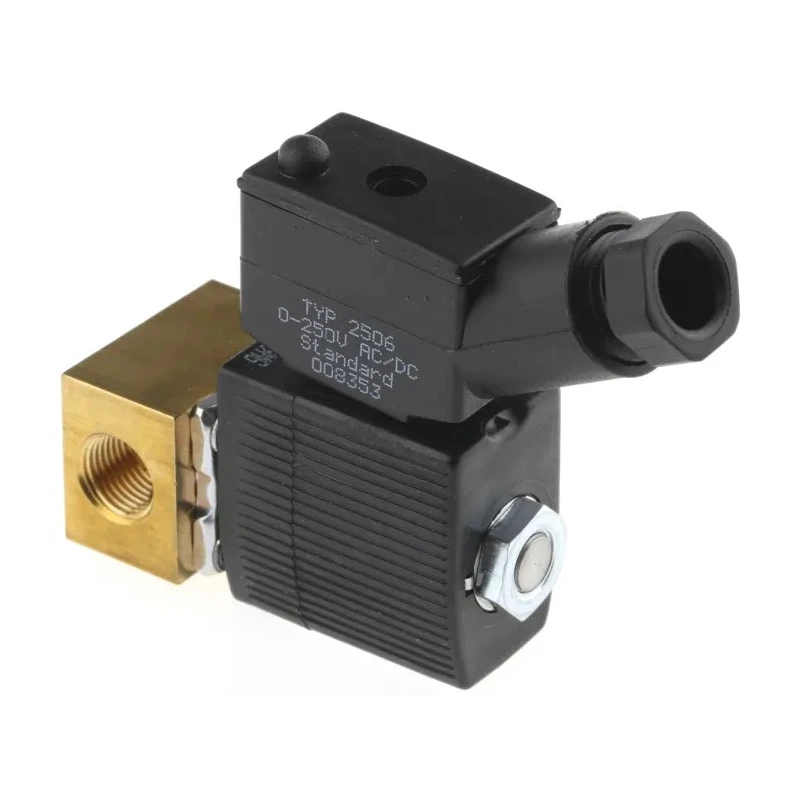

Burkert 2 Port Normally Closed Solenoid Valve Brass Body 230V AC 6011 Series 134094
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 12 bar |
| Model | 134094 |
| Series | 6011 |
| Number Of Ports | 2 |
| Minimum Operating Temperature | 55°C |
| Orifice Diameter | 1.6mm |
| Supply Voltage | 230V ac |
| Inlet Port Size | 3.18 mm |
| Default Valve Position | NC |
| Inlet Port Gender | Female |
| Maximum Opening Time | 10ms |
| Flow Factor Kv | 0.06m³/h |
| Maximum Closing Time | 15ms |
| Burkert Solenoid Valve 134243, 2 Port, NC, 230V ac 3.18 mm, 3.18 mmBrand | Burkert |
Key Features
- Features a compact 6011 series design with 3.18 mm inlet and outlet ports.
- Brass body ensures robust durability and chemical compatibility.
- Valve is normally closed (NC) with a 1.6 mm orifice diameter.
- Capable of handling maximum operating pressure up to 12 bar.
- Fast response times with maximum opening time of 10 ms and closing time of 15 ms.
- Suitable for operating temperatures from -10 to +100°C, supporting a wide range of environments.
- Polyamide coil with FPM seal material offers high quality sealing and resistance.
- Protection rating IP65 when used with DIN 43650C cable plug for dust and water resistance.
Product Description
Burkert 134094 is a 2 Port Normally Closed (NC) solenoid valve from the compact 6011 series, engineered with a brass body for durability and chemical resistance. This solenoid valve operates at 230V AC and is ideal for controlling fluids such as liquids, neutral gases, and technical vacuum in various industrial, laboratory, HVAC, and water treatment applications.
The valve features 3.18 mm female inlet and outlet ports and a 1.6 mm orifice diameter, capable of supporting a maximum operating pressure of 12 bar. It delivers fast actuation performance with maximum opening and closing times of 10 ms and 15 ms respectively.
The coil is designed with polyamide material and FPM seals to offer high-quality sealing performance. It can be easily replaced while the valve is in place, and it allows locking in four 90° positions or free movement as per installation requirements. Protected to IP65 rating when used with a DIN 43650C cable plug, the valve is shielded against dust and water ingress.
Operating within a temperature range of -10 to +100°C, this valve suits varied environmental conditions across industrial sectors including manufacturing, water treatment, compressed air systems, and pneumatic fluid control.
Compact 6011 series miniature two-way valve design with threaded port connections. Brass body with polyamide coil and FPM seals for chemical and temperature resistance. 230V AC supply voltage with 4W DC power consumption.
Maximum pressure tolerance of 12 bar suitable for numerous fluid control tasks. Fast response with opening and closing times under 15 ms for precise flow control. Coil positioning flexibility enhances installation convenience.
Rated for protection class IP65 against dust and water ingress. Designed for use in industrial automation, HVAC, pneumatic and hydraulic systems. Manufactured in Germany, evidencing high-quality standards and reliability.
Set contains one Burkert 2 Port NC Solenoid Valve model 134094 with specifications suitable for precise fluid and gas control applications. Explore more industrial Solenoid Valves and fittings in EnvMart’s Industrial Valves & Valve Fittings category for professional-grade components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 12 bar.
This solenoid valve has an orifice diameter of 1.6 mm.
It operates at a supply voltage of 230V AC.
The valve features 3.18 mm female inlet and outlet ports.
The maximum opening time is 10 ms, and the maximum closing time is 15 ms.
It can operate within a temperature range of -10 to +100°C.
The body is made of brass, and it features a polyamide coil with FPM seals.
The default position of this valve is normally closed (NC).
Yes, it is suitable for controlling fluids in various industrial applications, including manufacturing and water treatment.
It has a protection rating of IP65 when used with a DIN 43650C cable plug, making it resistant to dust and water ingress.
This model is manufactured in Germany.
Yes, the coil can be easily replaced while the valve remains installed.
