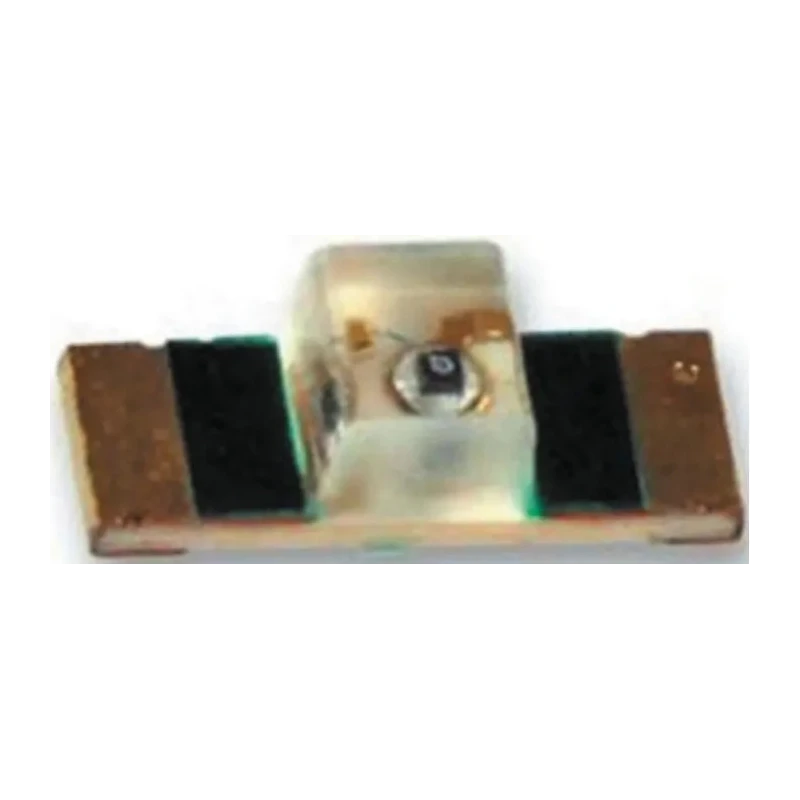

Broadcom 2.2 V Green LED 3412 Surface Chip LED HSMG-C265

Broadcom HSMG-C265 is a 2.2 V Green LED in a 3412 surface mount chip LED package, ideal for various electronic illumination applications. This industry-standard footprint device is designed for easy handling and mounting on surface-mount technology (SMT) assembly lines, providing high-efficiency illumination with low power consumption.

The LED features a compact rectangular lens measuring 3.4 x 1.25 x 1.1 mm and emits green light with a dominant wavelength of 572 nm and a luminous intensity of 15 mcd. Its wide viewing angle of 170° allows broad side-lighting and backlighting, making it suitable for LCD backlighting, keypad illumination, push-button lighting, symbol backlighting, and front panel indicators.

The maximum forward current is rated at 25 mA, with a power dissipation limit of 65 mW and typical forward voltage of 2.2 V. It uses a non-diffused clear lens finish that produces bright and focused light. The component is packaged in tape and reel format, ready for automated insertion in production environments.

This Broadcom Chip LED series offers RoHS compliance, adhering to strict environmental standards. It operates effectively in temperature ranges from -40°C up to +85°C, ensuring reliability in industrial and commercial applications.

Compact industry-standard 3412 surface mount package. Green LED color with 572 nm dominant wavelength. High reliability with RoHS compliance. Wide viewing angle of 170° for broad illumination. Suitable for LCD backlighting and panel indicators.

Tape and reel packaging for manufacturing efficiency. Operating temperature range from -40°C to +85°C.
