Broadcom 2 V Red, Yellow, Green LED 3 mm (T-1) Through Hole HLMP-1700-B00A2

Name: Broadcom 2 V Red, Yellow, Green LED 3 mm (T-1) Through Hole HLMP-1700-B00A2
Brand: Broadcom
SKU: 118603



Category LED Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HLMP-1700-B00A2
Packaging	Tape & Reel
Mount Type	Through Hole
Series	HLMP
Maximum forward current	7mA
Viewing angle	50 °
Package Type	3 mm (T-1)
Lens Colour	Red
Standards/Approvals	RoHS Compliant
LED Colour	Red, Yellow, Green
Dominant Wavelength	626nm
Forward Voltage	2V
Number of Pins	2
LED Luminosity	2.1 mcd
Maximum Power Dissipation	17.5mW
Lens Dimensions	3.43 (Dia.) x 4.7 mm
Lens Shape	Circular
Lens Finish	Diffused, Tinted

Key Features

Suitable for low power DC circuits, telecommunications, portable equipment, and keyboard indicators.
Available in a black plastic right-angle housing option for diagnostic and logic status indicators.
Features a wide viewing angle of 50 degrees for enhanced visibility.
Compatible with CMOS and TTL logic systems offering high efficiency and low current operation.
Packaged in tape and reel format for easy automated assembly.
Lens is circular, diffused, and tinted for optimized light diffusion.
Maximum forward current of 7 mA with 2 V forward voltage ensuring low power dissipation of 17.5 mW.
LED luminosity is 2.1 mcd with a dominant wavelength of 626 nm providing vivid red light.

Product Description

Broadcom HLMP-1700-B00A2 is a 3 mm (T-1) Through Hole LED unit designed for indicator applications requiring red, yellow, and green colors. Operating at 2 V forward voltage with a maximum forward current of 7 mA, this LED delivers efficient illumination with a maximum power dissipation of 17.5 mW.

This LED is ideal for use in industrial and commercial environments including telecommunications equipment, portable devices, and keyboard indicators, where low power and high visual clarity are essential.

The LED lens features a circular, diffused, and tinted finish improving light dispersion and visibility at a 50-degree viewing angle. The device is CMOS and TTL compatible, making it suitable for various electronic circuits and systems.

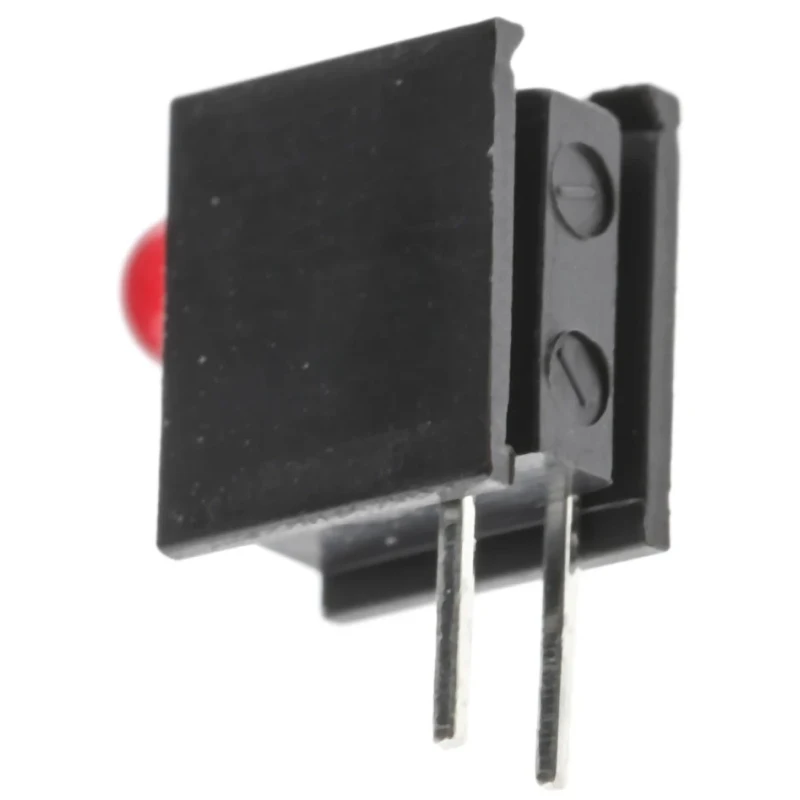

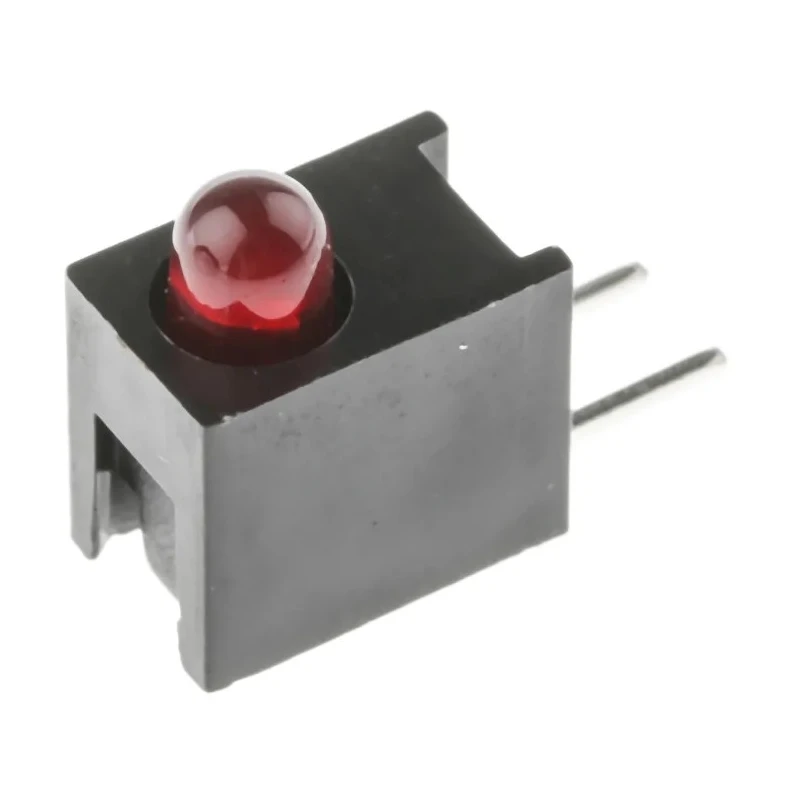

The HLMP series includes right angle housing options in black plastic for use in back panel diagnostics and card edge logic status indicators, providing installation versatility. Packaged in tape and reel form, this product supports efficient automated PCB assembly processes.

Applications span a range of industrial and electronic component sectors, including manufacturing instrumentation, electronic displays, and signaling devices. Suitable for low power DC circuits, telecommunications, portable equipment, and keyboard indicators.

Available in a black plastic right-angle housing option for diagnostic and logic status indicators. Features a wide viewing angle of 50 degrees for enhanced visibility. Compatible with CMOS and TTL logic systems offering high efficiency and low current operation.

Packaged in tape and reel format for easy automated assembly. Lens is circular, diffused, and tinted for optimized light diffusion. Maximum forward current of 7 mA with 2 V forward voltage ensuring low power dissipation of 17.5 mW.

LED luminosity is 2.1 mcd with a dominant wavelength of 626 nm providing vivid red light. Explore more LEDs and electronic components in the EnvMart catalog to find components suited for your industrial, laboratory, manufacturing, or electronic design applications.
