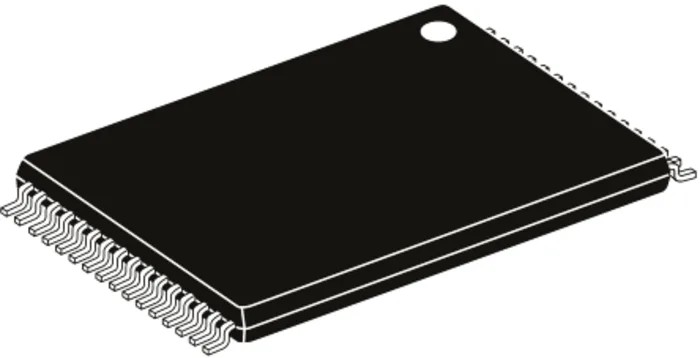

NXP RF Receiver 32-Pin SOIC, CMOS/TTL Technology, 13.56MHz Operating Frequency, ASK Modulation, CLRC63201T/0FE,112

Free Delivery in India | Lowest Global Shipping Charges

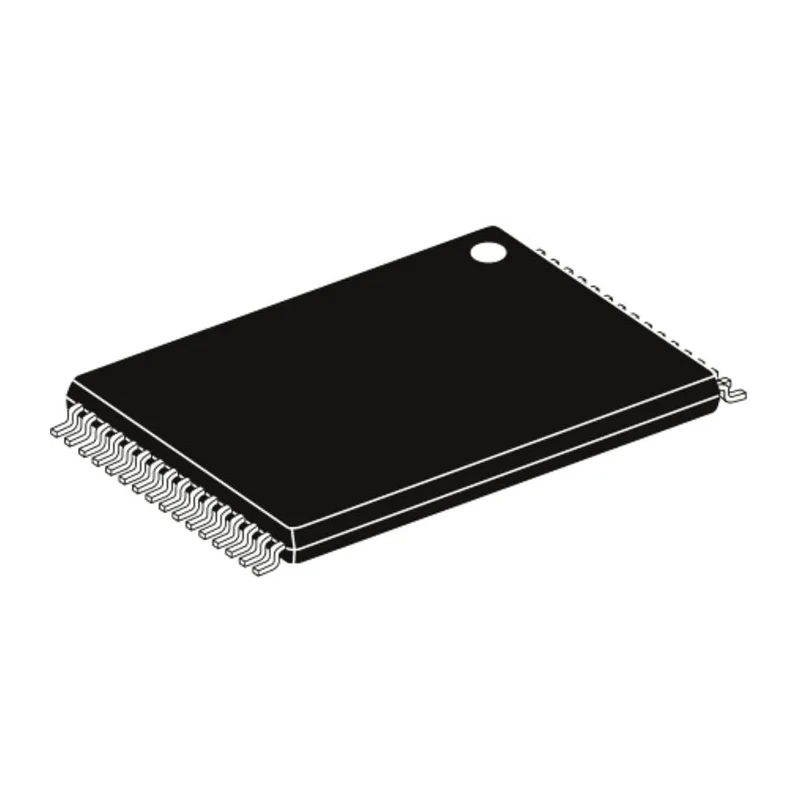

NXP RF Receiver 32-Pin SOIC, CMOS/TTL Technology, 13.56MHz Operating Frequency, ASK Modulation, CLRC63201T/0FE,112



Category RF ICs Brand NXP Condition New

Specifications

Country of Origin	Thailand
Brand	NXP
Height	2.45mm
Operating Temperature Range	-25 to +85°C
Length	20.7mm
Model	CLRC63201T/0FE,112
Technology	CMOS/TTL
Width	7.6mm
Mount Type	Surface
Series	CLRC632
Maximum Operating Temperature	150°C
Package Type	SOIC
Sub Type	Receiver
Minimum Operating Temperature	-40°C
Interface Type	Parallel/SPI
Pin Count	32
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Host communication	SPI, parallel
Modulation Technique	ASK
OTA Data Rate	up to 424kbps
RF Operating Frequency	13.56MHz
Operating Band 1 Frequency	13.56MHz
Number of Operating Bands	1
Proximity operating distance	up to 100mm

Key Features

Operates with a supply voltage range of 3V to 5.5V.
Supports ASK modulation technique for reliable RF signal processing.
Features surface mount SOIC package with 32 pins for efficient board assembly.
Includes 64-byte Tx/Rx FIFO buffer for data handling.
Compatible with MIFARE protocol variants and supports ISO/IEC 14443 Type A/B standards.
Host communication interfaces include SPI and parallel communication.
Offers a proximity operating distance up to 100mm for close range RFID applications.
Operating temperature ranges from -40°C to 150°C ensuring robust performance.

Product Description

NXP CLRC63201T/0FE,112 RF Receiver 32-Pin SOIC is an advanced CMOS/TTL-based RFID reader integrated circuit for contactless RFID communication operating at 13.56MHz frequency. It supports ASK modulation technique and provides reliable data throughput with OTA data rates up to 424kbps. The device operates efficiently within a voltage range of 3.0 to 5.5 volts and is designed for surface mount applications with a compact 32-pin SOIC package measuring 20.7mm in length, 7.6mm in width, and 2.45mm in height.

This RF Receiver IC supports multiple RFID protocols including MIFARE Classic 1K, MIFARE Classic 4K, MIFARE Ultralight, and complies with ISO/IEC 14443 Type A/B, I-CODE1, and ISO/IEC 15693 standards, making it ideal for secure and versatile RFID applications.

The integrated 64-byte Tx/Rx FIFO buffer optimizes data flow and processing speeds. It supports host communication interfaces such as SPI and parallel, providing flexibility for integration into various embedded systems. The device is pin compatible with commonly used models like MFRC500, MFRC530, MFRC531, and SLRC400 for easy replacement and upgrade.

Designed to operate reliably in ambient temperatures ranging from -40°C up to 150°C, this IC is suitable for diverse industrial, commercial, and laboratory RFID use cases. Its RFID proximity detection capability extends up to approximately 100mm, accommodating a wide range of application scenarios in access control, inventory tracking, and asset management.

Manufactured in Thailand, the NXP CLRC63201T/0FE,112 RF Receiver offers robust performance and stable operation in demanding environments. This product complies with industry standards while enabling developers and designers to implement advanced contactless identification systems.

Operates with a supply voltage range of 3V to 5.5V. Supports ASK modulation technique for reliable RF signal processing. Features surface mount SOIC package with 32 pins for efficient board assembly. Includes 64-byte Tx/Rx FIFO buffer for data handling.

Compatible with MIFARE protocol variants and supports ISO/IEC 14443 Type A/B standards. Host communication interfaces include SPI and parallel communication. Offers a proximity operating distance up to 100mm for close range RFID applications.

Operating temperature ranges from -40°C to 150°C ensuring robust performance. Pin compatible with MFRC500, MFRC530, MFRC531 and SLRC400 devices. Explore the Electronics Components and Semiconductor categories at EnvMart for premium RF ICs and contactless communication solutions.
