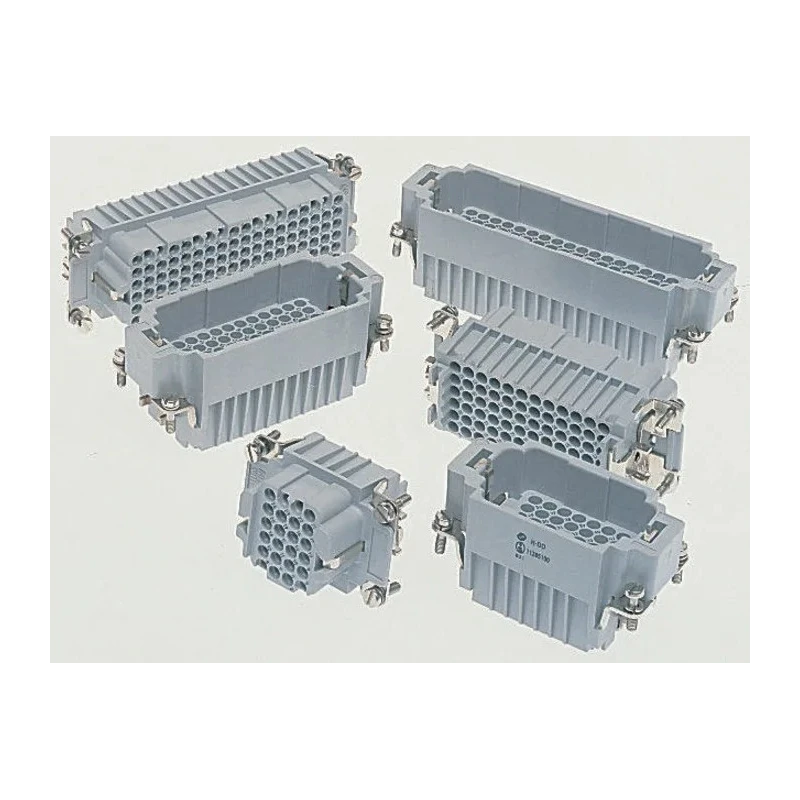

EPIC Heavy Duty Power Connector Insert 8.5A 600V Female 108 Contacts H-DD 11285300

EPIC 11285300 Heavy Duty Power Connector Insert is a female connector designed to handle 8.5A current at 600V, making it reliable for industrial and commercial electrical connections. This H-DD series insert features 108 contacts arranged in 4 rows, combined with a pole format of 108+E, allowing high-density power and control wiring in a compact form factor. The connector is engineered for cable mounting and offers an IP65 ingress protection rating, ensuring resistance to dust and water ingress in demanding environments.

Manufactured with copper alloy contacts plated in silver, this product ensures excellent electrical conductivity and long-lasting durability. The crimp termination method is used for secure and efficient wiring, facilitated by a high-quality 8 point indent crimp tool. These connectors are suitable for low voltage switchgear, machine tools, automation machinery, professional sound, and lighting industries where a high number of contacts need to be accommodated within a compact design.

The H-DD inserts are compatible with corresponding hoods and housings, enabling modular and flexible connector assemblies. The earth connection is separately established through all inserts and connected to the metal body shell, ensuring safety and grounding compliance.

The insert is type tested to 10A at 250V a.c. and complies with standards such as VDE 0110 (parts 72, 0110b, 79) and VDE 0627. It holds approvals from SEV, UL, and CSA, underscoring its safety and quality credentials. Users are cautioned not to couple or decouple connectors under electrical load to prevent damage or unsafe conditions. Coding options exist to protect against incorrect mating when mounted side-by-side with other connectors.

Constructed from copper alloy with silver plating for reliable electrical contact. Rated for 8.5 amperes current at 600 volts voltage capacity. Crimp termination suitable for cable mounting with a high-density 108+E pole format.

Ingression protection rated at IP65 suitable for industrial environments. Manufactured in Germany complying with VDE standards and international approvals. Applicable in industrial, automation, sound and lighting, and low voltage switchgear applications.

Includes separate earth connection through metal body shell. Compatible with Hoods and Housings for modular connector assemblies.

This EPIC H-DD series Heavy Duty Power Connector Insert is ideal for demanding power and control connection requirements in industrial and professional electrical systems. Explore the Electronics Components category on EnvMart for compatible connectors, housings, and accessories.
