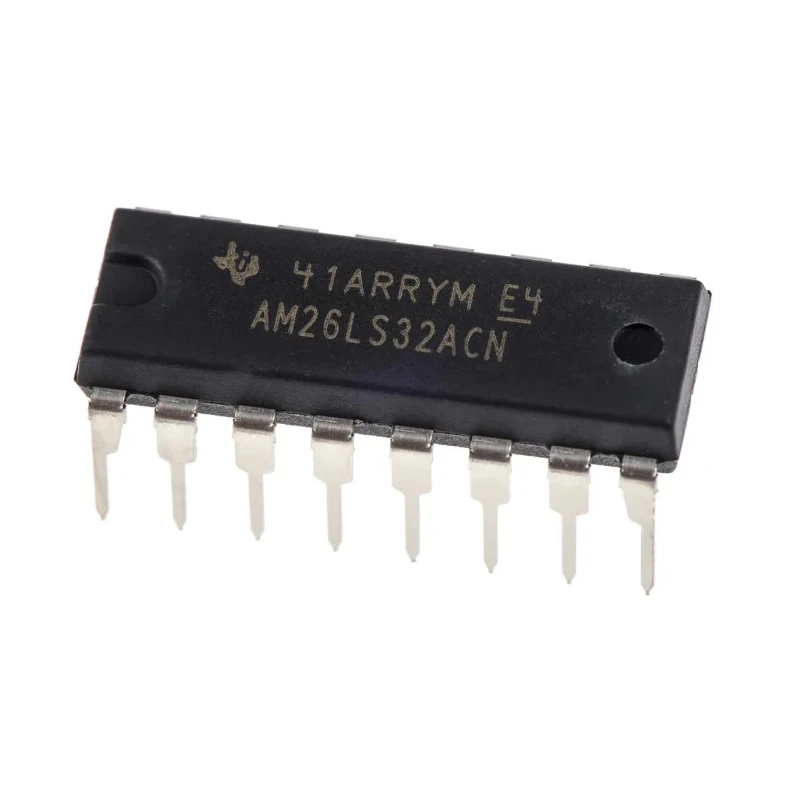

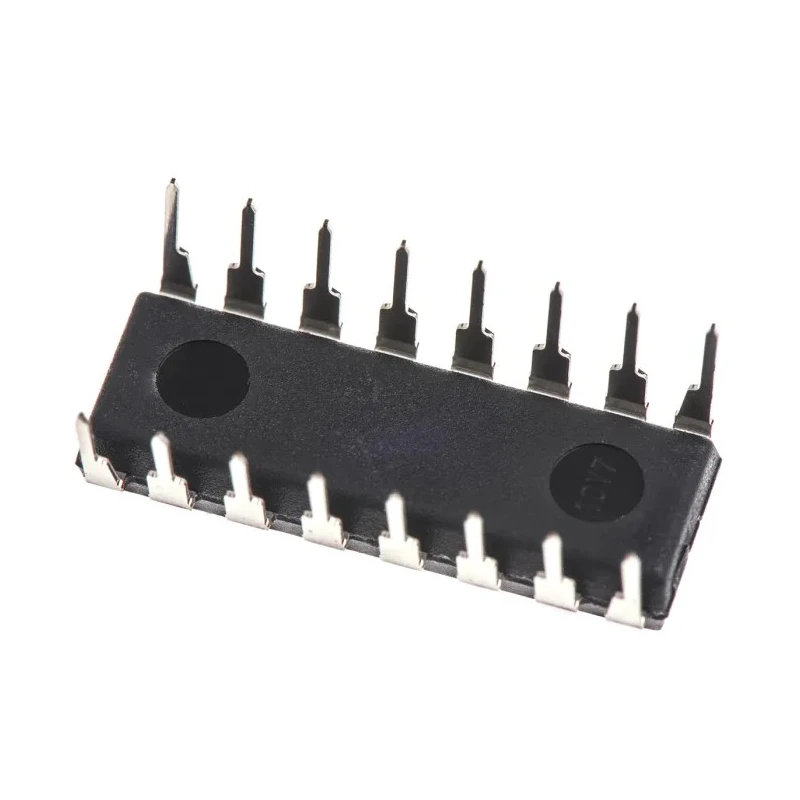

Texas Instruments Line Receiver TTL Logic Family 3 State Output 16-Pin PDIP AM26LS32ACN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.69mm |
| Model | AM26LS32ACN |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | 3 State |
| Series | AM26LS32AC |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| IC Type | Receiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | TTL |
| Logic Function | Line Receiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -440μA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 70mA |
| Maximum Low Level Output Current | 8mA |
Key Features
- Supports TTL logic family for compatibility with standard digital circuits.
- Features a 3-state output suitable for bus-oriented applications.
- Operates over a temperature range of 0°C to 70°C ensuring industrial reliability.
- Mounted through-hole with a 16-pin PDIP package for easy assembly.
- Minimum supply voltage is 4.75V and maximum supply voltage is 5.25V.
- Maximum propagation delay time of 35 nanoseconds at specified load conditions.
- Low supply current of 70mA for energy-efficient operation.
- Designed for RS-422 line receiver applications with differential input type.
Product Description
Texas Instruments AM26LS32ACN is a TTL logic family line receiver featuring differential inputs and 3-state outputs designed for industrial and electronic signal processing applications. It comes in a 16-pin PDIP through-hole package, providing robust mounting for insertion into printed circuit boards.
This device is optimized for RS-422 line receiver applications, delivering reliable differential signal reception over moderate distances. Operating supply voltages range from 4.75V to 5.25V with a maximum supply current of 70mA, ensuring efficient power consumption in embedded systems.
The linewidth interface integrated circuit operates within a temperature range of 0°C to 70°C, suitable for commercial and industrial environments. The maximum propagation delay time is 35 nanoseconds under typical load conditions, allowing for timely data processing in communication and control systems.
The package dimension of length 19.69mm, width 6.6mm, and height 5.08mm makes it compatible with standard socket and PCB layouts.
This line receiver does not carry automotive industry standards certifications and is sold as a new product ready for deployment in manufacturing, laboratory, and industrial electronics sectors.
Supports TTL logic family compatibility. Three-state output suitable for bus interface. Differential input for noise immunity in signal reception. Through-hole PDIP package with 16 pins for easy assembly. Operating voltage range from 4.75V to 5.25V.
Industrial temperature range 0°C to 70°C. Maximum propagation delay time of 35ns. Low supply current of 70mA. Compact package dimensions of 19.69mm × 6.6mm × 5.08mm. Ideal for RS-422 line receiver applications.
This line receiver module is well-suited for use in electronics manufacturing, automation control, communication hardware, and laboratory instrumentation. It enables efficient and reliable digital signal interfacing in complex systems.
For more precision electronic components and semiconductor solutions, explore related product categories in the EnvMart electronics section.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.25V.
It operates within a temperature range of 0°C to 70°C.
The maximum propagation delay time is 35 nanoseconds under specified load conditions.
This line receiver features a differential input type, which provides noise immunity in signal reception.
This model has a total of 16 pins.
The supply current is 70mA, ensuring energy-efficient operation.
It comes in a 16-pin PDIP (Plastic Dual In-line Package) format, designed for through-hole mounting.
This line receiver is compatible with the TTL logic family.
The minimum supply voltage for this model is 4.75V.
It is designed for RS-422 line receiver applications, suitable for industrial and electronic signal processing.
The dimensions are 19.69mm in length, 6.6mm in width, and 5.08mm in height.
It features a 3-state output, making it suitable for bus-oriented applications.
