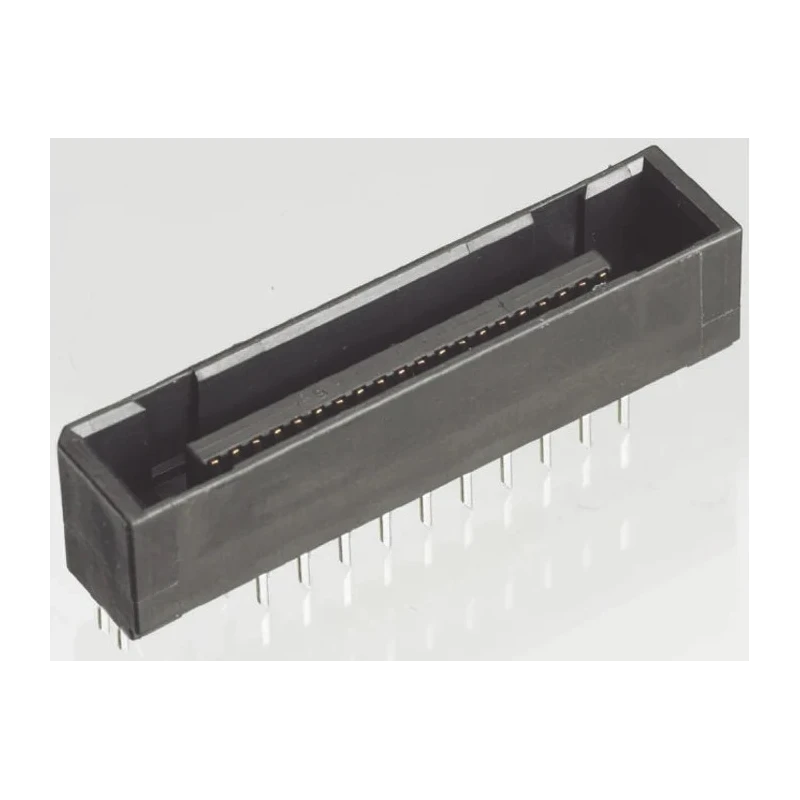

JAE TX25 Series Straight Through Hole PCB Header 30 Contacts 1.27 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | JAE |
| Orientation | Straight |
| Current | 1A |
| Model | TX25 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | TX25 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Supports a current rating of 1A for stable electrical performance.
- Constructed with a Polybutylene Terephthalate housing ensuring durability.
- Copper alloy contacts plated with gold provide excellent conductivity and corrosion resistance.
- Designed with a straight orientation suitable for board-to-board connector systems.
- Features a shrouded housing enhancing connector protection and preventing misalignment.
- Operating temperature range from -40°C to 80°C ensures versatility in various environments.
- Termination is via solder for secure and reliable connections.
Product Description
JAE TX25-30P-6ST-H1E is a high-quality PCB header designed for reliable electronic connections in industrial and commercial applications. This straight, through-hole PCB header features 30 gold-plated contacts arranged in 2 rows with a 1.27 mm pitch, providing stable and precise board-to-board connectivity.
The housing is made from durable Polybutylene Terephthalate which assures mechanical strength as well as resistance against heat and chemicals. The shrouded design adds protection and keying to prevent improper mating, making it ideal for rack and panel connector applications where precision and reliability are critical.
This PCB connector supports a current of 1A and is rated for voltage up to 500V, suitable for various electronic, industrial, laboratory, manufacturing, and HVAC systems. Its operating temperature range from -40°C to 80°C allows it to function reliably across demanding environmental conditions.
The solder termination type facilitates strong mechanical and electrical connections for stable performance. The connector's gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance, enhancing longevity.
Reliable 30 contact straight-through hole PCB header with 1.27 mm pitch. Polybutylene Terephthalate housing for durability and heat resistance. Gold-plated copper alloy contacts for superior conductivity. Shrouded connector design for alignment and protection.
Supports 1A current and 500V voltage ratings. Operates effectively from -40°C to 80°C. Solder termination provides robust connections.
This JAE TX25 Series PCB header is ideal for various electronics equipment, power connectors, and industrial control systems requiring stable and precise board connections. Explore more high-quality PCB connectors and Electronic Components in our Electronics & Electricals category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1A, ensuring stable electrical performance.
The voltage rating is up to 500V, making it suitable for various applications.
The contacts are arranged with a pitch of 1.27 mm.
This model features 30 contacts arranged in 2 rows.
It utilizes a solder termination type for secure connections.
The housing is constructed from Polybutylene Terephthalate, providing durability and heat resistance.
It operates effectively within a temperature range of -40°C to 80°C.
It is designed for board-to-board connector systems.
The contacts are made of copper alloy and are gold-plated for excellent conductivity and corrosion resistance.
The shrouded design enhances connector protection and prevents misalignment during connections.
The country of origin for this product is India.
This model features a straight orientation, suitable for various applications.
