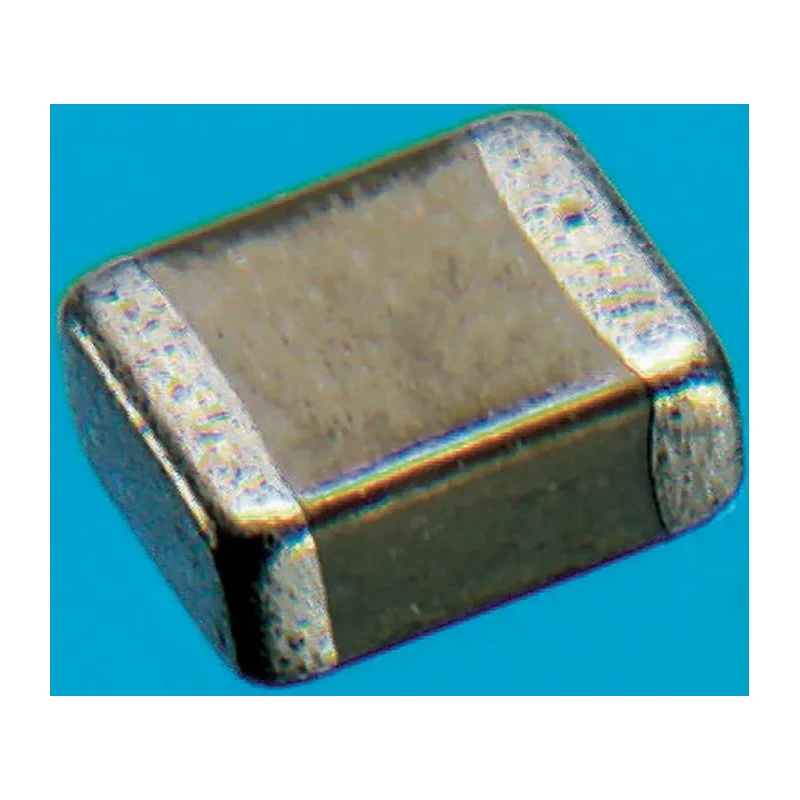

KEMET 1 nF 1kV dc ±5 % Tolerance C0G Multilayer Ceramic Capacitor Surface Mount 1812 Case Size C1812X102JDGACTU

Free Delivery in India | Lowest Global Shipping Charges

KEMET 1 nF 1kV dc ±5 % Tolerance C0G Multilayer Ceramic Capacitor Surface Mount 1812 Case Size C1812X102JDGACTU

Name: KEMET 1 nF 1kV dc ±5 % Tolerance C0G Multilayer Ceramic Capacitor Surface Mount 1812 Case Size C1812X102JDGACTU
Brand: KEMET
SKU: 134277
Price: 1.4 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Voltage	1kV dc
Brand	KEMET
Height	1.4mm
Length	4.5mm
Model	C1812X102JDGACTU
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Construction	Stacked
Series	X FT-CAP
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	1nF
Minimum Operating Temperature	-55°C
Package/Case	1812
Dielectric	C0G
Automotive Standard	AEC-Q200

Key Features

Capacitance of 1 nanofarad suitable for precision filtering and timing circuits.
1812 package size with surface mount construction for compact PCB layouts.
C0G dielectric provides excellent thermal stability and low losses.
AEC-Q200 automotive standard certified for high reliability and robust performance.
Operating temperature range from -55°C to +125°C supports harsh environmental conditions.
Flexible termination system minimizes board flex stress and reduces the risk of flex cracks.
Low ESR and ESL enhance performance in high-frequency applications.
Applications include power supplies, telecom equipment, automotive, industrial, and medical devices.

Product Description

KEMET C1812X102JDGACTU Multilayer Ceramic Capacitor is a high-quality 1 nF capacitor designed with a 1kV dc voltage rating and ±5 % tolerance, suitable for surface mount applications on PCBs. This 1812 case size component uses a C0G dielectric known for outstanding thermal stability and low electrical losses, ensuring stable performance over a wide temperature range between -55°C to +125°C.

The capacitor features a stacked construction with a flexible termination system that incorporates a silver epoxy layer, which significantly reduces the effects of board flex stress and prevents flex cracks that could cause failure modes such as low insulation resistance or short circuits. These attributes make it highly reliable for critical applications.

Certified to AEC-Q200 automotive standards, this capacitor meets the demanding quality requirements for automotive electronics, industrial controls, and medical equipment. It is ideal for use in power supplies, LCD fluorescent backlight ballasts, HID lighting, telecom devices, LAN/WAN interfaces, and various analog and digital modem circuits.

Additional design advantages include low equivalent series resistance (ESR) and equivalent series inductance (ESL), resulting in superior performance in high-frequency and ripple current-intensive environments. The component is supplied in tape and reel packaging, supporting high-volume automated SMT assembly manufacturing.

Capacitance: 1 nF ideal for filtering and timing circuits. Voltage Rating: 1kV dc for high-voltage applications. Package/Case: 1812 size fits compact circuit designs. Dielectric Type: C0G for high stability and low loss.

Tolerance: ±5 % ensuring tight capacitance accuracy. Operating Temperature: -55°C to +125°C for wide environmental use. Series: X FT-CAP with flexible termination to reduce mechanical stress. Termination: Solder type for surface mounting.

Standards: IPC-7351, EIA 624, EIA 556, J-STD-020, EIA 481, AEC-Q200 compliant.

This component is broadly applicable in industrial, automotive, telecom, laboratory, and commercial electronics settings where reliable Multilayer Ceramic Capacitors are essential. Choose KEMET MLCCs for high-performance and durable passive components. Explore EnvMart for a wide selection of advanced capacitors.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The capacitance value of this model is 1 nanofarad (nF).

This capacitor has a voltage rating of 1kV dc, making it suitable for high-voltage applications.

The tolerance of this capacitor is ±5%, ensuring tight capacitance accuracy.

This model has a length of 4.5mm, a width of 3.2mm, and a height of 1.4mm.

It uses a C0G dielectric, which provides excellent thermal stability and low electrical losses.

The operating temperature range is from -55°C to +125°C, allowing it to perform in harsh environmental conditions.

It is supplied in tape and reel packaging, which supports high-volume automated SMT assembly manufacturing.

This capacitor features a stacked construction, which contributes to its compact design.

It is certified to the AEC-Q200 automotive standard, ensuring high reliability for automotive applications.

The termination type is solder, designed for surface mounting on PCBs.

This model is suitable for applications in power supplies, telecom equipment, automotive, industrial, and medical devices.

Low equivalent series resistance (ESR) and equivalent series inductance (ESL) enhance performance in high-frequency applications and ripple current-intensive environments.
