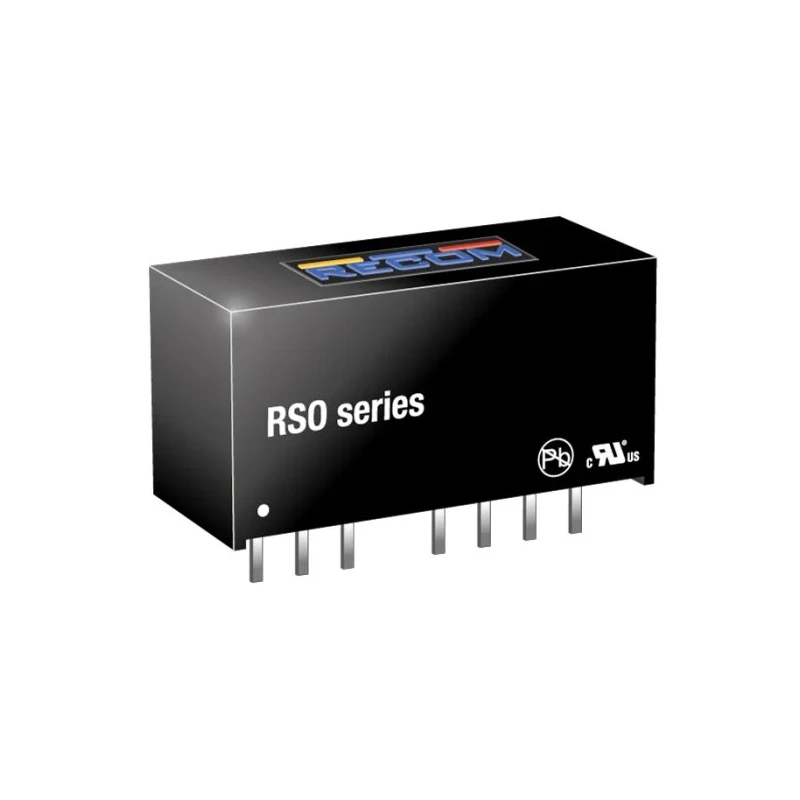

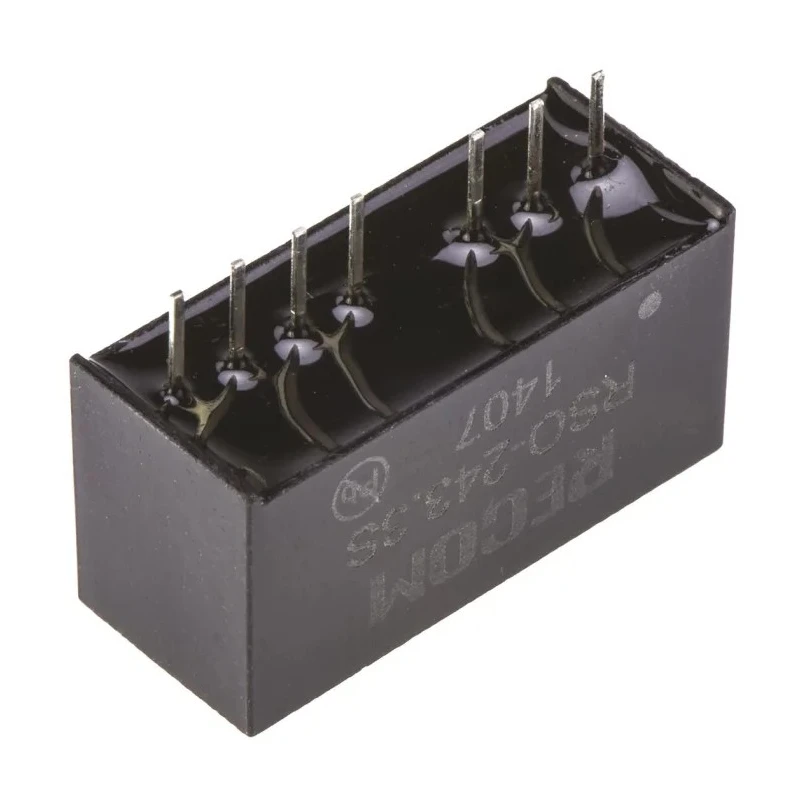

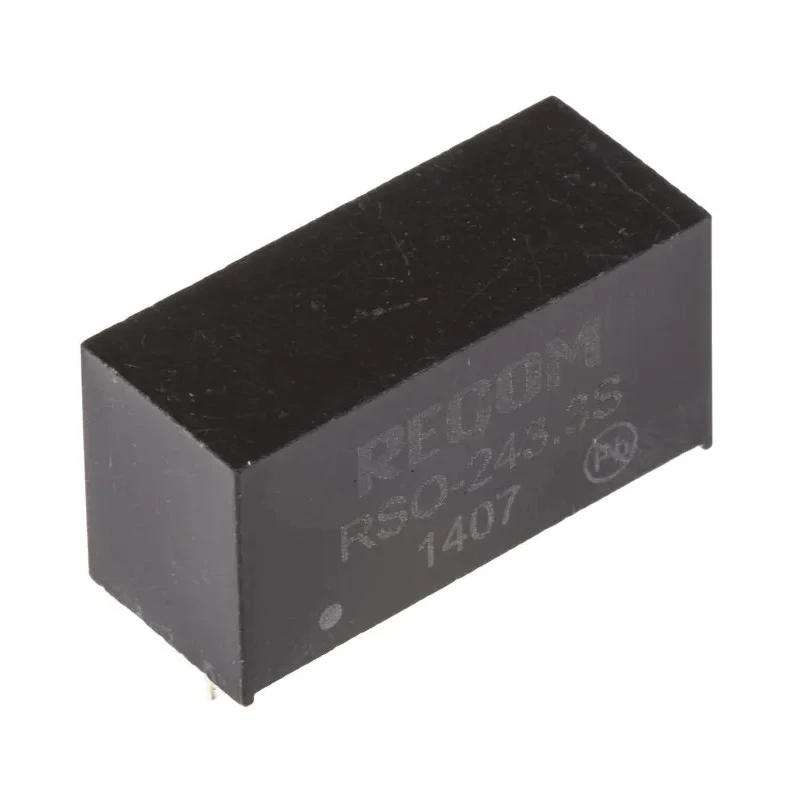

Recom DC/DC Converter 3.3V 300mA 18-36V Input 1W Through Hole SIP-8 Package RSO-243.3S

Recom RSO-243.3S DC/DC Converter is a high-quality power supply module offering a stable output voltage of 3.3V at 300mA current with a maximum output power of 1 watt. Its wide input voltage range of 18V to 36V allows it to adapt to various industrial and electronic applications where voltage conversion and regulation are critical. Packaged in a compact SIP-8 through hole format, this converter provides convenient mounting and integration into printed circuit boards.

Operating efficiently at around 70%, this DC/DC converter supports continuous short-circuit protection, safeguarding your system from electrical faults. The unit boasts an isolation voltage of 1kV, ensuring safety in electrical systems by preventing unintended current paths.

Its operational temperature range from -40°C up to 85°C makes it suitable for use in harsh environments, including industrial manufacturing processes, portable device power supplies, and domestic appliances. The compact size with dimensions 21.8mm in length, 9.2mm in width, and 11.1mm in depth allows it to fit in constrained spaces without sacrificing performance.

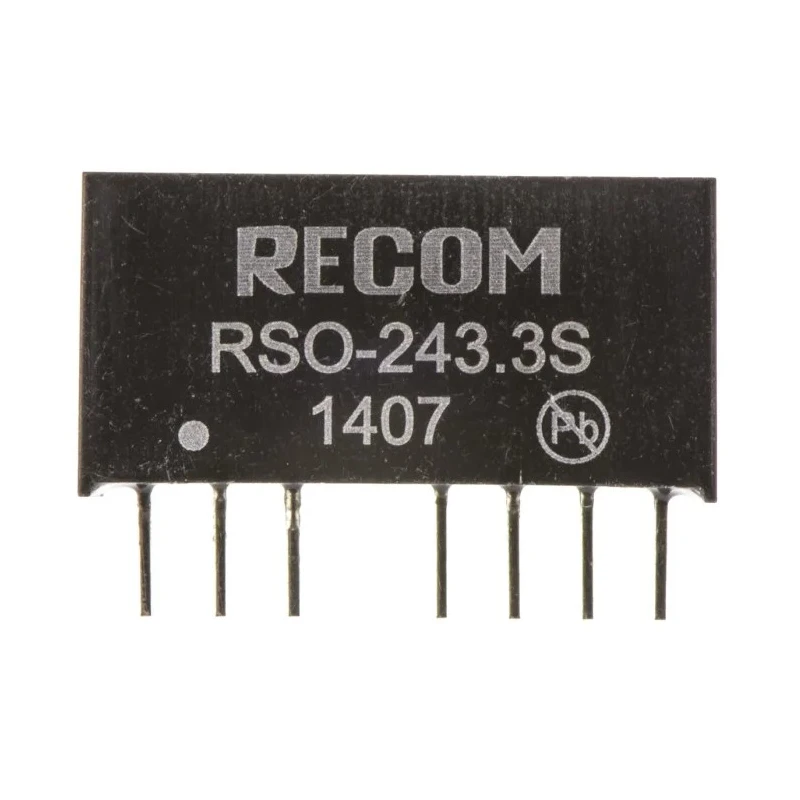

Additional features include a low quiescent current consumption of 25mA which helps in reducing energy waste when the converter is not actively supplying power. The clear pin marking on the front side facilitates easy identification and connection of the 8 pins, streamlining installation and maintenance.

Wide input voltage range between 18V and 36V provides flexibility for various power sources. Efficiency ranging from 68% to 72% ensures energy-efficient operation. Compact SIP-8 package with through-hole mount enhances compatibility with many PCB designs.

Continuous short-circuit protection prevents damage under fault conditions. Low maximum ripple voltage of 50mV minimizes noise in output power. Operating temperature range from -40°C to +85°C supports versatile environments.

1kV isolation voltage improves system safety and reduces interference. Extensive MTBF rating of over 1.68 million hours ensures reliable performance over time.

This Recom DC/DC Converter is a reliable and efficient solution ideal for electronic power supplies, industrial electronics, manufacturing equipment, and portable device power regulation. It fits well in environments requiring robust, compact, and stable DC power conversion.
