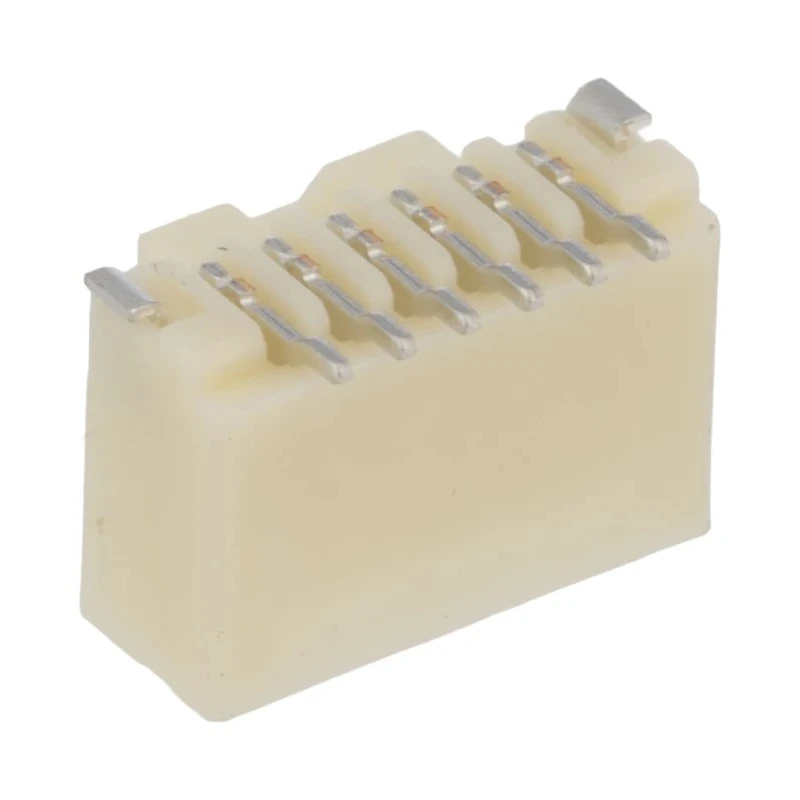

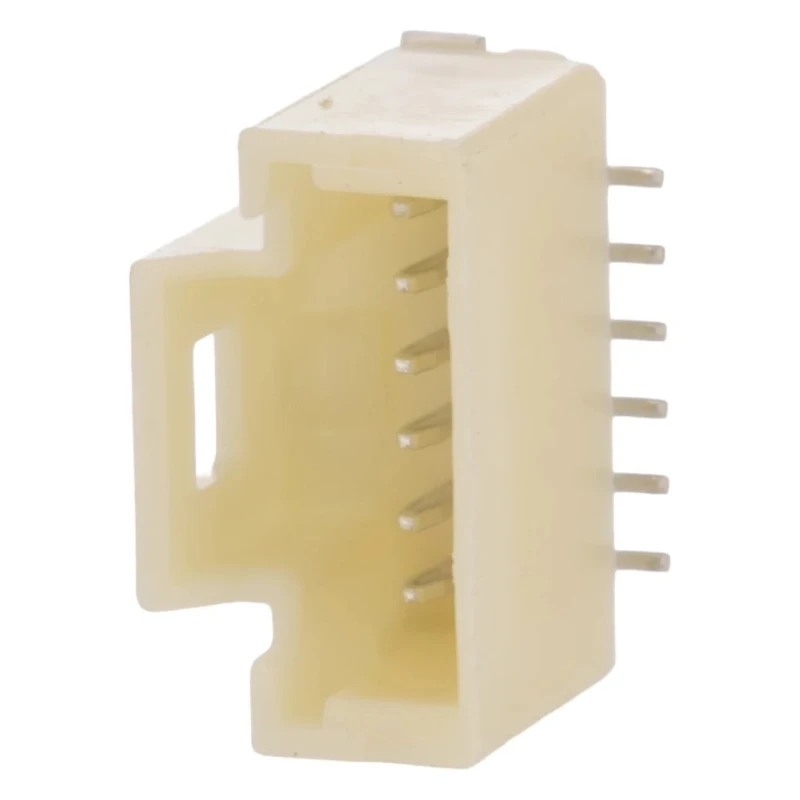

Molex 501331 Series Vertical Surface PCB Header, 6 Contact, 1 mm Pitch, 1 Row, Shrouded 501331-0607

The Molex 501331 Series Vertical Surface PCB Header 501331-0607 is engineered for high-density wire-to-board interfacing applications. Featuring a 1.00 mm pitch and a single row of six contacts, its compact design optimizes circuit board space while maintaining robust connectivity.

Its vertical orientation combined with surface mount technology supports automated assembly lines, enhancing production efficiency. The shrouded housing safeguards against misalignment and reverse mating, securing reliable electrical connections.

Contacts are manufactured from phosphor bronze, plated with tin to ensure excellent conductivity and corrosion resistance. This connector is rated for a maximum current of 1 Amp per contact and a maximum voltage of 100V, suitable for a broad range of electronic applications.

The nylon housing material offers durability and supports up to 30 mating cycles, making it suitable for industrial environments. Operating temperature ranges from -40°C to 105°C, allowing use under diverse climatic conditions.

Wire-to-board connector system for precise signal transmission. Surface mount type with solder termination for secure PCB installation. Polarised male contacts prevent incorrect assembly. Compact 1mm pitch suitable for dense circuit designs.

Robust design backing applications in automation and control panels.

This PCB header is widely applicable in mechanical assemblies, electronic devices, and customised circuit boards requiring dependable connections. Its design facilitates efficient integration within industrial automation systems and control equipment.
