Essentra Nylon PCB Support 9.5 mm Height 19.7 mm Overall Height for 4 mm PCB Hole LCBSB-6-01A-RT

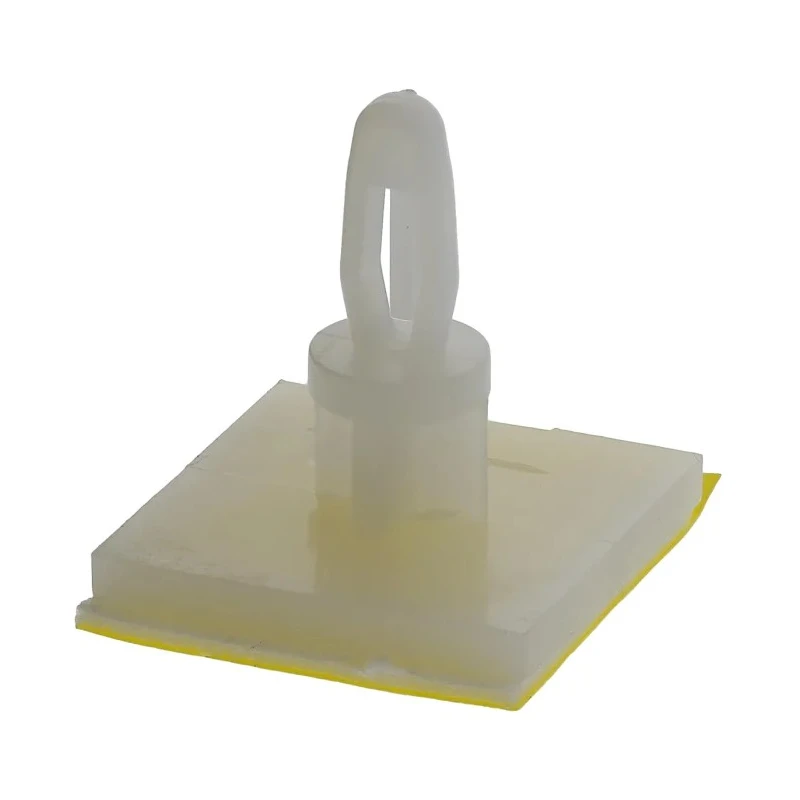

Essentra LCBSB-6-01A-RT nylon PCB support is engineered for precise mechanical support and spacing of printed circuit boards in electronic assemblies.

Featuring a 9.5 mm height with an overall height of 19.7 mm, this support ensures adequate clearance and positioning for components, facilitating effective PCB mounting and protection from substrate contact.

This component is crafted from high-quality durable nylon material, which provides electrical insulation as well as mechanical strength. It is designed to fit PCB holes with a diameter of 4 mm and accommodate PCB thickness up to 1.57 mm.

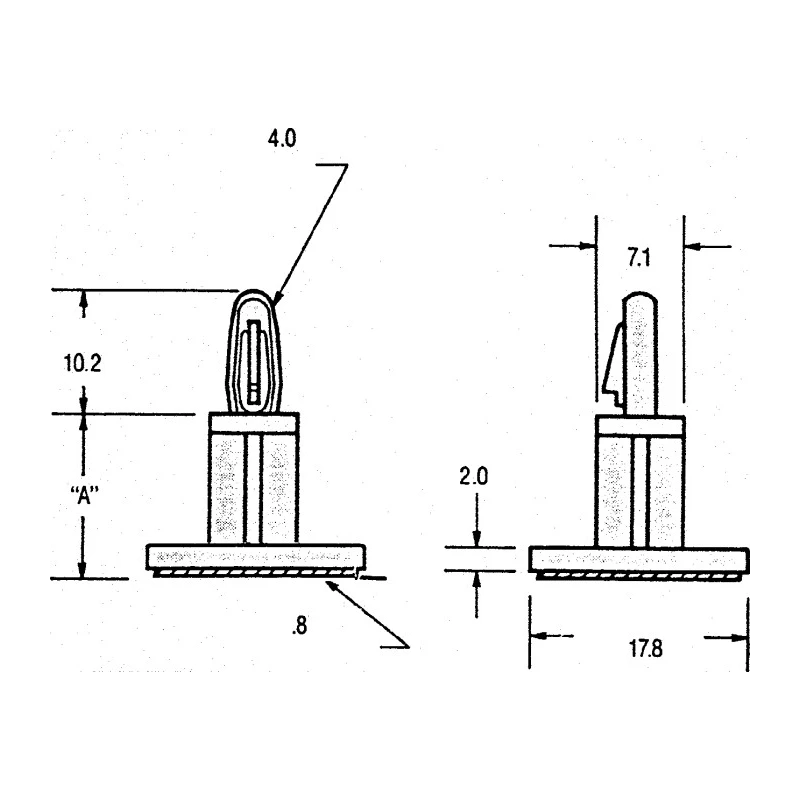

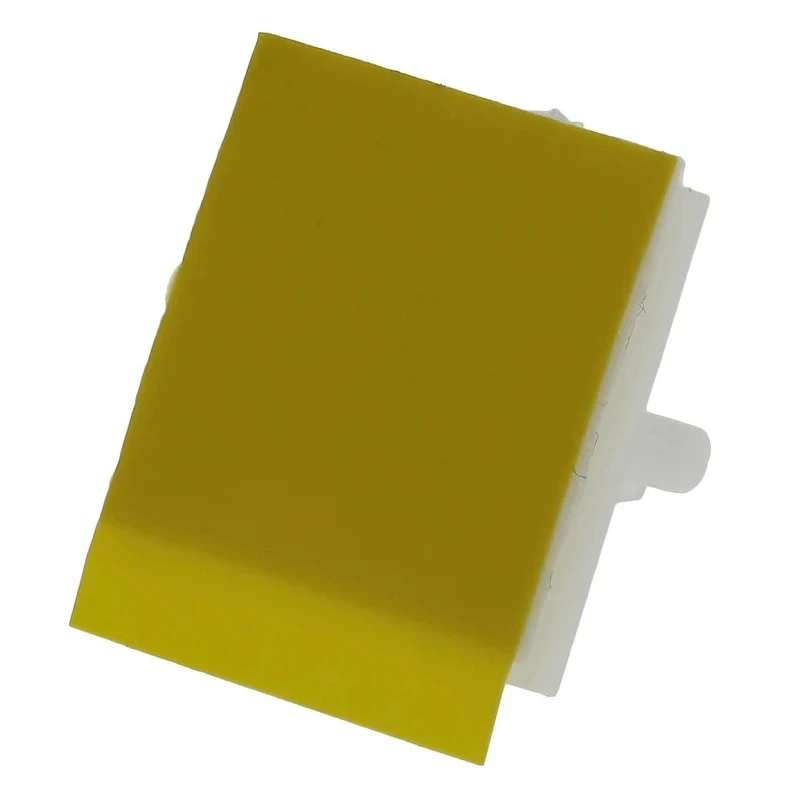

The support includes a base measuring 17.8 mm by 17.8 mm with an adhesive layer thickness of 0.8 mm, allowing reliable and stable fixing onto surfaces. Compliant with RoHS standards, this product is manufactured in the United Kingdom, meeting industrial and environmental regulations.

Durable nylon material ensures mechanical support and electrical insulation. Overall height of 19.7 mm provides proper clearance for PCB components. Fits PCB hole diameter of 4 mm and thickness of 1.57 mm. Support base is 17.8 mm long and wide with adhesive base of 0.8 mm thickness.

RoHS compliant, suitable for electronic assembly applications. This PCB support is widely used in electronics manufacturing, laboratory prototyping, and cleanroom assembly processes requiring precise and reliable PCB mounting solutions.
