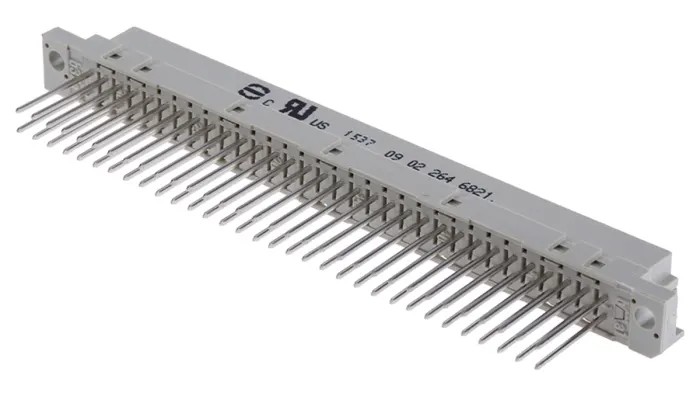

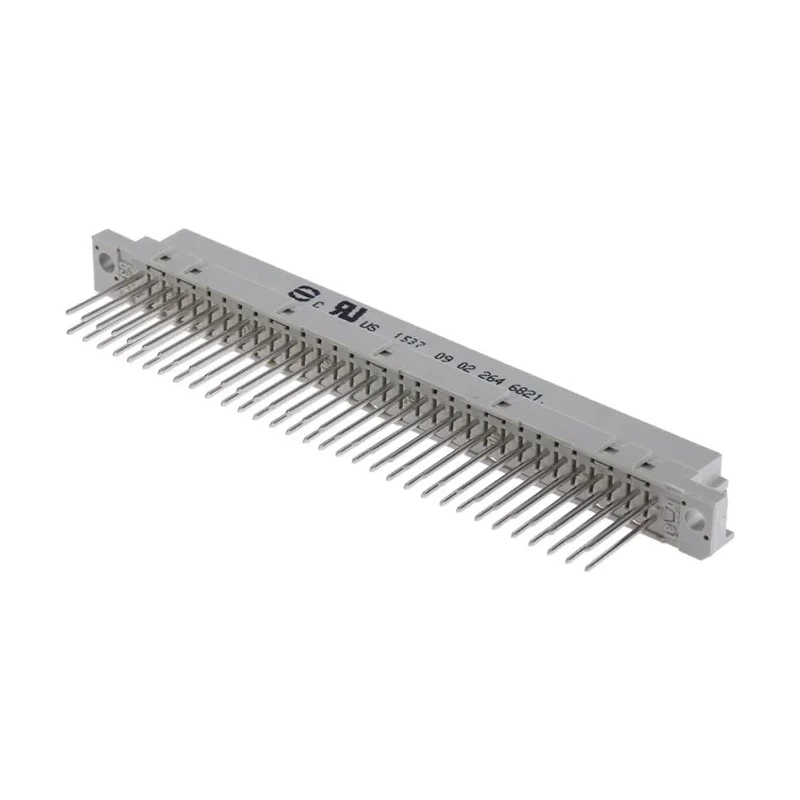

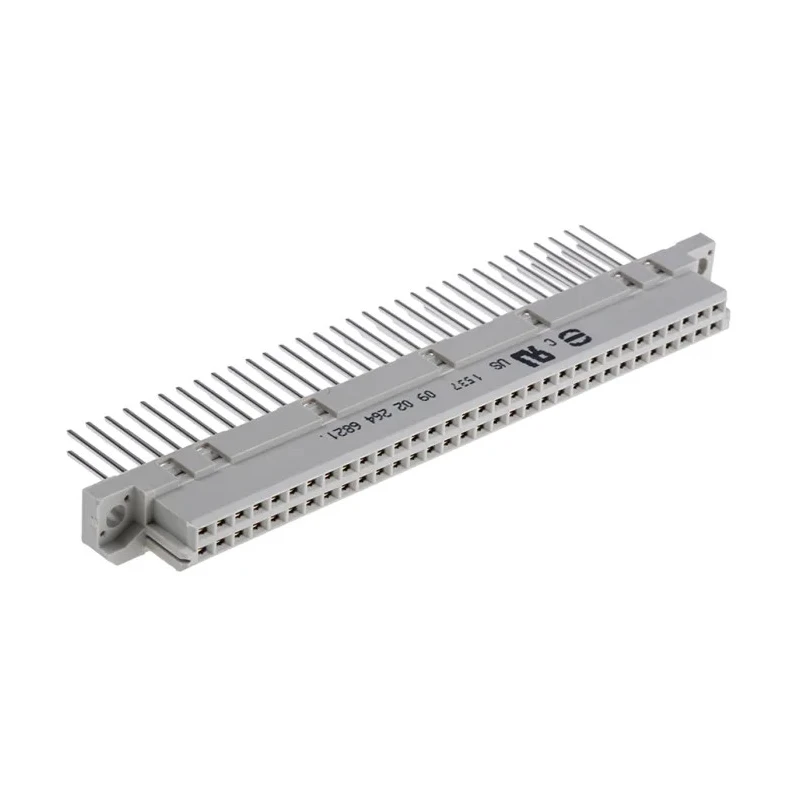

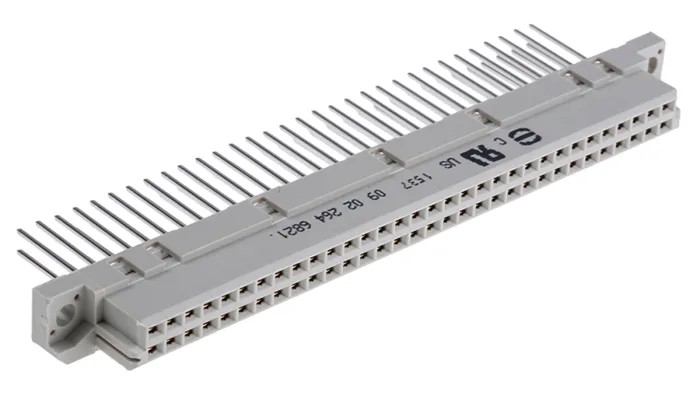

HARTING DIN 41612 64 Way 2.54 mm Pitch Type B Through Hole Wire Wrap Class C2 2 Row Female Connector 09022646821

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch Type B Through Hole Wire Wrap Class C2 2 Row Female Connector 09022646821

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch Type B Through Hole Wire Wrap Class C2 2 Row Female Connector 09022646821
Brand: HARTING
SKU: 117860
Price: 20.22 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Wire Wrap
Maximum Operating Temperature	125°C
Sub Type	Type B
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B

Key Features

Features 64 female contacts arranged in 2 rows for efficient signal transmission.
Designed with 2.54 mm pitch and wire wrap termination for precise soldering.
Class C2 ensures high durability and reliable mating cycles.
Capable of handling a current of 2A per contact with gold over nickel plating.
Operates reliably between -55°C and 125°C in harsh environments.
Constructed with copper alloy contacts and polybutylene terephthalate housing for robustness.
Through hole mount type ensures strong PCB attachment.
Maximum contact resistance is 20 milliohms ensuring minimal signal loss.

Product Description

HARTING 09022646821 DIN 41612 Connector is a 64-way female connector with a 2.54 mm pitch designed for PCB applications requiring reliable signal connections.

This type B connector features wire wrap termination and is mounted through hole, making it suitable for durable electronic assemblies. The class C2 specification provides a robust solution with enhanced mating cycles and resistance to wear.

The connector supports a current rating of 2A per contact and operates efficiently across a wide temperature range from -55°C to 125°C. Contacts are plated with gold over nickel to ensure excellent conductivity and corrosion resistance, while the copper alloy contacts deliver consistent electrical performance.

The housing is made of polybutylene terephthalate, a thermoplastic resin reinforced with glass fiber, providing mechanical strength and thermal stability. This connector is ideal for industrial, electronic manufacturing, and communication equipment assemblies where reliable signal integrity is critical.

Features 64 female contacts arranged in 2 rows for efficient signal transmission. Designed with 2.54 mm pitch and wire wrap termination for precise soldering. Class C2 ensures high durability and reliable mating cycles. Capable of handling a current of 2A per contact with gold over nickel plating.

Operates reliably between -55°C and 125°C in harsh environments. Constructed with copper alloy contacts and polybutylene terephthalate housing for robustness. Through hole mount type ensures strong PCB attachment. Maximum contact resistance is 20 milliohms ensuring minimal signal loss.

Suitable for backplane and rack connector applications in electronics. Compatible with DIN 41612 series and meets industry standards. This product adheres to DIN 41612 series standards and is suitable for use in industrial electronic components, power connectors, and backplane connector applications.
