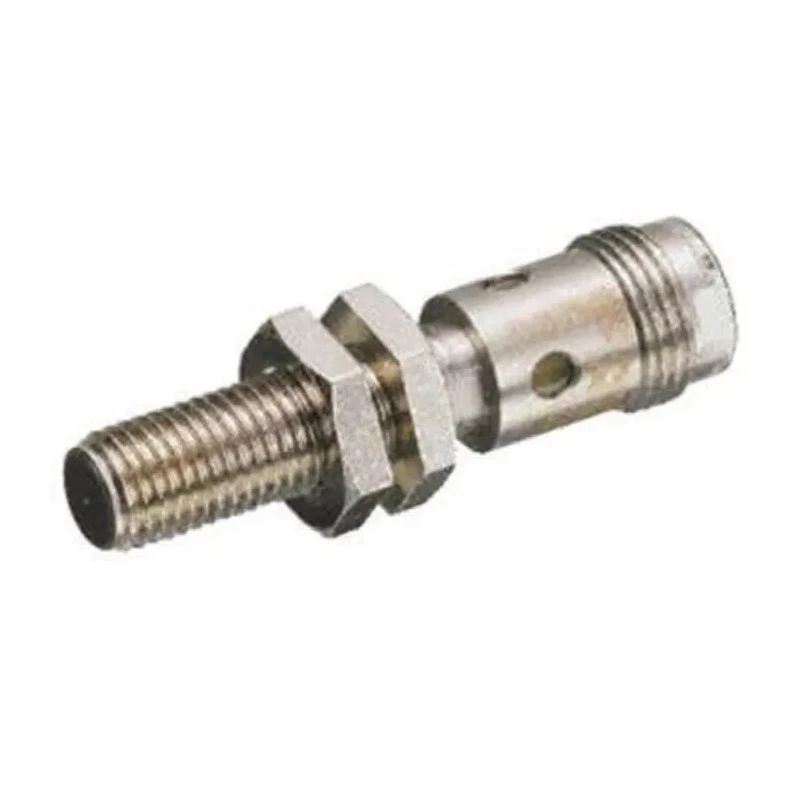

Omron Threaded Barrel Inductive Proximity Sensor M12 24V DC 4mm Detection Range 200mA Output NPN E2A-S12KS04-M1-C1

Omron E2A-S12KS04-M1-C1 is a high-performance threaded barrel inductive Proximity Sensor with an M12 thread size, designed to detect ferrous metal objects within a 4 mm sensing range. It operates reliably in industrial environments, powered by a 24V DC supply with a maximum switching current of 200mA and supports AC voltage operation up to 240V for versatility.

Constructed with a stainless steel housing and PBTP sensing face, this sensor offers robust mechanical strength and resistance against harsh operating conditions. The sensor body is compact with dimensions of 48 mm length and 17 mm width, enabling flush mounting with its M12 flush mount design.

The device features a shielded design that minimizes false triggering from nearby metallic objects, providing precise detection. Its output is of NPN type, compatible with many control systems, and it operates at frequencies up to 1 kHz ensuring rapid signal response in automation lines.

It is IP67 rated according to IEC60529 standards, guaranteeing full protection against dust ingress and water immersion, making it suitable for demanding industrial, manufacturing, assembly, and material handling applications. The operational temperature range of -40°C to 70°C ensures stable performance under extreme temperature variations.

Additional safety features include short circuit and reverse polarity protection to enhance operational safety and device longevity. The incorporated LED indicator aids in easy sensor status monitoring during installation and maintenance.

Operates with a 24V DC power supply and supports up to 240V AC operation. Maximum switching current is 200mA, suitable for typical control circuits. Thread size M12 with flush mount body style for secure installation. Sensor body made of stainless steel with PBTP sensing face material.

Detection distance of 4 mm optimized for ferrous materials. Rated IP67 for superior protection in industrial settings. Switching frequency up to 1 kHz enabling fast detection cycles. Wide temperature operating range from -40°C to 70°C.

NPN output type with shielding minimizes interference impacts. Includes protection against short circuit and reverse polarity.

This sensor is ideal for use in industrial automation environments including manufacturing plants, conveyor systems, robotics, and material sorting where accurate proximity sensing is critical for process control.

Explore the Omron range of sensors at EnvMart for more solutions tailored to industrial detection needs.
