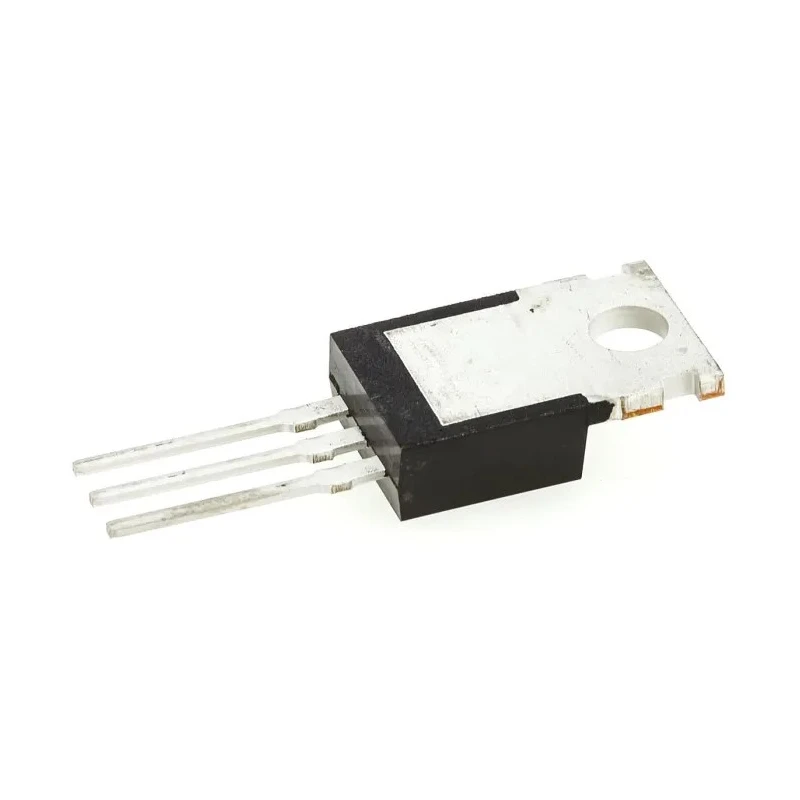

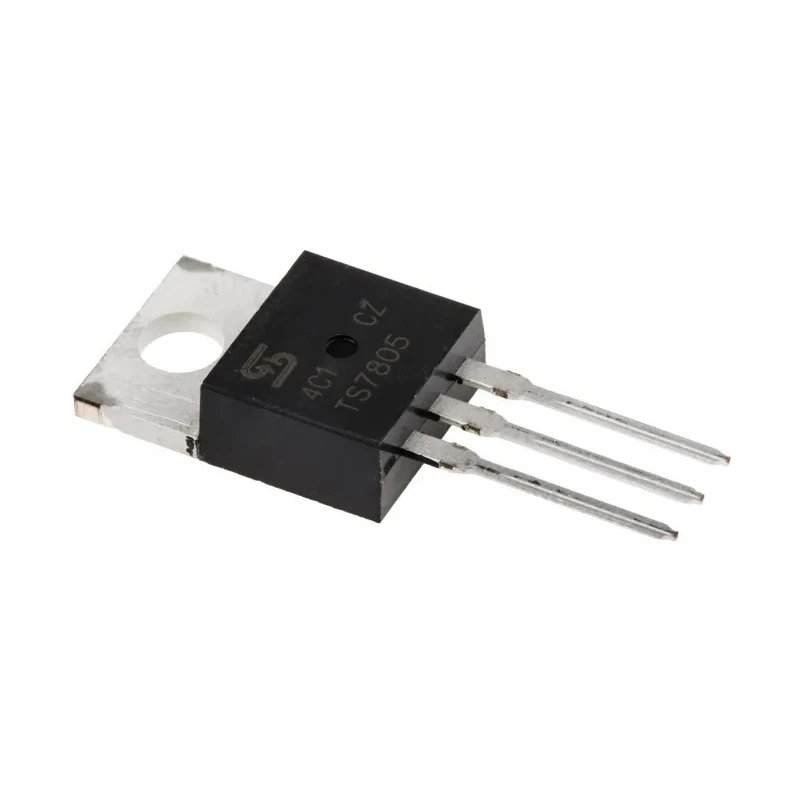

Taiwan Semiconductor Voltage Regulator 35V TO-220 3-Pin TS7805CZ COG
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Regulators Taiwan Semiconductor TS7805CZ COG, Voltage Regulator 35V TO-220 3-Pin |
| Brand | Taiwan Semiconductor |
| Height | 9.02mm |
| Length | 10.5mm |
| Model | TS7805CZ COG |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Series | TS78xxC |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 4.2mA |
| Pin Count | 3 |
Key Features
- Operates at a maximum input voltage of 35V ensuring stable regulation.
- Features low quiescent current of 4.2mA improving energy efficiency.
- Compact TO-220 form factor with 3 pins suitable for through-hole mounting.
- Positive polarity designed for standard voltage regulation applications.
- Maximum operating temperature of 125°C for robust performance in demanding environments.
- Dedicated series TS78xxC linear voltage regulator from Taiwan Semiconductor.
- Measures 10.5mm in length, 9.02mm in height, and 4.83mm in width for easy PCB integration.
- Ideal for electronic circuits requiring precise voltage regulation.
Product Description
Taiwan Semiconductor TS7805CZ COG is a durable and efficient 35V linear voltage regulator in a TO-220 3-pin package designed for through-hole mounting. It provides positive polarity voltage regulation with a low quiescent current rating of 4.2mA, making it suitable for power-sensitive applications.
The device operates reliably at a maximum input voltage of 35V and withstands maximum operating temperatures up to 125°C. Its compact dimensions of 10.5mm length, 9.02mm height, and 4.83mm width facilitate integration into various electronic designs.
This TS78xxC series voltage regulator from Taiwan Semiconductor is engineered for industrial and commercial electronic circuits requiring consistent voltage output and robust performance.
The positive polarity and linear regulation characteristics allow easy implementation in power management and electronic component assemblies. Its standard TO-220 package simplifies mounting on PCBs and boards using through-hole technology.
Manufactured in Taiwan, Province Of China, this component meets quality standards and provides reliable performance for applications in consumer electronics, industrial equipment, laboratory instruments, and other electronic devices.
Operates at maximum input voltage of 35V and max temperature of 125°C. Low quiescent current of 4.2mA ensures minimal power loss. Compact TO-220 3-pin package designed for through-hole mounting. Robust voltage regulator solution for precise power supply control.
Compatible with a wide range of industrial and commercial electronics. For more industrial-grade electronic components, browse the Semiconductor and Voltage Regulators categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 35V.
It has a low quiescent current rating of 4.2mA, which improves energy efficiency.
This voltage regulator can operate at a maximum temperature of 125°C.
The dimensions are 10.5mm in length, 9.02mm in height, and 4.83mm in width.
It is designed for through-hole mounting, making it suitable for PCB integration.
This model features positive polarity, designed for standard voltage regulation applications.
This voltage regulator is suitable for industrial and commercial electronic circuits requiring consistent voltage output.
It is manufactured in Taiwan, Province of China.
This voltage regulator has 3 pins.
The low quiescent current of 4.2mA helps reduce power loss, making it more efficient for power-sensitive applications.
